Rab T8-9-24G-840-DE-BYP LED Lamp 9W 2 FT

Product Description

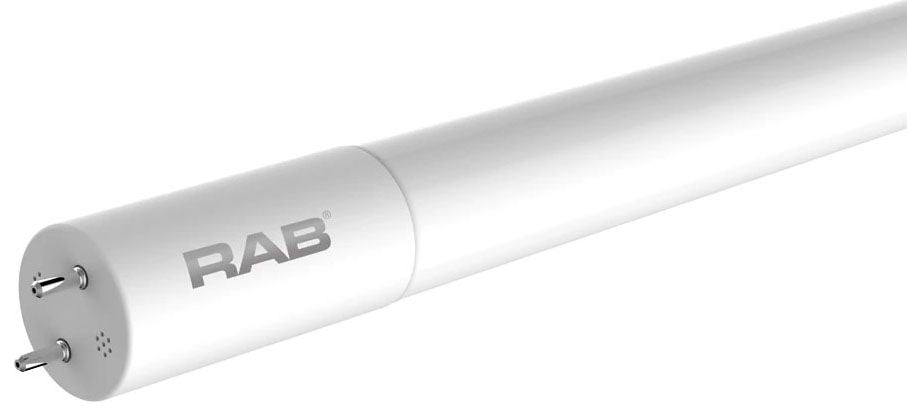

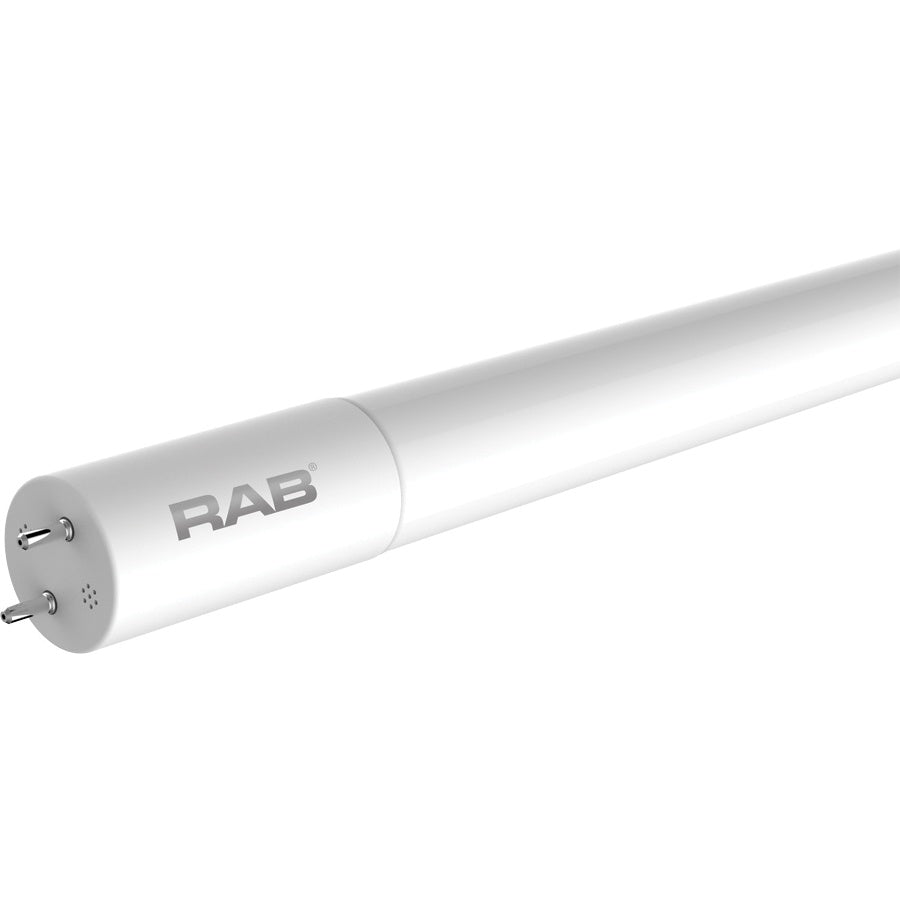

The RAB T8-9-24G-840-DE-BYP LED lamp is a non-dimmable, double ended, linear lamp. Operating at 9W and a voltage rating of 120 to 277V AC, this lamp emits 1150 Lumens of cool white light. It is suitable for both enclosed and open fixtures and replaces conventional fluorescent T8 and T12 linear tubes.

• Non-Dimmable, Double Ended, Linear LED lamp
• Rated for 120 to 277 Volt AC 50/60 Hertz
• Suitable for Enclosed and Open Fixtures

Product Highlights

This 9W LED lamp provides an energy-efficient lighting solution with a long lifespan of 50,000 hours and is RoHS compliant.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T8-9-24G-840-DE-BYP
• Country of Origin: China

Technical Specifications

• Type: Type B
• Voltage Rating: 120 - 277 Volt
• Wattage: 9 Watt
• Lumens: 1150 Lumens
• Shape: T8 Linear
• Base Type: G13
• Length: 23-3/16 Inch
• Diameter: 1 Inch
• Color Rendering Index (CRI): 82
• Color Temperature: 4000K
• Average Life: 50000 Hour
• Beam Angle: 210
• Operating Temperature: -20 to 45 deg C
• Installation Type: Type B, Double Ended wiring
• Equivalent Wattage: 17W Fluorescent
• Efficacy: 127.8 Lumen per Watt
• Frequency Rating: 50/60 Hz
• Dimmable: No
• Start Type: Instant
• Total Harmonic Distortion: <20%
• Power Factor: 0.9
• Input Voltage: 120-277V AC
• Operating Frequency: 50/60Hz
• UL Recognized: Yes
• UL Classified: Yes
• NSF Listed: Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
• Certification Model Number: T8-9-24G-840-DE-BYP
• Application: Suitable for damp locations and totally enclosed fixtures.
• Bulb Shape: T8
• Standards: UL Listed, cRUus Listed, DLC Listed, CEC Status, Meets NSF/ANSI Standards For Use in Food Zone (non contact), Splash and Non-Food Zones, FCC Compliant, RoHS Compliant
• Bulb Overall Shape: Linear Tubular
• Bulb Base Group: Bi-Pin Double Ended
• Bulb Base: 2-Pin G13 Medium Double Ended
• RoHS Flag: Yes
• Energy Star Flag: No
• Input Wattage: 9W
• L70 Lifespan: 50,000 Hours
• Wattage Equivalency: 17W Fluorescent
• Finish: Frosted
• For Use Outdoors in Open Fixtures: No
• Color Accuracy (CRI): 82 CRI
• THD: <20%
• Dimming: No
• Lamp Base Type: G13 Medium Bi-Pin
• Lamp Type: LED
• Fixture Type: Open/Closed
• Lamp Finish: Frosted
• Color: Cool White
