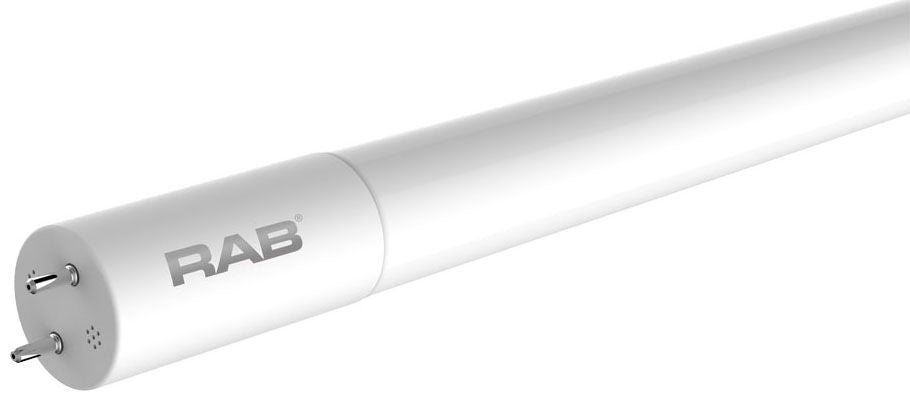

Rab T8-14-48G-840-SD-BYP LED LMP 14 Watt

Product Description

The RAB T8-14-48G-840-SD-BYP LED lamp is a 14 watt, non-dimmable, single/double ended, linear lamp. This LED lamp has an intensity of 1800 lumens and a color temperature of 4000K. It is suitable for use in enclosed and open fixtures and is a replacement for 32 watt fluorescent tubes.

• Type B ballast bypass operation
• Capable of single or opposing-ended wiring for maximum in-field flexibility, and works on shunted or non-shunted sockets
• Internal driver eliminates the need for external ballasts or drivers

Product Highlights

This 48" LED lamp is energy efficient and environmentally friendly, with a rated life of 50,000 hours. It provides instant-on functionality with no flicker or hum.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T8-14-48G-840-SD-BYP

Technical Specifications

• Brand: RAB
• Manufacturer Part Number: T8-14-48G-840-SD-BYP
• Lamp Type: LED
• Lumens: 1800 Lumens
• Lumens Per Watt: 128.57
• Wattage: 14 W
• Input Voltage: 120-277V
• Color Temperature: 4000 K
• Lamp / Base Type: G13 Medium Bi-Pin
• Rated Hours: 50,000 Hours
• Beam Angle: 240 deg
• Equivalent: 32W Fluorescent
• Min Operating Temp: -4 Degrees F
• CRI: 82
• Operating Temp: -4 to 104 F
• Special Features: Enclosed Fixture Rated
• Length: 47-3/16 Inch
• Diameter: 1"
• Average Life: 50000 hr
• Ballast Type: Internal Bypass
• Color Rendering Index (CRI): 82
• Fixture Type: Open/Closed
• Lamp Base Type: G13 Medium Bi-Pin
• Lamp Finish: Frosted
• Shape: T8 Linear
• Start Type: Instant
• Type: Type B Non-Dimmable Single/Double Ended
• Voltage Rating: 120 to 277 VAC
• Installation: Single and Double Ended, Type B Ballast Bypass
• Operating Temperature: -20 to 45 Deg C
• Efficacy: 128.6 Lumen per Watt
