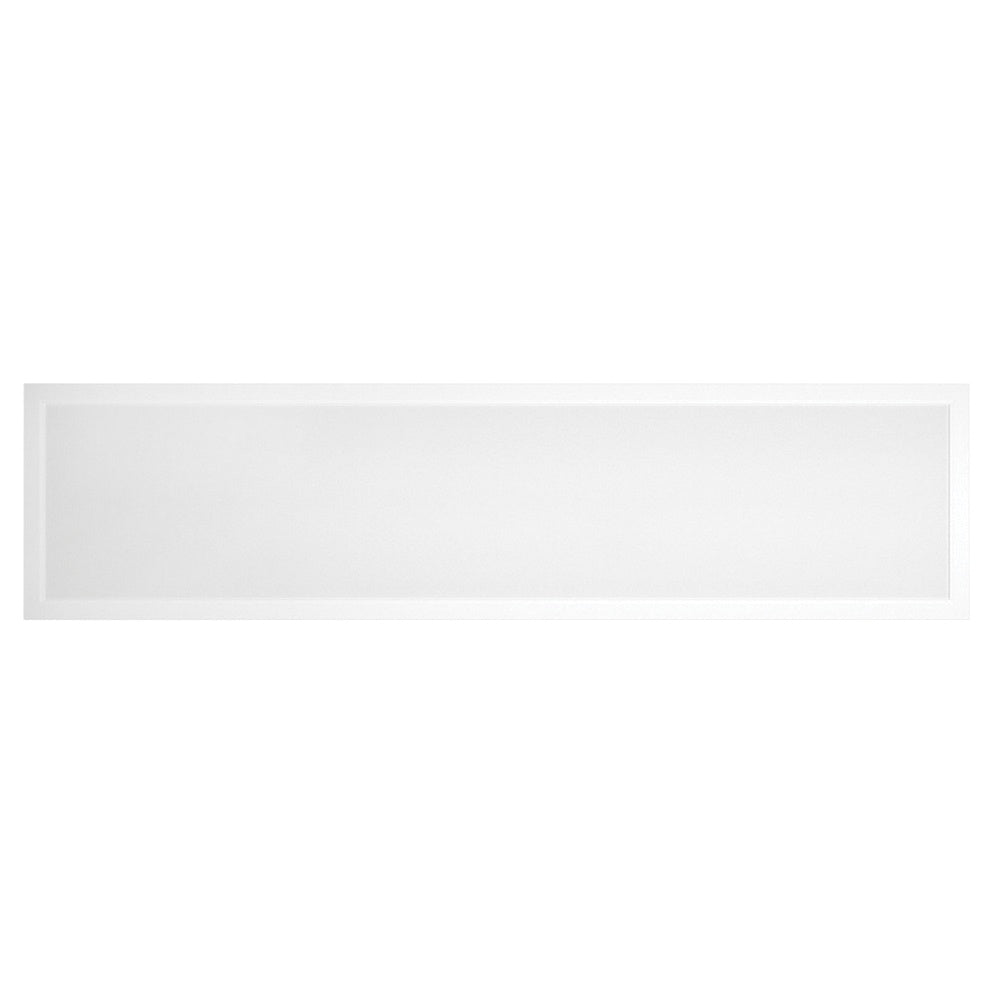

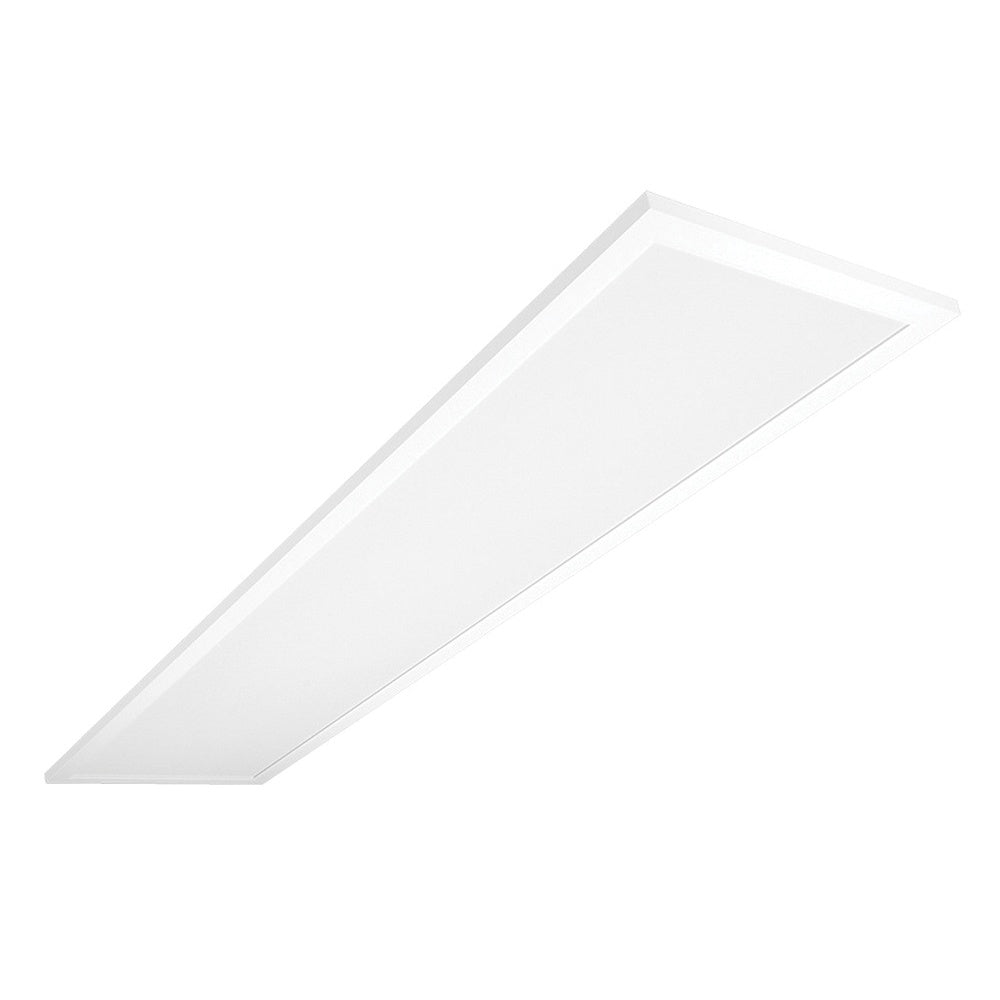

Rab T34FA-1X4 T34 Field-Adjustable Panels & Troffers, LED Lamp, 120 to 277 V, 1 x 4 ft

Product Description

The RAB T34FA-1X4 T34 is a field-adjustable LED panel suitable for indoor applications. Operating between 120 to 277 V, it features a galvanized steel housing and includes dimming control wiring for 0-10V dimming systems. The LED lamp provides light output from 113.2 to 127.8 lm/W and delivers between 2137 to 4089 lumens. Color temperature is adjustable between 3500K, 4000K, and 5000K.

• Field-adjustable wattage: choose between 20W/30W/40W
• Adjustable color temperature: 3500K/4000K/5000K
• Suitable for indoor applications

Product Highlights

The RAB T34FA-1X4 is a versatile LED panel with adjustable settings for customized lighting in commercial and office environments.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T34FA-1X4
• Country of Origin: Mexico

Technical Specifications

• Mounting Type: Recessed
• Average Life: 50000 hr
• Type: Field-Adjustable
• Amperage Rating: 0.17, 0.10, 0.09, 0.08, 0.25, 0.15, 0.13, 0.11, 0.34, 0.20 A
• GTIN: 00192552014267
• Light Output: 113.2 to 127.8 lm/W
• Input Voltage: 120-277V
• Lamp Wattage: 20, 30, 40 W
• Housing Material: Galvanized Steel
• Color Temperature: 3500, 4000, 5000 K
• Color Rendering Index (CRI): 82 to 84 CRI
• Lumens: 2137 to 4089 Lumens
• Ceiling Opening: 1 x 4 ft
• Lamp Type: LED
• Lamp Base Type: Recessed into T-Grid Ceiling
• Series: T34
• Ballast Type: 0 to 10 V Dimmable
• Lens Type: Frosted Polystyrene
• Light Color: Warm Neutral
• Vendor SKU: T34FA-1X4
• UPC: 192552014267
• Application: Suitable for Indoor
• Standard & Approvals: BAA Compliant|CCEA Compliant|Mercury Free|RoHS|IESNA LM-79 and LM-80|UL Listed
• Manufacturer: RAB Lighting
• Includes: Dimming control wiring for 0-10V dimming systems
• Brand: RAB
• Catalog ID: RABT34FA1X4
• CRI: 80+
• Dimmable: 0-10V
• Rated Hours: 50,000 Hours
• Special Features: CCT Selectable, Wattage Selectable
• Length: 47.75"
• Width: 11.88"
• Fixture Wattage: 17.2 - 34.3 Watt
• Driver Type: Constant Current, 0 - 10 Volt Dimming
• Temperature Rating: 40 deg C
• Power Factor: 99.54% at 120 Volt, 94.8% at 277 Volt
• Frequency Rating: 50/60 Hz
• Environmental Conditions: Damp Location
