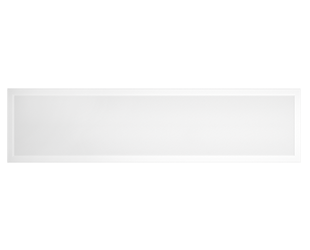

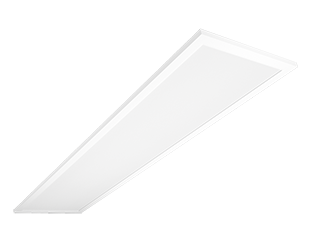

Rab T34FA-1X4/LCBS T34 Field-Adjustable Panels 37W 1 feetx4 feet

Product Description

The RAB T34FA-1X4/LCBS T34 Field-Adjustable Panels offer direct connection to the Lightcloud Blue mobile app via Bluetooth, eliminating the need for a gateway or hub. Configure on/off control, dim level, color temperature, schedules, scenes, and SmartShift features using a mobile device. This panel has an input wattage of 37W and delivers 4,600lm.

• Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
• Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more
• Tunable white 3000-6500K with smooth transition between color temperatures

Product Highlights

The T34 Field-Adjustable Panels are SmartShift Ready to sync with local sunrise/sunset for circadian lighting. It has a tunable white range of 3000K - 6500K.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: T34FA-1X4/LCBS
• Country of Origin: Cambodia

Technical Specifications

• Product Type: Back-lit Panel - Tunable White
• Wattage Equivalency: Equivalent to (2) F32T8 or (2) F28T5
• Input Wattage: 37W
• Lumens: 4,600lm
• Efficacy: 124lm/W
• L70 Lifespan: 50,000-Hour LED lifespan based on IESlm-70 results
• THD: <30%
• Power Factor: 0.95
• Dimmable: Yes via the Lightcloud Blue mobile app and devices. This luminaire will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
• Input Voltage: 120-277V AC
• Operating Frequency: 50/60Hz
• Input Current @ 120V (mA): 350mA
• Input Current @ 208V (mA): 200mA
• Input Current @ 240V (mA): 180mA
• Input Current @ 277V (mA): 160mA
• Operating Temperature: -22°F to 104°F (-30°C to 40°C)
• Flicker: <5%
• Beam Angle: 120°
• Color Temperature: Default: 3000K Adjustable using the Lightcloud Blue mobile app Tunable White 3000K - 6500K
• Color Accuracy (CRI): >80 CRI
• R9 Value: R9=7 @ 3000K; R9=15 @ 3500K; R9=19 @ 4000K; R9=22 @ 4500K; R9=23 @ 5000K; R9=20 @ 5700K; R9=13 @ 6500K
• Color Consistency: <4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Mounting: Recessed into T-grid ceiling. Surface and recessed mounting kits available for drywall ceilings.
• Size: 1'x4'
• Shape: Rectangle
• Finish: White
• Enclosure Material: Metal & Plastic
• Lens Finish: Frosted
• Listings: UL Lsted, UL Recognized, UL Classified
• Environment: Suitable for use indoors in dry and damp environments.
• IC Rated: No
• Air Tight: No
• Certification Model Number: T34FA-1X4/LCBS
• California Title 20 Compliant: No
• California Title 24 JA8 Compliant: No
• California Energy Commission (CEC) Status: Lawful for Sales in California
• CCEA Compliant: Luminaire Requirements used in Environmental Air Space per the electrical code specification of the City of Chicago
• NSF Listed: No
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
