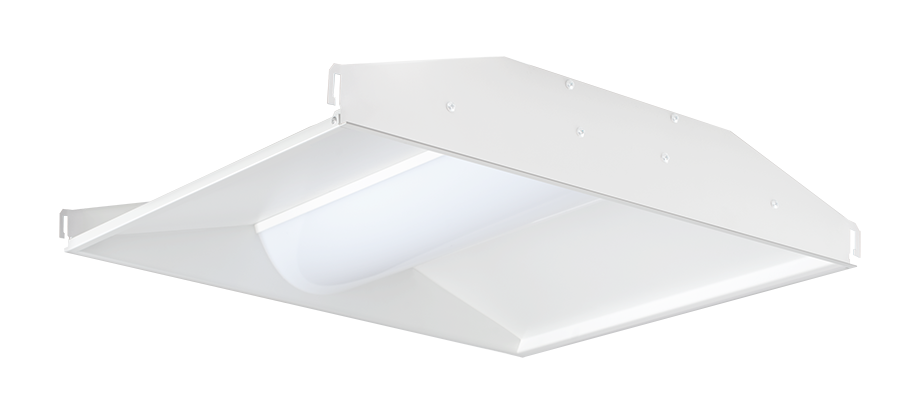

Rab SWISH2X2-19N/D10 Recessed Center Basket Troffer 19W

Product Description

The RAB SWISH2X2-19N/D10 is a recessed center basket troffer. This 19W LED troffer features a frosted polycarbonate lens that provides uniform light distribution and reduces glare. It is designed for easy and secure installation with integral T-grid clips.

• Ultra-efficient performance with DLC Premium listing
• Integral T-grid clips make installation easy and secure
• Suitable for direct contact with insulation

Product Highlights

The RAB SWISH troffer provides efficient LED performance in an economical design. It offers energy savings and reduced maintenance costs.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SWISH2X2-19N/D10
• Country of Origin: Cambodia

Technical Specifications

• Manufacturer: RAB Lighting
• Part Number: SWISH2X2-19N/D10
• Item model number: SWISH2X2-19N/D10
• Item Package Quantity: 1
• Type of Bulb: LED
• Included Components: SWISH2X2-19N/D10
• Batteries Required?: No
• MODEL: SWISH2X2-19N/D10
• BRAND: RAB Lighting
• SKU: 5872567
• UOM: each
• UPC: 19813472935
• 120V: 0.15A
• 208V: 0.10A
• 240V: 0.08A
• 277V: 0.07A
• Ambient Temperature: 104 degrees F
• Cold Weather Starting: The minimum starting temperature is -20C (-4F)
• Color Accuracy: 85 CRI
• Color temp: 4000
• DLC Listed: PAMSUTEM
• DLC Type: DLC Premium
• DLC Version: 5.1
• Driver: 0.07A
• Efficacy: 151 LPW
• Finish: White
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Height: 6.4
• Housing: Die-formed, 20-gauge, cold-rolled steel
• IC Rated: Suitable for direct contact with insulation
• L70 Lifespan: 100,000 Hours
• Lamp Info: LED
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Length: 27.7
• Lens: Snap-in, Frosted Polycarbonate
• Lifespan: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Lumens: 2,776 Lumen
• Mounting: Integral T-grid clips make installation easy and secure
• Patents: This design is protected by patents pending in US, Canada, China, Taiwan and Mexico
• Power Factor: 99.4% at 120V, 99.5% at 277V
• Rated Power: 19W
• Rated power: 18.3
• Reflector: High-reflectance, powder-coated finish, optimized for uniform light distribution
• Surge Protection: 2.5kV
• THD: 7.12% at 120V, 9.17% at 277V
• UL Listed: Suitable for damp locations
• Volume: 2.72
• Width: 26.5
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• Amperage: 0.08 Amp
• Applications: INDOOR
• Average Rated Life: 100,000 hr
• Color Rendering Index: 85
• Color Temperature: 4000 K
• Correlated Color Temp: 4,000 K
• Input Wattage: 18.3
• Lens Material: Snap-in, Frosted Polycarbonate
• Minimum Starting Temp: -20 degrees C
• Voltage: 120/277 Volt
• Wattage: 19
• Total Harmonic Distortion: 12.6% At 277V,13.1% At 120V
