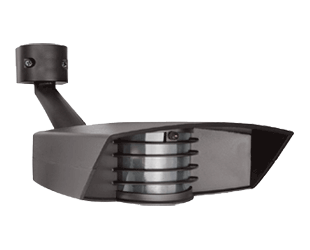

RAB STL110-BR Stealth Sensor Non-Fixture 120 VAC 8 A 1000 W

Product Description

The RAB STL110-BR Stealth Sensor is a photoelectric sensor designed for effective outdoor lighting management. It operates on 120 VAC, supporting up to eight amps and 1000 watts of incandescent lighting. The sensor has a viewing angle of one hundred and ten degrees and features a time delay that adjusts from five seconds to twelve minutes.

• Temperature compensation for adaptable performance
• Vandal resistant design with a color matched lens
• Can be wired in parallel for flexible installation

Product Highlights

This sensor minimizes false triggers through advanced detection logic and a comprehensive photoelectric control. The design includes a manual override that resets automatically at dawn.

Product Information

Standard Information

• Manufacturer: RAB Lighting
• Brand: RAB

Technical Specifications

• Voltage: 120V AC
• Electrical Power Consumption: 1W
• Surge Protection: Withstands up to 6000 volts
• Switching Capacity: 1000W incandescent @ 120 volts, 8 amps
• Detection Angle: 110°
• Maximum Recommended Look-Out Zone: 50'-0
• Construction: Precision die cast aluminum
• Warranty: 10-year sensor warranty
