Rab SR4/MVS/E Field adjustable LED strip 20/25/30/35/40 W (4 ft)

Brand: RAB
SKU: SR4/MVS
Availability: In Stock

Ships same day if ordered by 12 pm
$230.71
$230.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

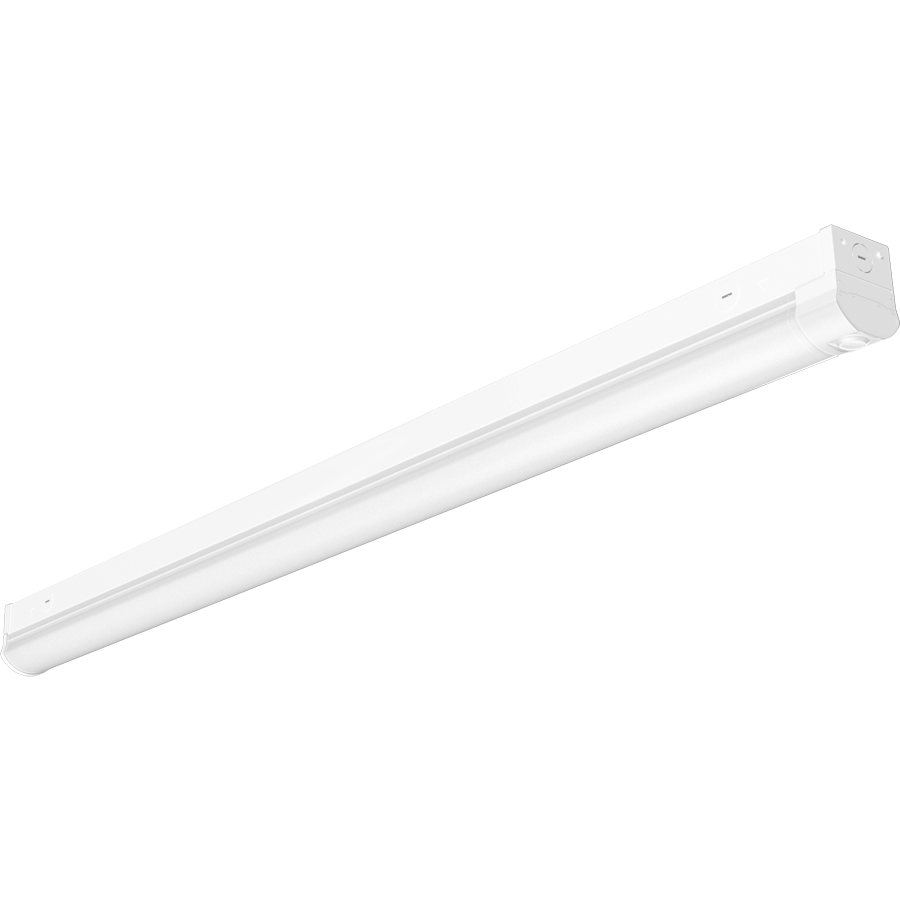

RAB SR4/MVS/E is a 4-foot field-adjustable LED strip luminaire with an integrated microwave occupancy sensor and an internal battery backup. The fixture offers selectable wattages (20/25/30/35/40 W), multiple color temperatures (3500K–6500K), Class II constant-current driver for 120–277V operation, and standard 0-10V dimming. Construction includes a polycarbonate lens and galvanized steel housing; the battery backup provides 90 minutes of emergency operation.

  • Field-adjustable power: selectable 20, 25, 30, 35, 40 W; input watts 19.5–40.5 W; 4 ft length
  • Integrated microwave occupancy sensor (MVS) with configurable sensitivity, detection radius 3–7 m and detection angle 30°–150°
  • Class II constant-current driver for 120–277V, 0-10V dimming to 10%, polycarbonate lens, galvanized steel housing, 90-minute battery backup

Product Highlights

4 ft field-adjustable LED strip (20–40 W) with MVS occupancy sensor, 0-10V dimming, and 90-minute battery backup

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: SR4/MVS
Technical Specifications
Brand
RAB
Manufacturer Part Number
SR4/MVS/E
Model
SR4/MVS/E
Type
Field-adjustable LED strip, constant current
Length
4 ft (48 in)
Power (Watts)
20 / 25 / 30 / 35 / 40 W (selectable)
Input Watts
19.5 - 40.5 W
Color Temperature (CCT)
3500K, 4000K, 5000K, 5700K, 6500K
Lumens
2878 - 5892 lm
Efficacy
140.2 - 147.6 lm/W
Color Rendering Index (CRI)
83 - 87
L70 Lifespan
100,000 Hours
Input Voltage
120-277V, 50/60 Hz
Driver
Constant Current, Class II
Dimming
0-10V standard, dims to 10%, dim-to-off supported
Sensor
Microwave occupancy sensor (MVS)
Detection Distance
Radius 9.84 - 22.96 ft (3 - 7 m)
Detection Angle
30° to 150° (without glass cover)
Maximum Mounting Height
49 ft (15 m)
Battery Backup
Integrated; provides 90 minutes of emergency operation
Battery Backup Light Loss Factor
20W: 51.7%; 25W: 41.2%; 30W: 33.5%; 35W: 30.30%; 40W: 25.2%
Lens
Polycarbonate
Housing
Galvanized steel (painted)
Finish
White, formulated for durability
Mounting
Surface mount standard; V-Hooks and chain available (ordered separately, SR VHOOK KIT)
Surge Protection
L-N 1 kV, L/N-G 2 kV
Cold Weather Starting
Minimum starting temperature 32°F / 0°C
Maximum Ambient Temperature with Battery Backup
Up to 122°F (50°C)
Compliance / Certifications
UL Listed; Suitable for damp locations; IESNA LM-79 & LM-80 tested; DLC listed (individual SKUs may vary)
