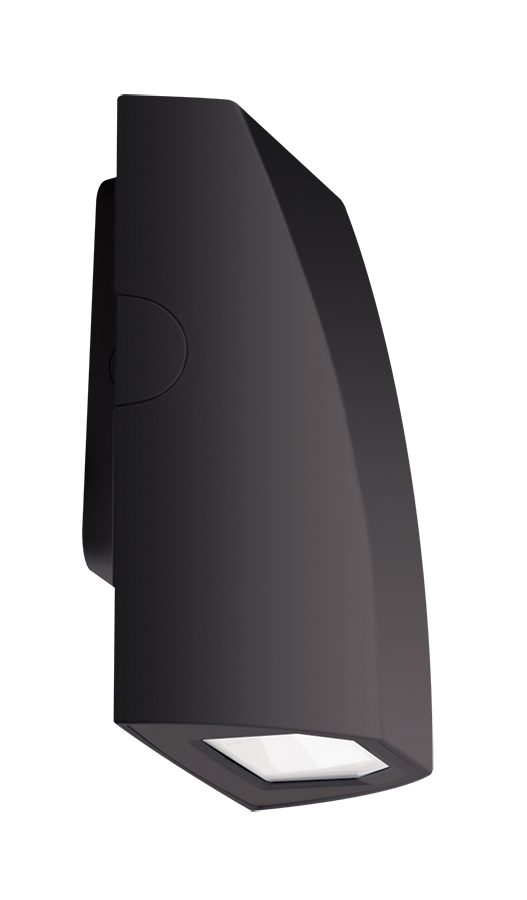

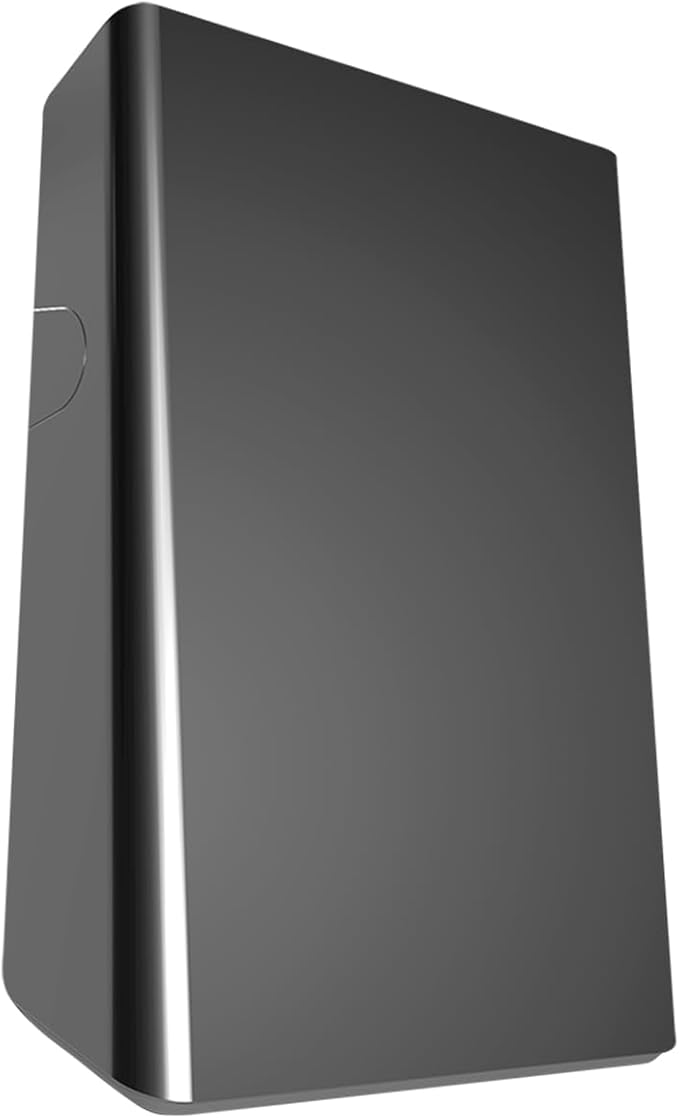

Rab SLIM26 Wallpack LED Lamp 26W

Product Description

The RAB SLIM26 is a 26W LED wallpack designed for impressive light distribution. Constructed with a precision die-cast aluminum housing and a tempered glass lens, it ensures durability. It is easy to install as a downlight or uplight. Suitable for wet locations and compliant with UL, DLC, IDA, and RoHS standards.

• Features a precision die-cast aluminum housing
• Equipped with a tempered glass lens
• Rated IP66 for dust and water ingress protection

Product Highlights

This LED wallpack offers efficient lighting with a durable design, suitable for various outdoor applications.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SLIM26
• Country of Origin: USA

Technical Specifications

• Lamp Type: LED
• Lamp Wattage: 26 W
• Lamp/Ballast Voltage: 120 to 277 Volt AC
• Voltage Rating: 120/277 VAC
• Fixture Wattage: 29 W
• Lumens: 3536 lm
• Color Temperature: 5000K
• Color Rendering Index (CRI): 67
• Average Life: 100000 hr
• Housing Material: Aluminum
• Housing Finish: Polyester Powder Coated
• Lens Type: Glass
• Mounting Type: Wall
• Enclosure Type: IP66
• Application: Wet Location
• Standard & Approvals: UL Listed, ADA Approved, LM-79, LM-80 Testing, Dark Sky Approved
• Mounting Height: 22 FT
• Amperage Rating: 0.27/0.17/0.15/0.13 A
• Type: Constant Current
• Series: SLIM
• Manufacturer: RAB Lighting
• Power Factor: 99.1 Percent at 120 Volt, 90.3 Percent at 277 Volt
• Total Harmonic Distortion: 7.5 Percent at 120 Volt, 17.7 Percent at 277 Volt
• Temperature Rating: 104 Deg F (Ambient), -40 Deg F (Minimum Starting)
• Efficacy: 119 Lumen per Watt
• Input Power Rating: 30 Watt
• Surge Protection: 6 Kilovolt
