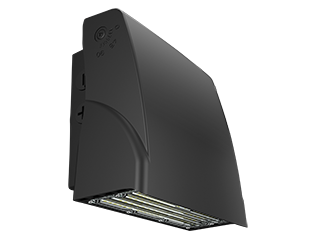

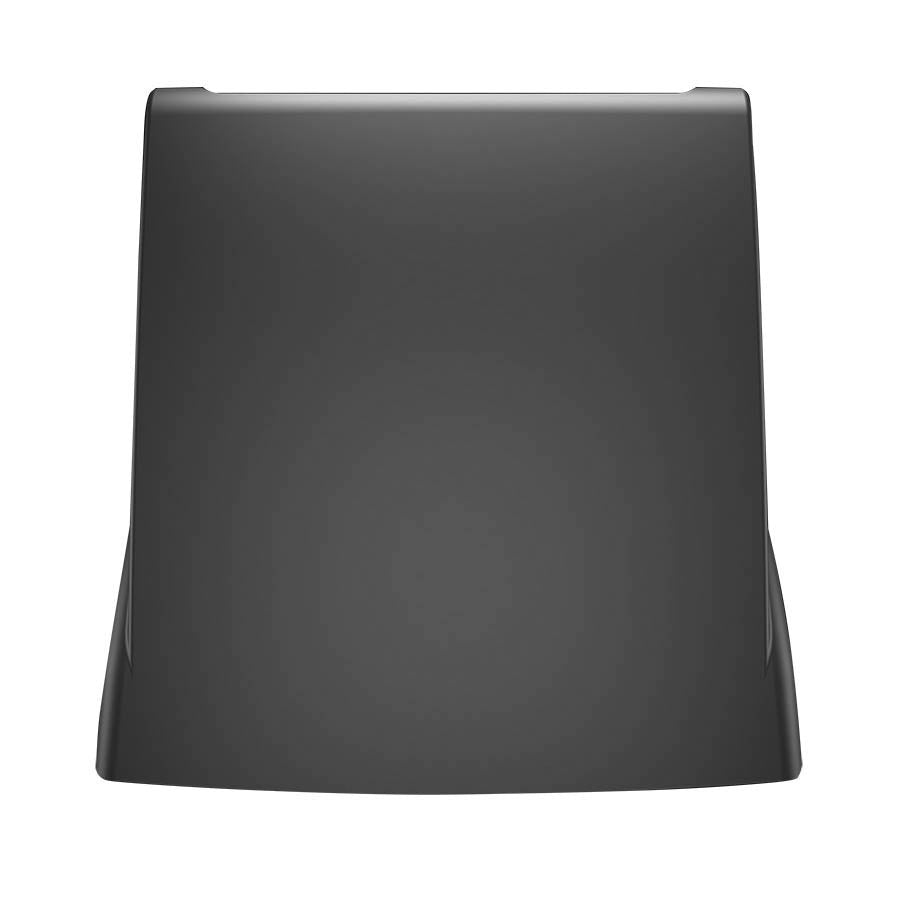

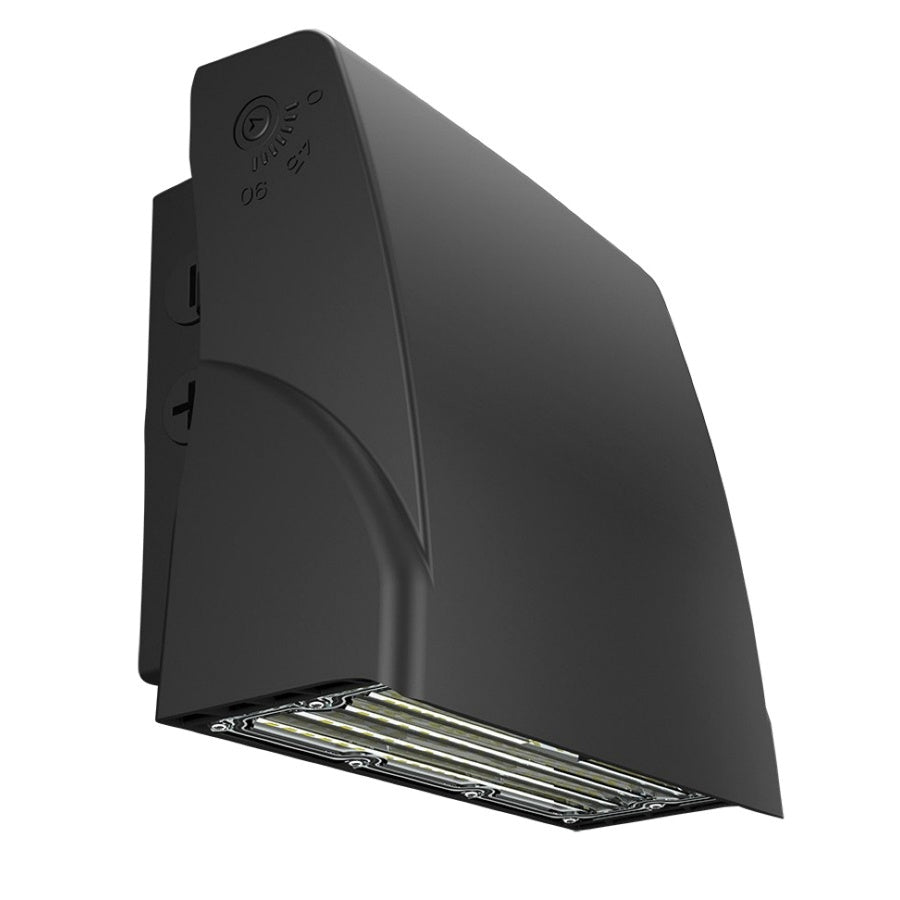

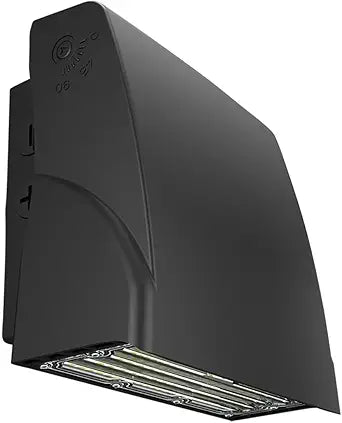

Rab SLIM17FA30ADJ Field Adjustable LED Wallpack 30W

Product Description

The RAB SLIM17FA30ADJ field adjustable LED wallpack comes in 15W and 30W models and has a fully adjustable cutoff from full cutoff up to 90° in 15° increments. It features a field-adjustable CCT switch for selecting between 3000K, 4000K, and 5000K color temperatures and an integrated photocell for automatic on/off control.

• Field-adjustable CCT switch (3000K/4000K/5000K)
• Adjustable cutoff angle from 0° to 90°
• Integrated photocell for automatic on/off

Product Highlights

The SLIM17 delivers 80+ CRI and a high efficacy of up to 130 lm/W, all with 0-10V dimming. Its diffuse, uniform output comes without the flickering or humming often found in ultra-economy lighting.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SLIM17FA30ADJ
• Country of Origin: CN

Technical Specifications

• Fixture Wattage: 30 W
• Lumens: 3540/3768/3813 Lumens
• Voltage Rating: 120 - 277 Volt AC
• Lamp Type: LED
• Color Rendering Index (CRI): 80 CRI
• Color Temperature: 3000K/4000K/5000K
• Vendor SKU: SLIM17FA30ADJ
• Manufacturer: RAB Lighting
• Brand: RAB
• Includes: 120 - 277 Volt Integrated Button Photocell
• Mounting: Hinged Wiring Access And Conduit Entries
• Lamp Wattage: 30 Watt
• Item Name: LED Wall Pack
• Frequency Rating: 50/60 Hz
• Temperature Rating: 50 deg C Ambient, -40 deg C Cold Starting
• Finish: Bronze
• Environmental Conditions: Wet Location
• Dimmable: Yes
• Construction: Precision Die Cast Aluminum Housing And Door Frame
• Type: Outdoor
• Standards: UL Listed, DLC Listed, IESNA LM-79 And LM-80 Tested, IP65 Rated, RoHS Compliant
• Shade Type: Polycarbonate Lens
• Driver Type: 29.4/28.4/29.7 Watt, 0.25 Amp at 120 Volt, 0.2 Amp at 208 Volt, 0.15 Amp 240 Volt, 0.12 Amp at 277 Volt, Class 2, Constant Current, 0 - 10 Volt Dimming
• Average Life: 100000 Hour
• Collection: SLIM®17
• Manufacturer Name: Rab
• UPC: 19255200443
• Energy Star Flag: No
• Manufacturer Part Number: SLIM17FA30ADJ
• UNSPSC: 39111600
• Field Adjustability: Field Adjustable
• Color temperature selectable: 3000K, 4000K and 5000K
• UL Listed: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• IP Rating: Ingress protection rating of IP65 for dust and water
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• DLC Product Code: PL8HS37YLUB0
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Equivalent to 175W Metal Halide
• LEDs: Long-life, high-efficiency, surface-mount LEDs
• Driver: Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.25A, 208V: 0.20A, 240V: 0.15A, 277V: 0.12A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• Photocell: 120-277V Integrated button photocell included.
• Surge Protection: L-N:2.5 kV,L/N-GND:2.5 kV
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Ambient Temperature: Max Power Temp Rating: 122°F ( 50°C) Middle Power Temp Rating: 122°F ( 50°C)) Low Power Temp Rating: 122°F ( 50°C)
• Housing: Precision die-cast aluminum housing and door frame
• Lens: Polycarbonate lens

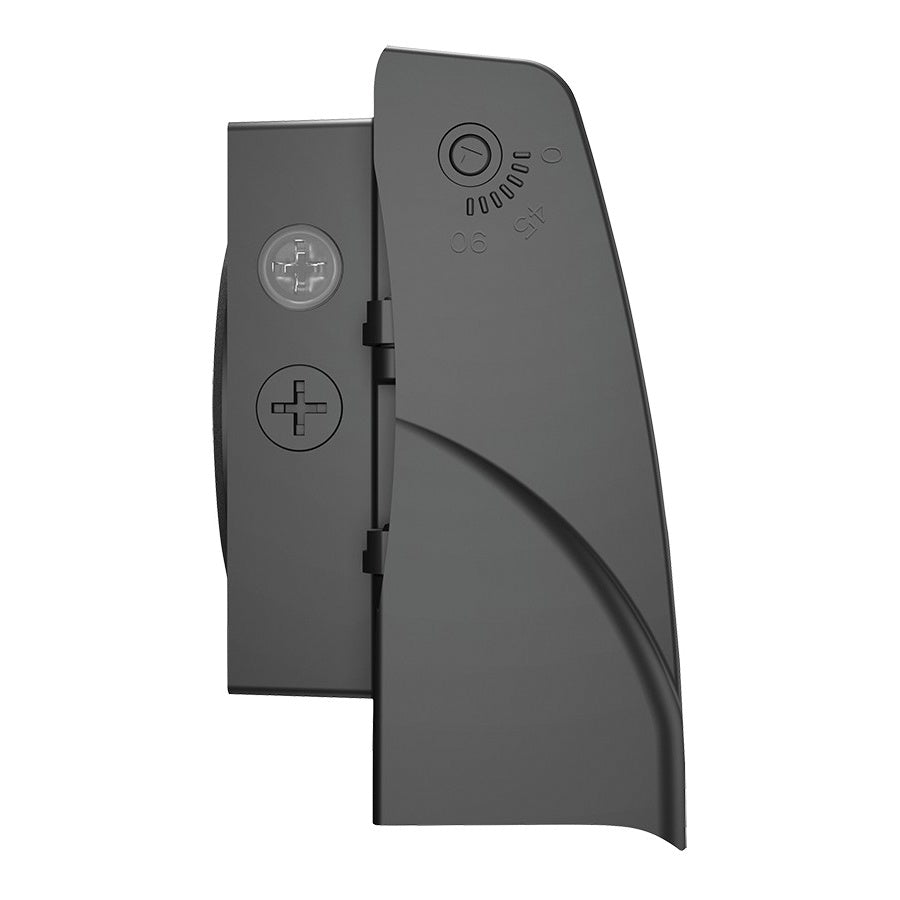

• Cut Off: Adjustable from 0° (full cutoff) to 90°. 7 settings at 15° each.
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Warranty: The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
• DLC Product ID: PL8HS37YLUB0
• Lumens Per Watt: 127.1
• Wattage: 30 Watts
• Input Voltage: 120-277V
• 0-10V Dimmable: 0-10V
• Rated Hours: 100,000 Hours
• Min Operating Temp: -40 degrees C
• Special Features: CCT Selectable, Photocell Installed
• Length: 7.16"
• Width: 4.5"
• Height: 7.38"
• Material: Precision Die Cast Aluminum
• Style: Modern
• Light fixture form: Wall
• Room Type: Outdoor
• Specific Uses For Product: Outdoor use only
• Indoor/Outdoor Usage: Outdoor
• Power Source: Corded Electric
• Installation Type: Wall Mount
• adjustable color temperature: adjustable color temperature, adjustable lighting cutoff, integrated photocell, high efficacy
• Light Source Type: LED
• Finish Type: Bronze
• Shade Material: Aluminum
• Lighting Method: Adjustable
• Number of Items: 1
• Water Resistance Level: Water Resistant
• Efficiency: 130 lumens per watt
• Mounting Type: Wall Mount
• Shade Color: Bronze
• Fixture Type: Non Removable
• Assembly Required: No
• Part Number: SLIM17FA30ADJ
• Series: SLIM
• Enclosure Type: IP65
• Housing Finish: Bronze
• Housing Material: Die Cast Aluminum
• Lens Type: Polycarbonate
• Light Output: 120 Lumens/W
• Ballast Type: Constant Current
• Amperage Rating: 0.25/0.20/0.15/0.12 A
