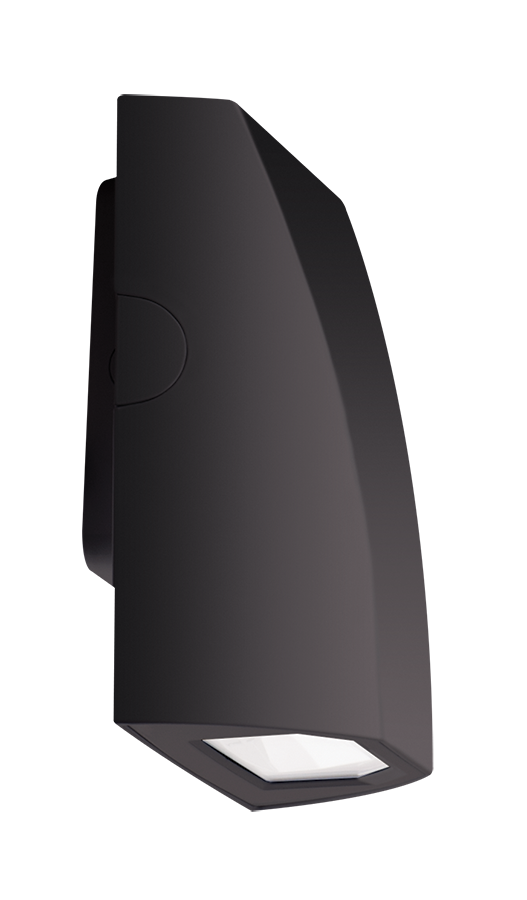

Rab SLIM12 SLIM Wallpack, LED Lamp, 14 W Fixture, 120/208/240/277 VAC

Product Description

The RAB SLIM12 SLIM wall pack is ultra efficient and delivers impressive light distribution with a compact low-profile design that's super easy to install as a downlight or uplight. It features a precision die-cast aluminum housing and a tempered glass lens. The LED has a 100,000-hour lifespan.

• Ultra efficient and deliver impressive light distribution with a compact low-profile design that's super easy to install as a down light or uplight
• Precision die-cast aluminum housing
• High temperature silicone gaskets

Product Highlights

The SLIM series wallpack is contractor friendly and can be used as a downlight or uplight. It is mercury and UV free and RoHS-compliant.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SLIM12
• Country of Origin: CN

Technical Specifications

• Average Life: 100000 hr
• Fixture Wattage: 14 W
• Voltage Rating: 120/208/240/277 VAC
• Housing Material: Aluminum
• Lumens: 2,070 lm
• Housing Finish: Polyester Powder Coated
• Lamp Wattage: 12 W
• Mounting Type: Wall
• Type: Wallpack
• Lamp Type: LED
• Color Temperature: 5100 K
• Enclosure Type: IP66
• Series: SLIM
• Lens Type: Glass
• Amperage Rating: 0.12/0.08/0.07/0.06 A
• Color Rendering Index (CRI): 67
• Application: Wet Location
• Manufacturer: RAB Lighting
• Brand: RAB
• Watts: 12W
• Efficacy: 130.8 lm/W
• Color Accuracy: 75 CRI
• L70 Lifespan: 100,000 Hours
• Input Watts: 13.9W
• UL Listed: Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
• IP Rating: Ingress protection rating of IP66 for dust and water
• ADA Compliant: SLIM is ADA Compliant
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• LED: Multi-chip, long-life LED
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines for the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Equivalent to 70W Metal Halide
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Housing: Precision die-cast aluminum housing
• Lens: Tempered glass lens
• Reflector: Specular thermoplastic
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Heavy-duty mounting bracket with hinged housing for easy installation
• Recommended Mounting Height: Up to 8 ft
• HID Replacement Range: Replaces 70W Metal Halide
• BUG Rating: B1 U0 G0
• Driver: Constant Current, Class 2, 100-277V, 50/60 Hz., 4KV surge protection, 120V: 0.14A, 208V: 0.08A, 240V: 0.07A, 277V: 0.06A
• THD: 8.5% at 120V, 18.1% at 277V
• Power Factor: 98.2% at 120V, 84.3% at 277V
• Alternate Catalog Number: 00019813040387
• Catalog Number: SLIM12
• Lens Material: Tempered Glass
• Total Harmonic Distortion: 13.3% At 277V,7.7% At 120V
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• Standards: UL Listed, ADA Approved, LM-79, LM-80 Testing, Dark Sky Approved
• Voltage: 120 Volt
• Ambient Temperature: 104 degrees F
• Amperage: 0.12 Amp
• Average Rated Life: 100,000 hr
• Correlated Color Temp: 5,100 K
• Input Wattage: 15.1
