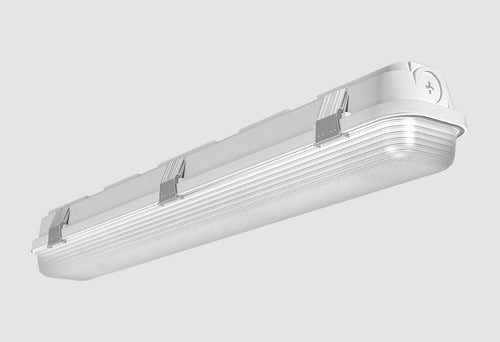

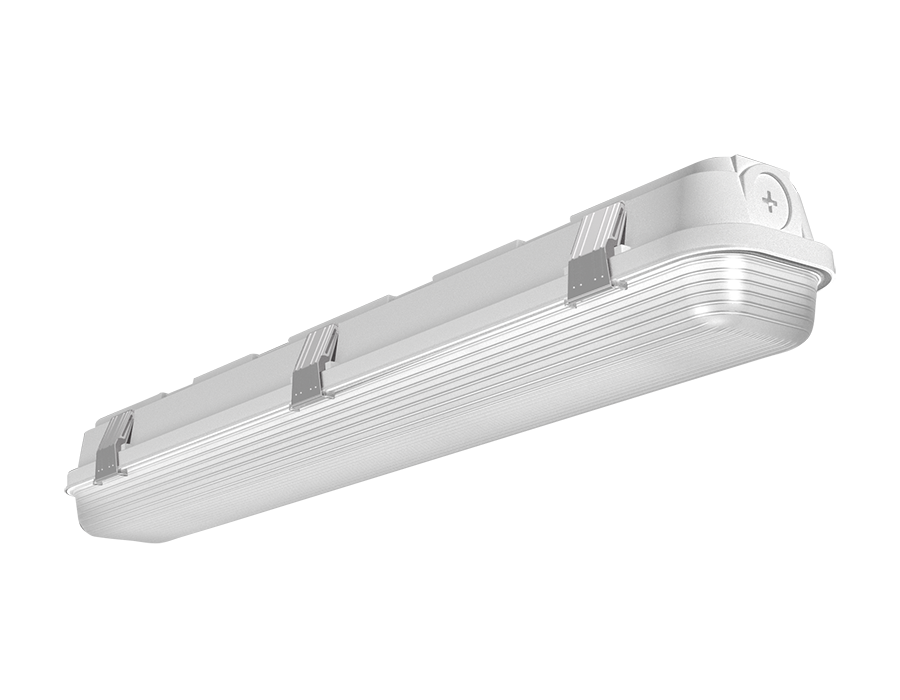

Rab SEAL2 Seal2 25/20/15W (2 ft)

Product Description

Rab SEAL2 is a field-adjustable linear washdown LED fixture (MPN SEAL2) that delivers 2,040–3,400 lumens with selectable wattages of 25W, 20W, or 15W and field-adjustable color temperatures (3500K/4000K/5000K). It operates on 120–277V with a constant-current driver, includes 0–10V dimming to 10%, and provides IP66/NEMA 4X protection and IK08 impact rating. Construction uses impact-resistant polycarbonate housing, diffuse polycarbonate lens, stainless steel clips, and a cold-rolled steel reflector. L70 rated 100,000 hours.

• Field-adjustable wattage 25/20/15W and CCT 3500K/4000K/5000K; lumen output 2,040–3,400 lm
• Universal 120–277V constant-current driver with 0–10V dimming (dims to 10%); THD and power factor ratings provided
• Durable, wet-location design: IP66, NEMA 4X, IK08; impact-resistant polycarbonate housing, diffuse polycarbonate lens, stainless steel door clips

Product Highlights

Selectable wattage and CCT; 120–277V input with 0–10V dimming; IP66/NEMA 4X wet-location and IK08 impact protection; 100,000-hour L70 life.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: SEAL2
