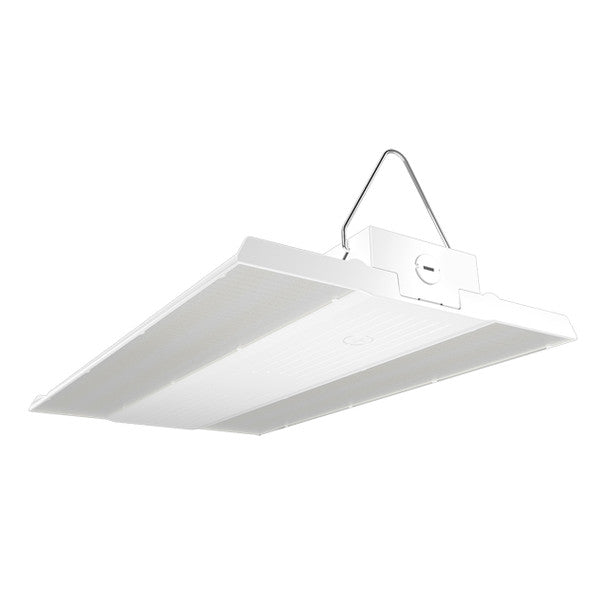

Rab RBAY17M LED Linear High Bay, Up to 40539 Lumens, 160/220/260 Watt Selectable, (V-Hook and Chain Mount Included)

Product Description

The RAB RBAY17M LED Linear High Bay is designed to replace up to 1000W metal halide fixtures and can be mounted as high as 60 feet. This high bay fixture hits the lumen output of much larger fixtures. Each model comes with three selectable wattages and color temperatures, allowing for customized settings. It is suitable for warehouse applications.

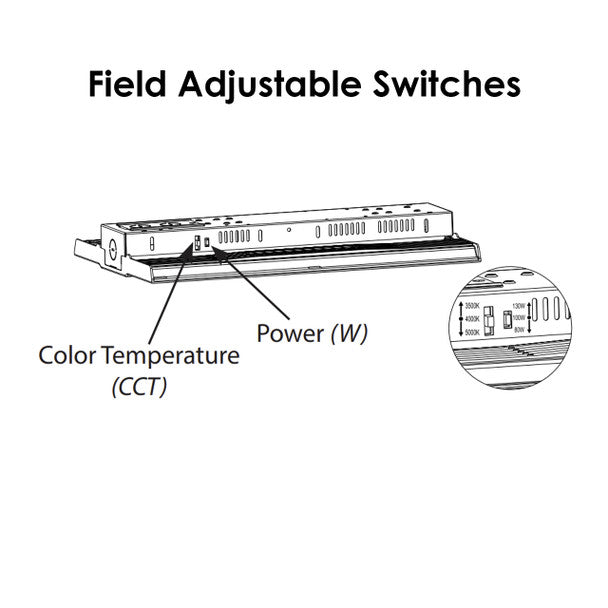

• Field Adjustable Light Output: 260W/220W/160W (factory default 260W)
• Color temperature selectable by 5000K, 4000K and 3500K (factory default 4000K)
• 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Product Highlights

The RBAY17M LED high bay offers adjustable wattage and color temperature. It features a durable aluminum housing and polycarbonate lens, and comes with V-hooks for chain mounting.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: RBAY17M

Technical Specifications

• Brand: RAB Lighting
• MPN: RBAY17M
• Model: RBAY17M
• Material: Aluminum
• Style: Modern
• Room Type: Warehouse
• Product Dimensions: 19.69"L x 11.81"W x 2.07"H
• Specific Uses For Product: Warehouse
• Indoor/Outdoor Usage: Indoor
• Power Source: Hardwired
• Installation Type: V-Hook
• Mounting Type: Ceiling Mount
• Light Source Type: LED
• Finish Type: Polished
• Number of Light Sources: 1
• Voltage: 120/208/240/277
• Light Color: White
• Shape: Rectangular
• Included Components: Fixture
• Warranty Type: Limited
• Lighting Method: Downlight
• Number of Items: 1
• Wattage: 160/220/260 Watt
• Unit Count: 1.0 Count
• Water Resistance Level: Not Water Resistant
• Connectivity Protocol: 0-10V
• Brightness: 40539 lumen
• Efficiency: High Efficiency
• Shade Color: White
• Fixture Type: Non Removable
• Assembly Required: No
• Manufacturer: RAB Lighting
• Color Temperature: 4000 Kelvin
• Light Output Maximum: 40539 Lumens
• Model Name: RBAY17M
• Part Number: RBAY17M
• Item model number: RBAY17M
• Finish types: Polished
• Batteries Included?: No
• Batteries Required?: No
• Equivalent: 8-Lamp T5HO / 750 Watt Metal Halide
• Lumens: 25,587-39,200
• Efficacy: 144-166 lumens / Watt
• Color Temperature (CCT): 3500/4000/5000 Kelvin
• Life Rating: 100,000 Hours
• CRI: 80+
• Frequency: 50/60 Hz
• Power Factor: >0.90
• THD: <10%
• Surge Protection: L-N: 6kV; L/N-GND: 6kV
• Operating Temperature: -4°F to 122°F
• Dimmable: Yes, 0-10V
• Mounting: V-Hook and Chains
• Housing Material: Aluminum
• Finish: White
• Lens Material: Polycarbonate
• IP Rating: IP20
• Location Rating: Damp
• Length: 19.69 in.
• Width: 11.81 in.
• Height: 2.07 in.
• UL: Yes
• ETL: No
• RoHS: Yes
• Energy Star: No
• FCC: N/A
• DLC: Yes
• DLC ID: S-Z1IKA0
• Warranty: 5-Year Manufacturer
