RAB RABWFRL6R139FA WFRL6R139FA 6-Inch Round Edge-Lit Wafer Replacement MPN

Product Description

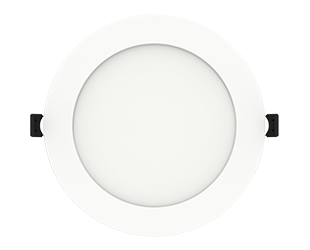

The RAB WFRL6R139FA is a six-inch round edge-lit wafer designed for recessed mounting. This fixture features adjustable color temperatures, selectable via dip switch for temperatures ranging from two thousand seven hundred Kelvin to five thousand Kelvin. It is suitable for use in dry, damp, or wet environments indoors and outdoors.

• Field adjustable color temperature: 2700K to 5000K
• Dimmable down to 10% with compatible dimmers
• IC rated for direct contact with insulation

Product Highlights

The RAB WFRL6R139FA provides flexibility in color temperature and energy efficiency, making it ideal for various lighting applications.

Product Information

Standard Information

• Manufacturer: RAB Lighting
• Brand: RAB

Technical Specifications

• Product Type: Round, Edge-Lit Wafer
• Wattage Equivalency: 75W Incandescent
• Input Wattage: 13W
• Nominal Lumens: 1100lm
• Measured Lumens: 1005lm @ 2700K; 1041lm @ 3000K; 1115lm @ 3500K; 1143lm @ 4000K; 1134lm @ 5000K
• Efficacy: 77m/W @ 2700K; 80lm/W @ 3000K; 86lm/W @ 3500K; 88lm/W @ 4000K; 87lm/W @ 5000K
• L70 Lifespan: 50000 hours
• Driver: Constant Current, Class 2 60 Hz; 120V: 130mA
• THD: ≤20%
• Power Factor: ≥0.9
• Input Voltage: 120V
• Operating Temperature: -22°F to 104°F
• Beam Angle: 110°
• Color Accuracy (CRI): >90
• Color Consistency: <4-step MacAdam Ellipse binning
• Energy Star Approved: Yes
• NEC Compliant: Yes
• RoHS Compliant: Mercury and UV free
