Rab R6S10840120WB led recessed downlight trim module 10W

Product Description

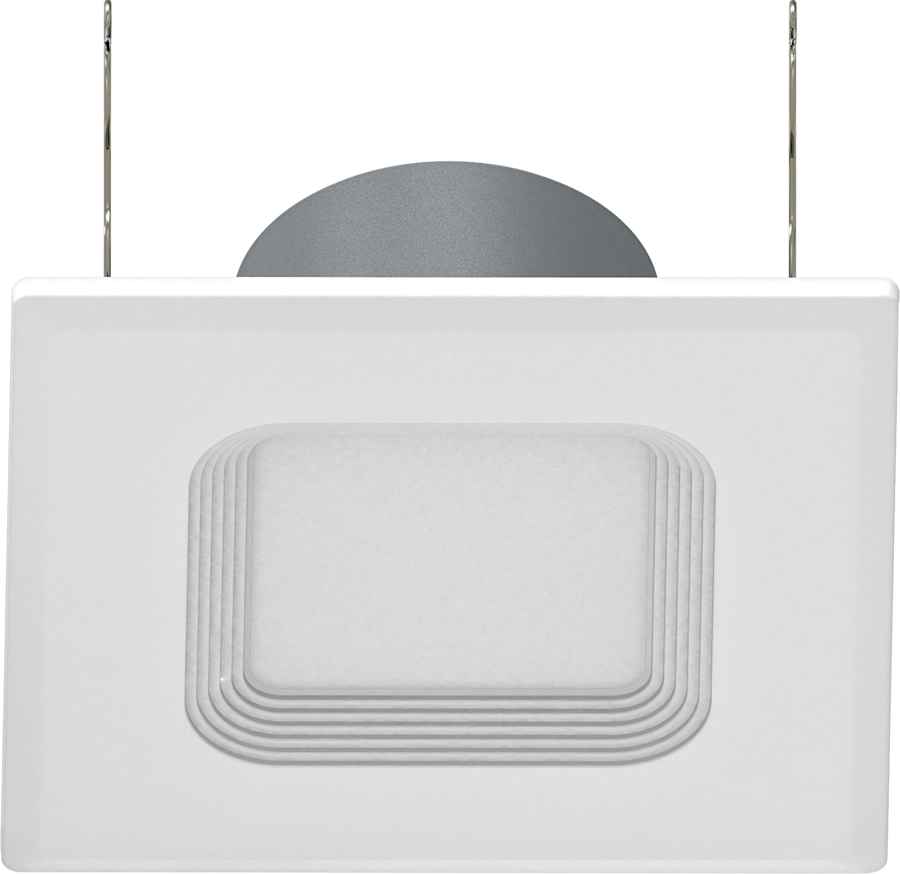

The RAB R6S10840120WB is an LED recessed downlight trim module designed for 5" and 6" housings. The square baffle trim delivers 1,142 lumens at 10W with 100 lm/W efficacy. It features a 4000K neutral white light, 80 CRI, and a 110° beam angle. Operating at 120V, it is TRIAC dimmable to 5% with a 50,000-hour L70 lifespan.

• LED recessed downlight trim module suitable for 5" and 6" housings
• Features a square baffle trim with 1,142 lumens at 10W
• ENERGY STAR V2.2 certified and UL classified for wet locations

Product Highlights

This downlight module offers efficient lighting with a long lifespan and is suitable for wet locations.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: R6S10840120WB

Technical Specifications

• Buy Line: RAB
• Beam Angle: 110
• Cold Weather Starting: The minimum starting temperature is -30C (-22F)
• Color Accuracy: 80 CRI
• Color temp: 4000
• Compatibility: Compatible with most 5" and 6" recessed housings
• Dimming Driver: TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
• Driver: Constant Current
• Efficacy: 100
• Energy Star ID: 2350001
• Energy Star Model Number: DLR0076
• ENERGY STAR V2.2: ENERGY STAR Version 2.2 Certified
• Finish: Matte White
• Flicker: Silent and flicker free operations of less than 30%
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Housing: Constructed from durable steel sheet metal
• Input Voltage: 120V
• L70 Lifespan: 50,000 Hours
• Lamp Info: LED
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Lifespan: 50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
• Lumens: 1,142 lm
• Maximum Ambient Temperature: Suitable for use in up to 40C (104F)
• Mounting: Easy installation with friction clips (4") and torsion springs (5"/6")
• NEC Compliant: Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
• Operating Frequency (Hz): 60Hz
• Power Factor: =0.9
• Rated Power: 10W
• Shape: Square
• Socket Adapter: Edison 26 Medium Base Socket adapter included in box
• THD: <20%
• THDi: Produces less than 20% THD
• Trim Style: Baffle Trim
• UL Classified: Suitable for wet locations
• Wattage Equivalency: 85W Incandescent
• Lens: Frosted polycarbonate diffusion lens. Regressed lens. Constructed from robust polycarbonate that is dent and scratch resistant.
• Voltage: 120V
• Kelvin: 4000K (Neutral)
• CRI: 80CRI
• requiredi: (1) x 10 Watt
