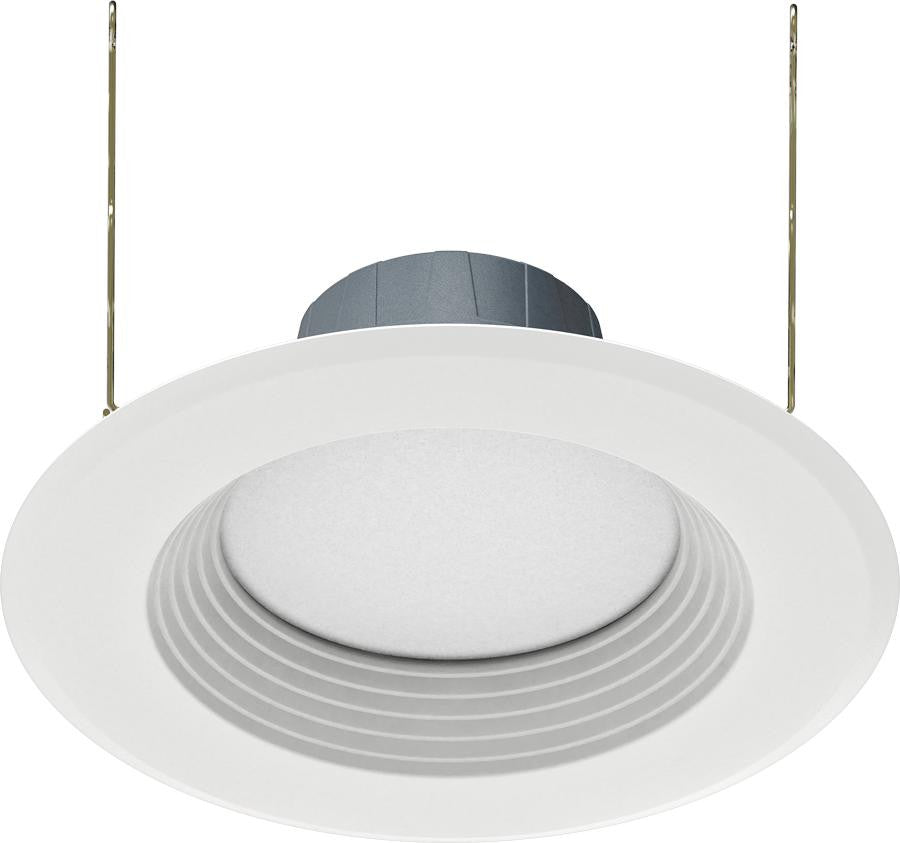

Rab R6R11835120WB R Series Round 11W 6 inches Replacement

Product Description

The RAB R6R11835120WB is a high-performance LED that delivers up to 106 lm/w. This LED is designed with durable metal construction that is dent and scratch resistant. It is UL wet location rated and compatible with most standard recessed housings. Dimmable down to 5% on compatible dimmers.

• High Performance LEDS up to 106 lm/w
• Use to replace up to 100W traditional light sources
• Durable metal construction: dent and scratch resistant

Product Highlights

This LED has a 5-Year, No-Compromise Warranty and is available in a smooth and baffle trim option.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: R6R11835120WB

Technical Specifications

• Watts: 11W
• Color Temp: 3500K
• Lumens: 1,158 lm
• Efficacy: 100
• Color Accuracy: 80 CRI
• L70 Lifespan: 50,000 Hours
• Type: Constant Current
• Input Voltage: 120V
• THD: <20%
• Power Factor: ">=0.9
• Operating Frequency (Hz): 60Hz
• Lifespan: 50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: 85W Incandescent
• Shape: Round
• Trim Style: Baffle
• Housing: Constructed from durable steel sheet metal
• Cold Weather Starting: The minimum starting temperature is -22°F (-30°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Lens: Frosted polycarbonate diffusion lens. Regressed lens. Constructed from durable sheet metal construction.
• Finish: Matte White
• Beam Angle: 95°±10°
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Mounting: Easy installation with friction clips (4") and torsion springs (5"/6")
• Compatibility: Compatible with most 5" and 6" recessed housings
• Amperage Rating: 0.09 A
• Average Life: 50000 hr
• Ballast Type: Constant Current/TRIAC Dimming
• Ceiling Opening: 6 in
• Color Rendering Index (CRI): 80

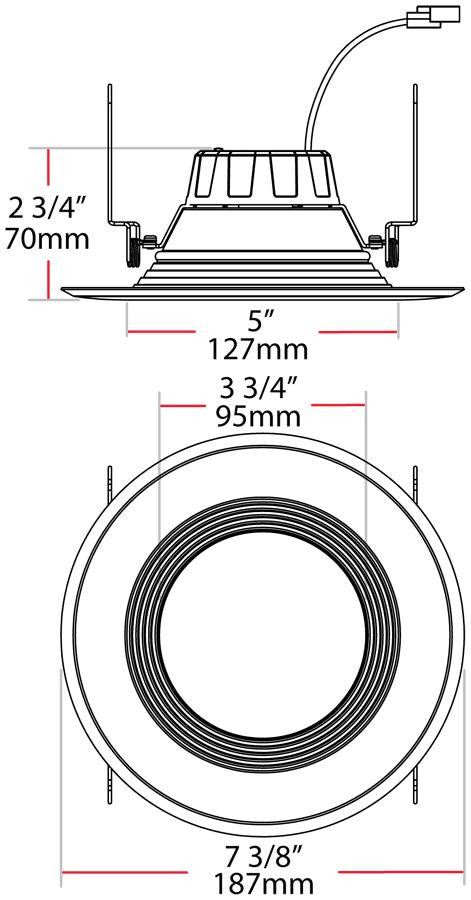

• Dimensions: 7-3/8 in Dia x 2-3/4 in H
• Fixture Wattage: 10 W
• Housing Material: Aluminum
• Lamp Base Type: E26 Medium
• Lamp Type: LED
• Lamp Wattage: 11 W
• Lens Type: Frosted Polycarbonate Diffuser
• Light Color: Warm Neutral White
• Light Output: 115.8 Lumens/W
• Mounting Type: Friction Clip/Torsion Spring
• Recessed Trim Type: Baffle
• Series: R Series
• Voltage Rating: 120 VAC
• Model: R6R11835120WB
• Brand: RAB Lighting
• SKU: 5864748
• UOM: each
• Dimming Driver: TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
• Driver: Constant Current
• Energy Star ID: 2350095
• Energy Star Model Number: DLR0011
• ENERGY STAR V2.2: ENERGY STAR Version 2.2 Certified
• Flicker: Silent and flicker free operations of less than 30%
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Height: 7.56
• Length: 7.56
• NEC Compliant: Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
• Rated Power: 11W
• THDi: Produces less than 20% THD
• UL Classified: Suitable for wet locations
• Volume: 0.13
• Width: 3.82
