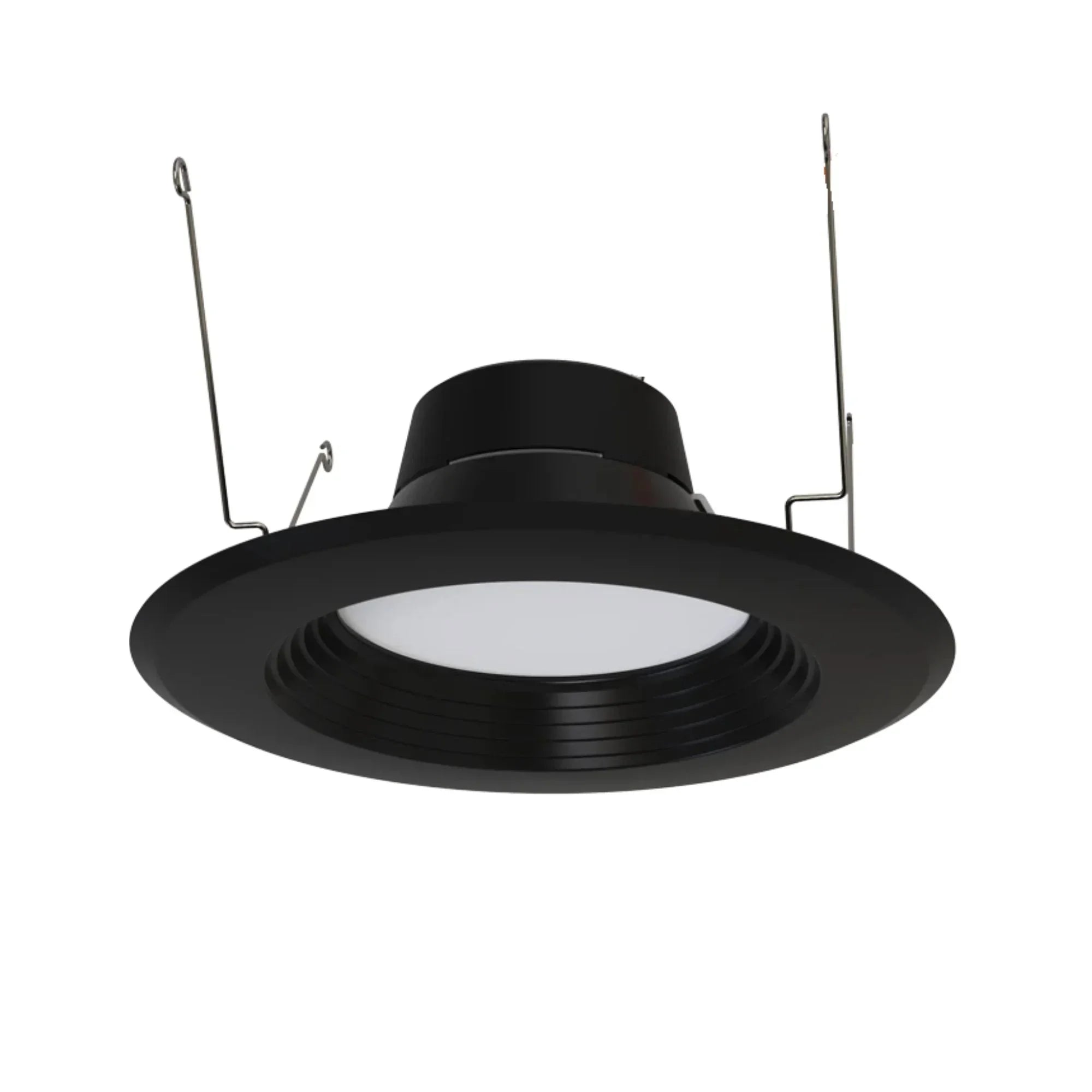

Rab R34X-6-B Retrofit Downlight Field-Adjustable 6 inches

Product Description

The RAB R34X-6-B Retrofit Downlight Field-Adjustable is compatible with most recessed housings. It features selectable lumen outputs: 4" - 500/600/700 lumens, 6" - 750/1,050/1,300 lumens and five color temperature settings selectable via dip switch. Constructed from die-cast aluminum with a frosted polycarbonate lens. Dimmable down to 10%.

• Compatible with most recessed housings
• Features 3 selectable lumen outputs

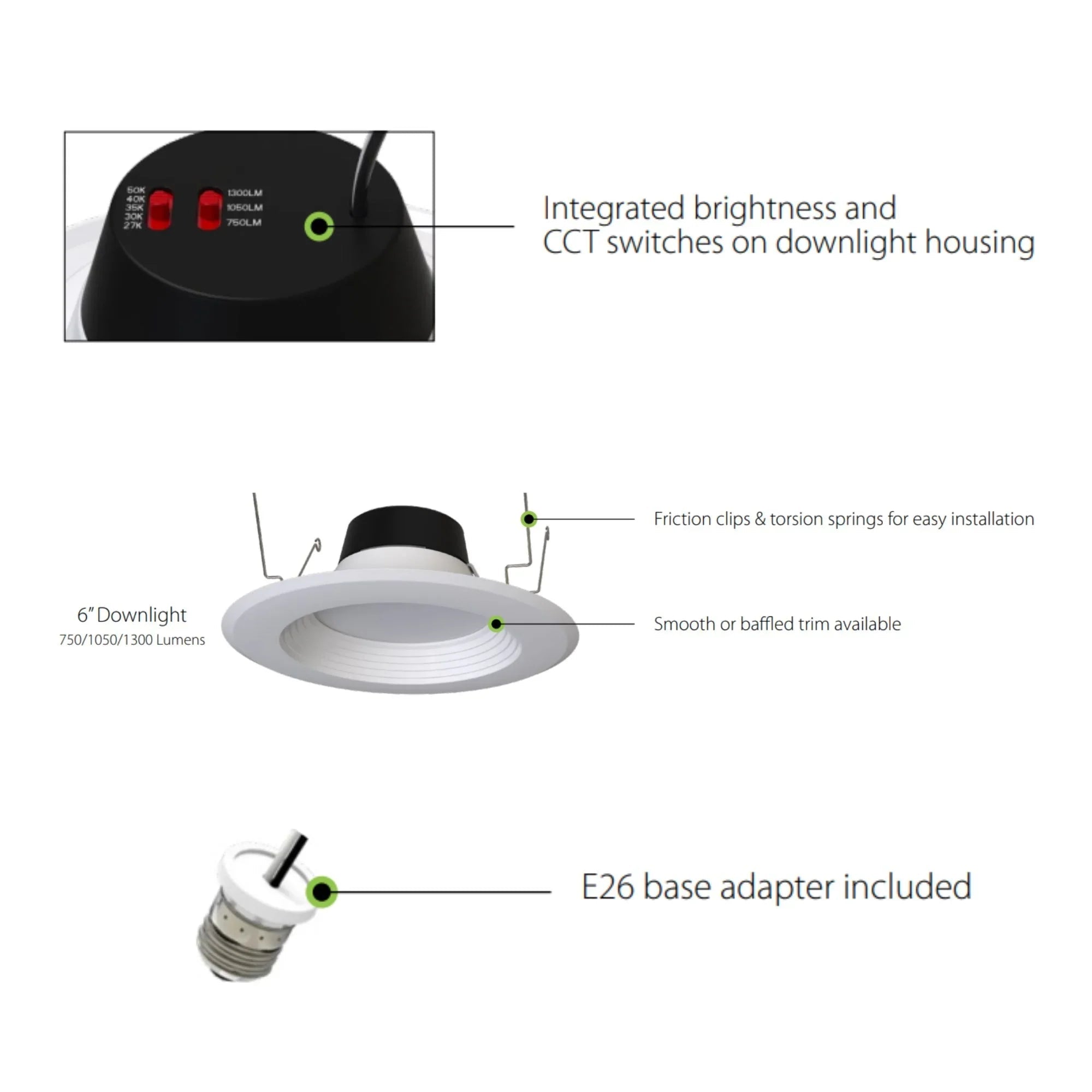

• Offers 5 color temperature settings selectable via dip switch

Product Highlights

The RAB R34X-6-B downlight is constructed from die-cast aluminum and is dimmable down to 10%.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: R34X-6-B
• Country of Origin: Cambodia

Technical Specifications

• Product Type: LED Trim - Metal
• Description: Available in 4" and 6" models with 3 power settings and 5 field-adjustable color temperatures. Offered with smooth or baffle trims. Ideal for applications with tighter budgets.
• Wattage Equivalency: 60W/75W/100W Incandescent
• Input Wattage: 14/11/7.5W
• Lumens: 1,300/1,050/750lm
• Lumens (Measured): .5W 2700K: 750lm 3000K: 770lm 3500K: 800lm 4000K: 810lm 5000K: 780lm 11W 2700K: 1050lm 3000K: 1080lm 3500K: 1110lm 4000K: 1120lm 5000K: 1090lm 13W 2700K: 1300lm 3000K: 1330lm 3500K: 1360lm 4000K: 1370lm 5000K: 1340lm
• Efficacy: 100lm/W
• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• Driver: Constant Current
• THD: ≤20%
• Power Factor: ≥0.9
• Dimmable: Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
• Input Voltage: 120V
• Operating Frequency: 60 Hz
• Input Current @ 120V (mA): 130mA
• Operating Temperature: -4°F to 104°F (-20 to 40°C)
• Flicker: ≤30%
• Beam Angle: 85°±10°
• Color Temperature: Field-adjustable via dip switch 2700/3000/3500/4000/5000K
• Color Accuracy (CRI): 90 CRI
• R9 Value: High color performance with R9 greater than 50
• Color Consistency: <4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color (2700K/5000K)
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Mounting: Recessed with housing
• Size: 6"
• Shape: Round
• Finish: White
• Material: Constructed from spun aluminum
• Trim Style: Baffle
• Lens Finish: Frosted
• Lens: Single optic and full-face lens for precise beam angle control
• Listings: UL Classified, UL Recognized
• Environment: Suitable for use indoors and outdoors in dry, damp, or wet environments.
• IC Rated: No
• Air Tight: No
• Energy Star Approved: This product is ENERGY STAR® Certified.
• Certification Model Number: DLR0164(R34X-6B)
• California Title 20 Compliant: Can be used to conform with the requirements of California Title 20
• California Title 24 JA8 Compliant: Can be used to conform with the requirements of California Title 24 Part 6.
• California Energy Commission (CEC) Status: Lawful for Sales in California
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
• Downlight Diameter: 6"
• Downlight Type: Standard Residential, Wattage / Lumen Selectable
• Rated Hours: 50,000 Hours
• Min Operating Temp: -4 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, Title 20 / 24 Compliant, Wattage Selectable, Wet Location Rated
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• Voltage: 120V
• Total Wattage: 14W
• Lamp Life: 50,000 Hours
• Product Rating: Wet Rated

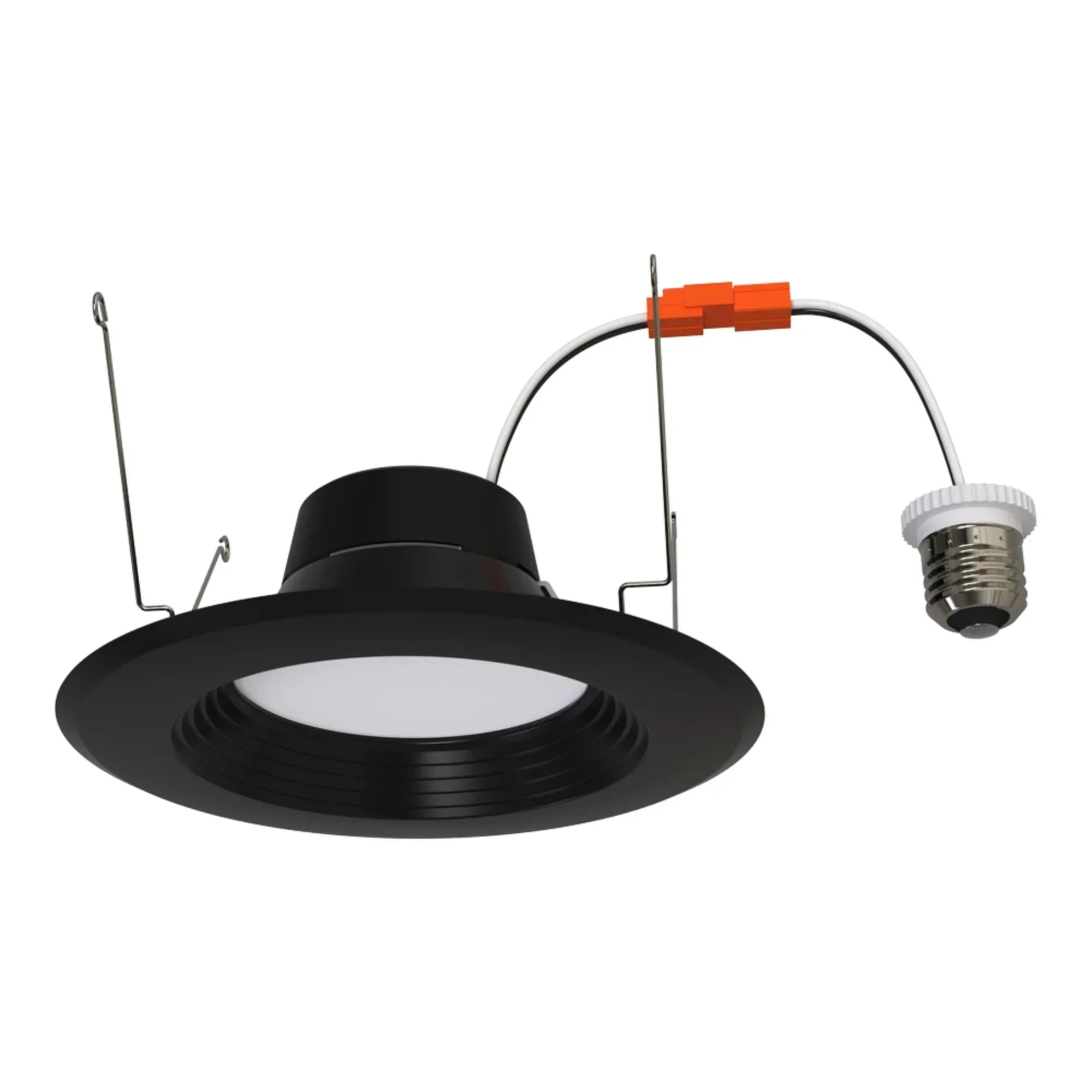

• Base Type: E26
• Lamp Color: 2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
• Delivered Lumens: 1400
• Trim: Open
• Reflector: Baffle
