Rab PLL-13.5-830-DIR PLL LED PL Lamp 13.5W (Horizontal) PL-L 40W/830/4P

Product Description

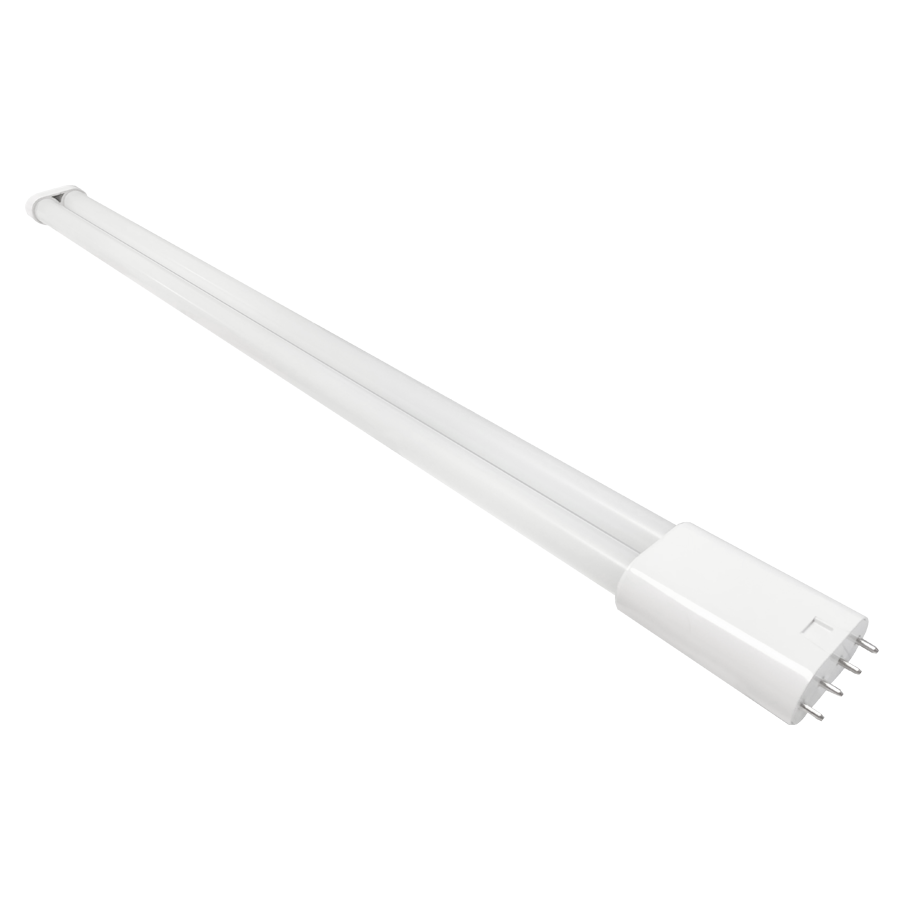

Rab PLL-13.5-830-DIR is a compact PLL LED retrofit lamp that replaces 36W twin-tube 2G11 CFLs and produces 2,050 lumens at 3000K while drawing 13.5W. It is ballast compatible (Type A plug-and-play) for most electronic 2G11 ballasts, operates on 120-277V 50/60Hz, and is rated for a 50,000-hour L70 lifespan. The lamp is UL listed and suitable for enclosed and damp locations.

• Produces 2,050 lumens at 3000K with 80 CRI using 13.5W (13W rated); efficacy ~152 lm/W
• Ballast compatible Type A plug-and-play for 2G11 (4-pin) electronic ballasts; horizontal mounting
• Rated for 50,000-hour L70, operating temperature -200C to 450C; UL listed, RoHS, FCC, DLC family listing

Product Highlights

Ballast-compatible 2G11 PLL retrofit; 2,050 lm at 3000K; 13.5W input; 50,000-hour L70; UL listed; suitable for enclosed and damp locations

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: PL-L13.5-830-DIR

Technical Specifications

• Brand: Rab
• Model / MPN: PLL-13.5-830-DIR
• Product Type: Compact (PLL) LED retrofit lamp
• Base Type: 2G11 (4-pin)
• Input Wattage: 13.5W
• Rated Wattage: 13W (performance listed)
• Lumens: 2,050 lm
• Efficacy: 152 lm/W
• Color Temperature: 3000K
• Color Rendering Index (CRI): 80
• L70 Lifespan: 50,000 Hours
• Equivalent Wattage: 36W twin-tube 2G11 CFL
• Dimmable: Not suggested for dimming applications
• Input Voltage: 120-277V AC
• Operating Frequency: 50/60Hz
• Operating Temperature: -200C to 450C (-40F to 1130F)
• LED Driver Type: Constant Current
• Beam Angle: 1400
• Mounting Orientation: Horizontal
• Installation Method: UL Type A (Plug and Play) for electronic ballasts
• Enclosure Material: Polycarbonate endcap with glass
• Lens Finish: Frosted
• Burning Position: Horizontal
• Total Harmonic Distortion (THD): 20%
• Power Factor: >0.9
• Certifications: UL Listed, RoHS, FCC Part 15B, DLC Listed (family)
• Certification Model Number: T10226(PLL-13.5-830-DIR)
• UPC: 019813918280
