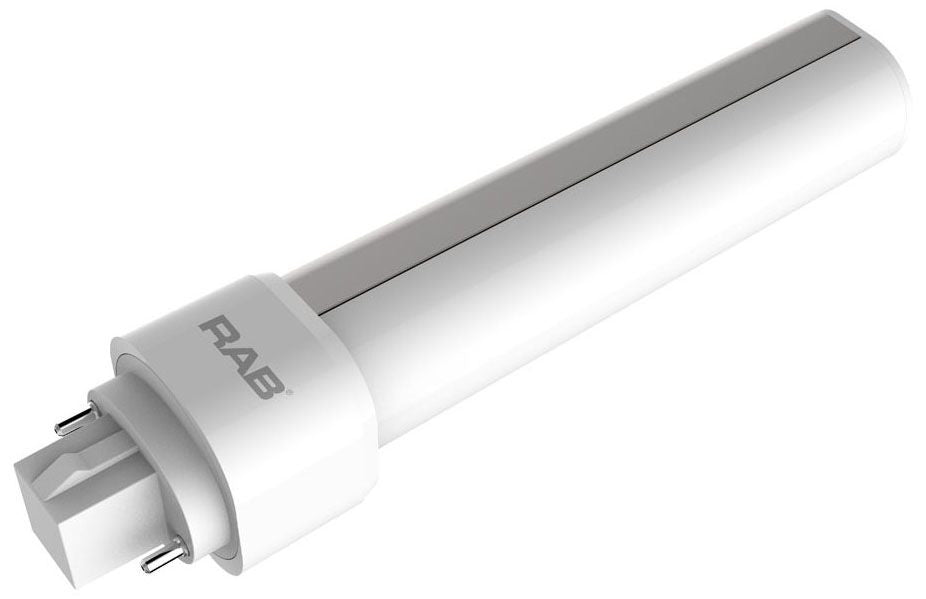

Rab PLC-9-H-840-BYP LED Lamp 9W

Product Description

The Rab PLC-9-H-840-BYP is a 9W LED lamp designed to replace outdated CFL lamps. Operating on 120-277V, this lamp delivers 1000 lumens of cool white light. Ideal for recessed downlights and surface mount fixtures, it features ballast bypass operation and is suitable for horizontal installation. It replaces 26W fluorescent lamps.

• Reduces maintenance costs with a 50,000-hour lifespan.
• Saves 40% of energy compared to conventional fluorescent lamps.
• Features ballast bypass for direct wiring to line voltage.

Product Highlights

This 9W LED lamp is an energy-efficient replacement for CFL lamps, suitable for damp locations and enclosed fixtures.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: PLC-9-H-840-BYP
• Country of Origin: China

Technical Specifications

• Type: Type B Compact Non-Dimmable Horizontal
• Voltage Rating: 120 to 277 V AC
• Wattage: 9 W
• Lumens: 1000 Lumens
• Average Life: 50000 hr
• Color Temperature: 4000 K
• Color Rendering Index (CRI): 82
• Lamp Base Type: Bi-pin G24d, G24D
• Lamp Finish: Frosted
• Start Type: Instant
• Ballast Type: By-Pass
• Fixture Type: Open/Closed
• Operating Temperature: -20 to 45 deg C
• Frequency Rating: 50/60 Hz
• Dimmable: No
• Material: Glass
• Installation Type: Type B, Ballast Bypass
• Installation Orientation: Horizontal
• Power Factor: 0.9
• Total Harmonic Distortion: <20%
• Efficacy: 111.1 Lumen per Watt
• Equivalent Wattage: 26W Fluorescent
• Shape: PLC/T
• Base Type: G24d
• Input Voltage: 120-277V AC
• Operating Frequency: 50/60Hz
• UL Recognized: Yes
• UL Classified: Yes
• California Energy Commission (CEC) Status: Lawful for Sales in California
• Application: Suitable for damp locations and totally enclosed fixtures.
• Lamp Type: LED
