RAB Rab PAR20FA-5.5-9CCT-40D-DIM PAR20 5.5W (40°) 50W equivalency
RAB Rab PAR20FA-5.5-9CCT-40D-DIM PAR20 5.5W (40°) 50W equivalency
RAB Rab PAR20FA-5.5-9CCT-40D-DIM PAR20 5.5W (40°) 50W equivalency
RAB Rab PAR20FA-5.5-9CCT-40D-DIM PAR20 5.5W (40°) 50W equivalency

Rab PAR20FA-5.5-9CCT-40D-DIM PAR20 5.5W (40°) 50W equivalency

Brand: RAB
SKU: PAR20FA-5.5-9CCT-40D-DIM
Availability: In Stock

Ships same day if ordered by 12 pm
$21.51
$21.51
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

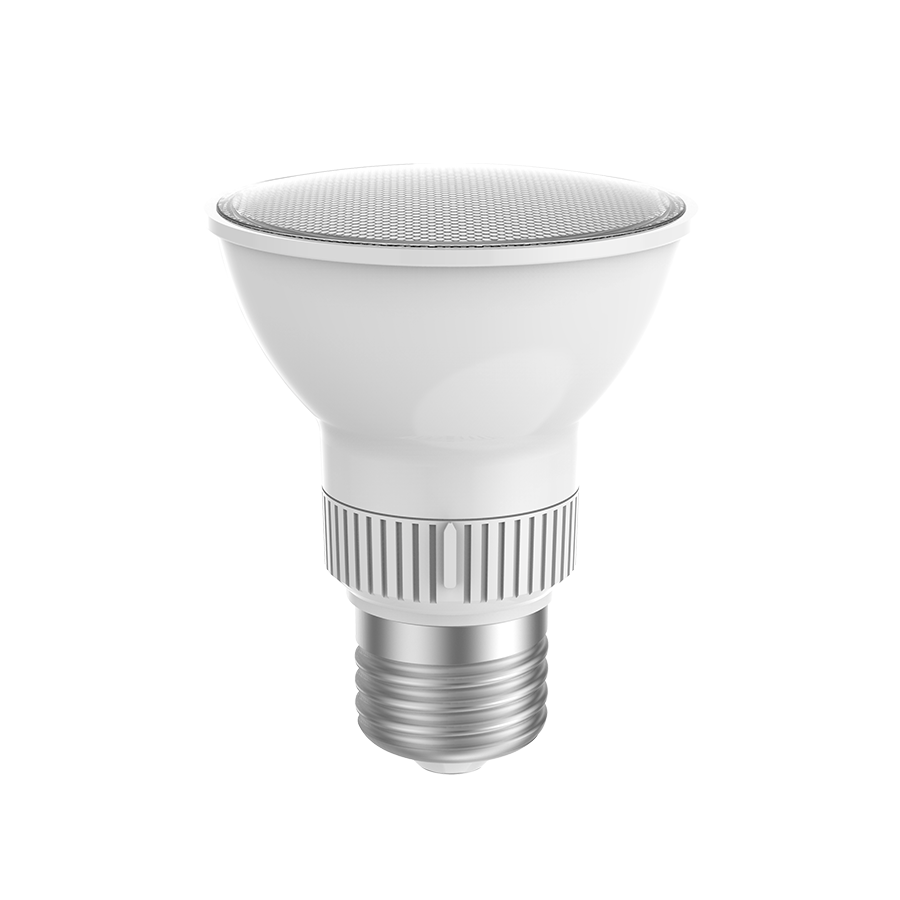

RAB PAR20FA-5.5-9CCT-40D-DIM is a field-adjustable PAR20 LED replacement lamp that delivers 500 lumens at 5.5W and replaces 50W incandescent or halogen PAR lamps. It provides five selectable CCT settings (2700/3000/3500/4000/5000K) via dip switch, a 40° beam angle, and a frosted full-face lens. Rated for wet locations and enclosed fixtures, it is dimmable to 10% on compatible TRIAC/ELV systems and has an L70 rating of 25,000 hours.

  • Field-adjustable correlated color temperature: 2700K, 3000K, 3500K, 4000K, 5000K via dip switch
  • Output: 500 lumens at 5.5W (50W equivalency), 90+ CRI, 40° beam angle
  • Dimmable to 10% on compatible TRIAC/ELV systems; wet-location and enclosed-fixture rated

Product Highlights

Field-adjustable CCT; 500 lm at 5.5W; 40° beam; dimmable to 10%; suitable for dry, damp, or wet locations

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: PAR20FA-5.5-9CCT-40D-DIM
Technical Specifications
Brand
RAB
Model / MPN
PAR20FA-5.5-9CCT-40D-DIM
Product Type
PAR20 LED replacement lamp
Shape
PAR20
Base Type
E26 Edison
Input Voltage
120V
Input Wattage
5.5W
Wattage Equivalency
50W
Lumens
500 lm
Efficacy
≈91 lm/W
Color Accuracy (CRI)
90+ CRI
Color Temperature
Field adjustable: 2700K, 3000K, 3500K, 4000K, 5000K
Beam Angle
40°
Dimmable
Yes
Dimming Type
Compatible TRIAC/ELV, dimmable to 10%
L70 Lifespan
25,000 hours
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Power Factor
0.9
Lens Finish
Frosted, full-face lens
Lens Construction
Single optic and full-face lens
Endcap Material
Aluminum
Enclosure Material
Plastic and aluminum
Environment / Fixture Rating
Suitable for indoor and outdoor use in dry, damp, or wet locations; suitable for use in enclosed and open fixtures
Listings / Certifications
UL listed, RoHS; IESNA LM-79 & LM-80 testing referenced
Color Consistency
<4-step MacAdam Ellipse
R9 Value
R9 may be 0 or negative (as supplied by manufacturer)
