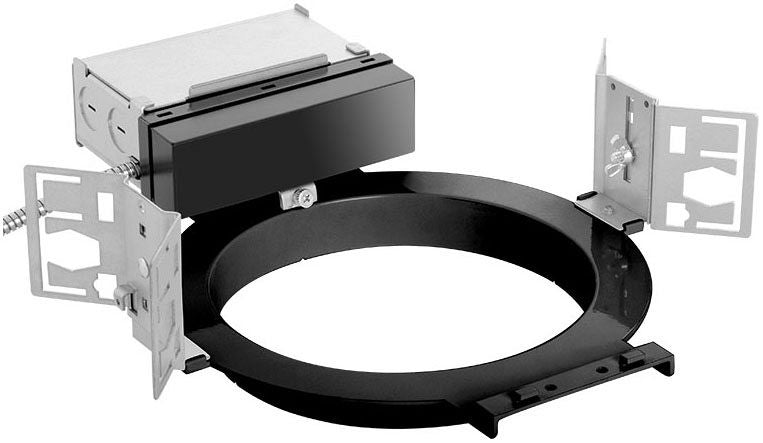

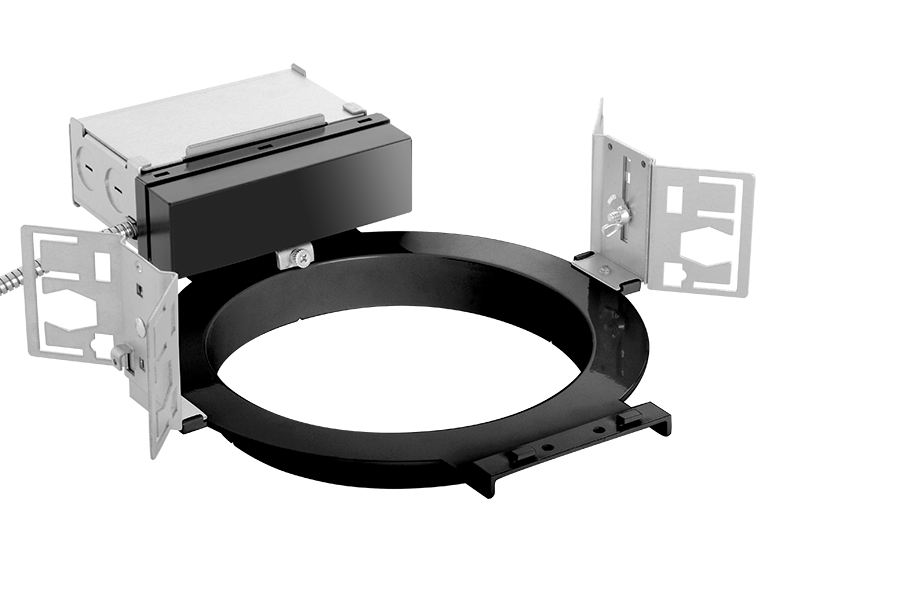

Rab ND6R20D 6in Dnl Rough-In 20 Watt

Product Description

The RAB ND6R20D is a recessed downlight fixture designed for new construction installation. This 20 Watt LED fixture features a die-cast aluminum housing and an integral junction box. It is suitable for wet locations and is UL listed and RoHS compliant. The downlight supports TRIAC/ELV/0 to 10 Volt dimming.

• Air-tight recessed downlight with a 6-inch nominal aperture size.
• Operates on 120 to 277 Volt AC 50/60 Hertz with Class 2 constant current rating.
• Includes thermal protector, nailer bar, and butterfly bracket for easy installation.

Product Highlights

The RAB ND6R20D recessed downlight is ideal for indoor applications requiring efficient and dimmable LED lighting. It offers a long lifespan of 100,000 hours and is suitable for use in damp locations.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: ND6R20D
• Country of Origin: US

Technical Specifications

• Type: DOWNLIGHT
• Air Rating: Air Tight
• Nominal Aperture Size: 6 Inch
• Aperture Shape: Round
• Lamp Type: LED
• Transformer Type: 120 to 277 Volt AC 50/60 Hertz
• Installation: New Construction
• Height: 4.88 in
• Housing Material: Die-Cast Aluminum
• Junction Box Type: Integral
• Application: Wet Location
• Approval: UL
• RoHS Compliant: True
• Width: 7.50 in
• Lamp Wattage: 20 W
• Driver Type: TRIAC/ELV/0 to 10 Volt Dimming
• Class 2 Constant Current Rating: 0.17 Amp at 120 Volt, 0.11 Amp at 208 Volt, 0.1 Amp at 240 Volt, 0.09 Amp at 277 Volt
• Color Rendering Index: 80
• Life in Hour: 100000
• Power Factor: 98 Percent
• Total Harmonic Distortion: Less than or Equal to 20 Percent
• Temperature Rating: -40 Deg F (Minimum Starting), 104 Deg F (Ambient)
• Includes: Thermal Protector, Nailer Bar and Butterfly Bracket
• Mounting: Ceiling
• Voltage Rating: 120/277 V
• Brand: RAB
• Manufacturer: RAB Lighting Inc.
• Series: ND Series
