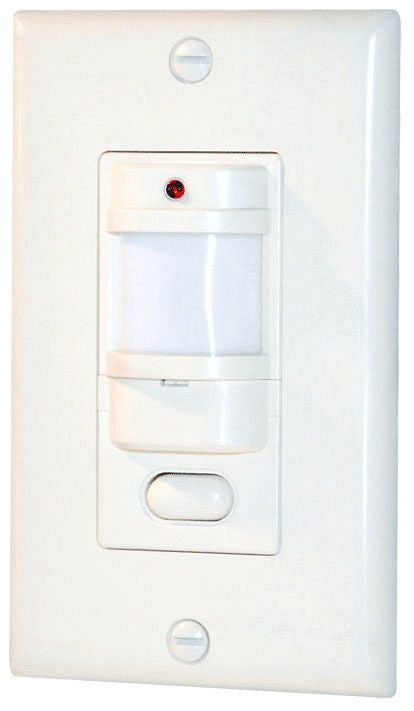

RAB LOS800W/120 Occupancy Sensor 800W 120V Wall White

Product Description

The RAB LOS800W/120 is an occupancy sensor designed for wall mounting with a load capacity of eight hundred watts at one hundred twenty volts. This sensor is suitable for commercial and indoor environments, including wet locations.

• Electrical rating: Eight hundred watts at 120 volts
• Sensor type: Passive infrared with a 180-degree field of view
• Time delay: Adjustable from eight seconds to fifteen minutes

Product Highlights

This occupancy sensor is efficient for maintaining lighting only when spaces are occupied, thus saving energy.

Product Information

Standard Information

• Manufacturer: RAB Lighting
• Catalog Number: LOS800W/120

Technical Specifications

• Dimensions: 1-5/16 inches width x 2-1/4 inches depth x 4 inches height
• Mounting Type: Wall
• Application: Commercial, indoor, wet location
• Approval: UL (Canada and US)
• Load Rating: 800 watts, 6.7 amps at 120 volts
• Area Coverage: 1000 square feet
• Field of View: 180 degrees
• Wall Plate Type: Decorator (Included)
• Load Type: Incandescent/Fluorescent
