Rab Lighting YBLEDH Yardblaster Field-Adjustable 120/100/80W (Field-adjustable) YBLEDH/PCT

Brand: RAB LIGHTING
SKU: YBLEDH
Availability: In Stock

Ships same day if ordered by 12 pm
$238.15
$238.15
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

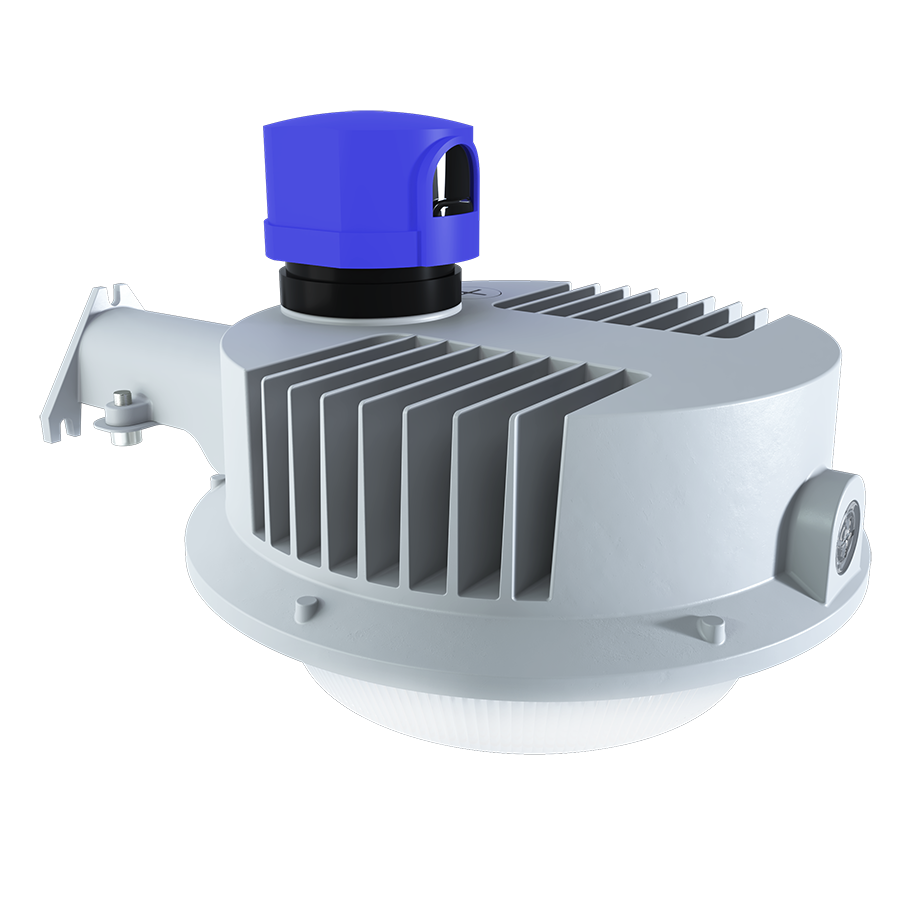

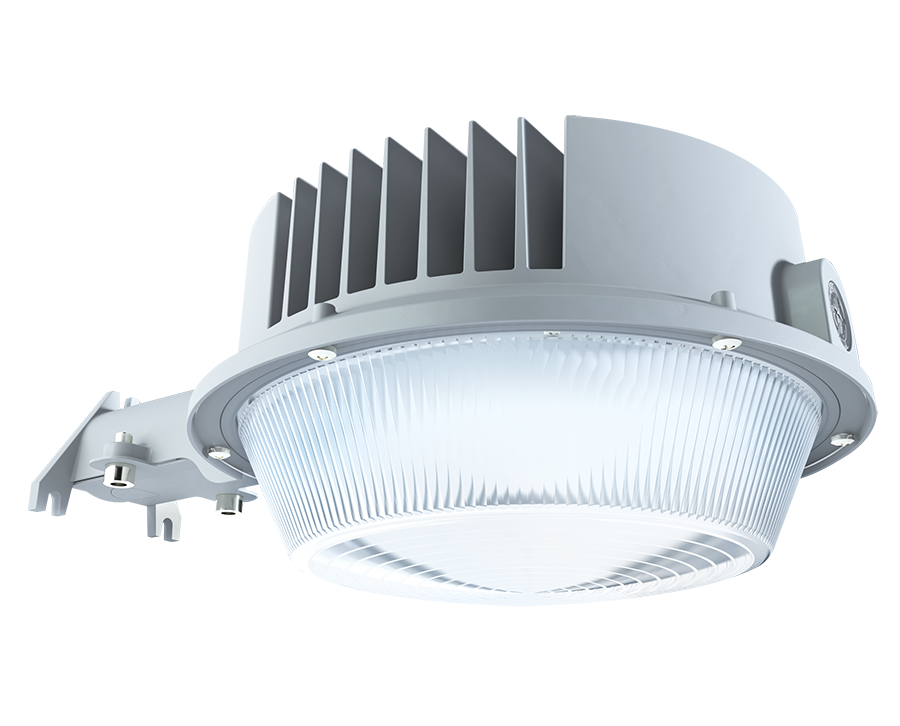

Rab Lighting YBLEDH is a field-adjustable Yardblaster area light offering selectable wattages of 120/100/80W and selectable color temperatures of 3000K, 4000K, and 5000K. It operates on 120-277V with an integrated dusk-to-dawn photocell and 0-10V dimming to 10%. Constructed with a die-cast aluminum housing, polycarbonate lens, and PET reflector, it is IP65 rated, includes 6 kV surge protection, and has a 100,000-hour L70 LED lifespan.

  • Field-adjustable wattage: 120W / 100W / 80W; factory default 120W
  • Selectable color temperatures: 3000K, 4000K, 5000K; integrated 120-277V photocell and 0-10V dimming
  • IP65 rated die-cast aluminum housing with polycarbonate lens, PET reflector, 6 kV surge protection

Product Highlights

Field-adjustable 120/100/80W LED area light with integrated photocell, 0-10V dimming, IP65 rating, and 100,000-hour L70 lifespan

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: YBLEDH
  • Country of Origin: Cambodia
Technical Specifications
Model
YBLEDH
Manufacturer Part Number
YBLEDH
Watts
120/100/80W (field adjustable)
Default Wattage
120W (factory default)
Color Temperature
Field adjustable 3000K / 4000K / 5000K (factory default 4000K)
Lumens
11,422 - 17,328 lm
Efficacy
132.5 - 163.1 lm/W
Color Accuracy (CRI)
82 - 85
L70 Lifespan
100,000 Hours
Type
Constant Current LED
Input Voltage
120-277V, 50/60 Hz
Input Current
120V: 1.00A/0.85A/0.68A (for 120/100/80W) ; 208V: 0.58A/0.48A/0.39A ; 240V: 0.50A/0.42A/0.33A ; 277V: 0.42A/0.37A/0.29A
Input Watts
78.5 - 119.4W
Dimming
0-10V dimming standard, dims down to 10%
Photocell
Integrated 120-277V dusk-to-dawn photocell
Surge Protection
6 kV
THD
Examples: 5.25% at 120V, 11.05% at 277V (varies by wattage)
Power Factor
120W: 99.8% at 120V, 96.3% at 277V; 100W: 99.7% at 120V, 96.3% at 277V; 80W: 99.6% at 120V, 96.3% at 277V
BUG Rating
120W: B3 U3 G2 ; 100W: B3 U3 G2 ; 80W: B3 U3 G1
LEDs
Long-life, high-efficiency surface-mount LEDs
Color Uniformity
ANSI C78.377-2017 compliant
IP Rating
IP65
Certifications
UL Listed; Suitable for Wet Locations; IESNA LM-79 & LM-80 tested; DLC listed (family may be Standard or Premium)
Cold Weather Starting
Minimum starting temperature -40 F (-40 C)
Maximum Ambient Temperature
Up to 104 F (40 C)
Housing
Precision die-cast aluminum housing and arm
Effective Projected Area (EPA)
0.27
Lens
Polycarbonate lens
Reflector
Polyethylene Terephthalate (PET)
Mounting
Mounts on wall or existing arm/pole YARM24 (1 5/8" diameter pipe)
