Description

Product Description

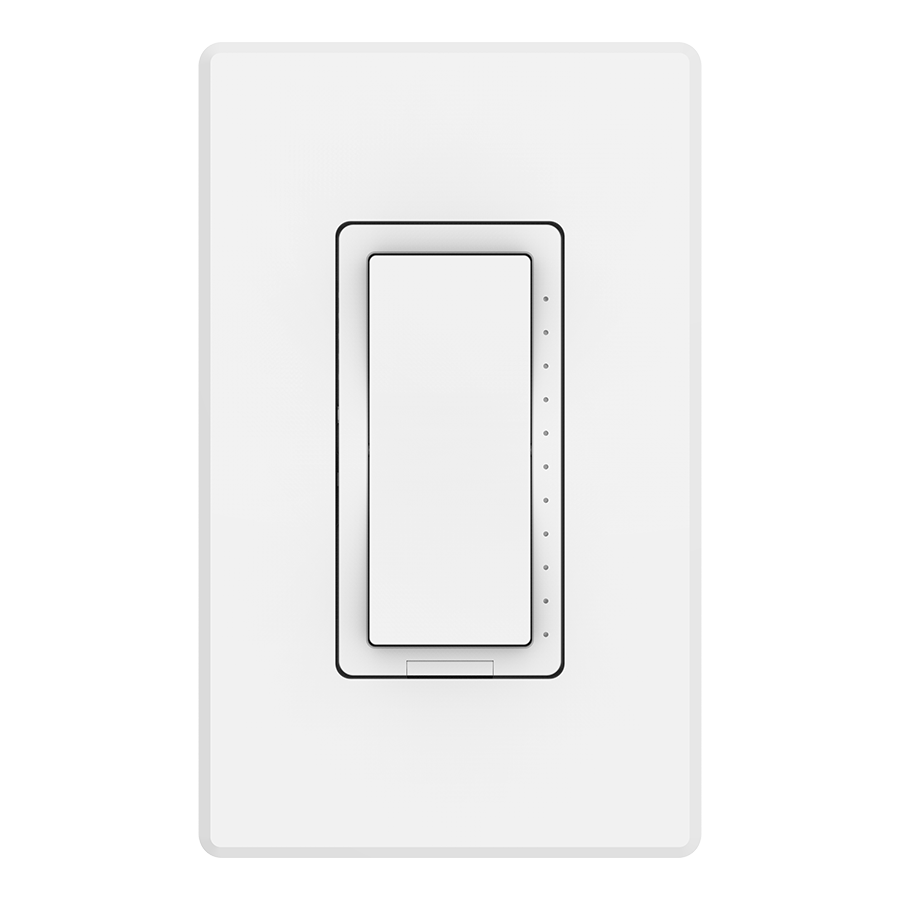

Rab Lighting XDIM is an in-wall dimmer paddle for switching and dimming local loads. The XDIM provides selectable forward/reverse phase dimming, fade on/off and rapid full-on modes, and supports single-pole or 3-way wiring. It is rated for 120V operation and supports LED/CFL up to 300W and incandescent/halogen/ELV up to 500W with an optional neutral connection and included mounting hardware.

  • Selectable phase dimming (forward/reverse) with fade on/off and rapid full-on; supports triac/ELV loads
  • Load capacities: LED/CFL up to 300W, incandescent/halogen/ELV up to 500W, MLV up to 400VA; single-pole or 3-way compatible
  • Installation features: 120V input, neutral optional, requires US wallbox (recommended 2 inch depth, minimum 1.46 inches); includes face plate bracket, back plate, and mounting screws

Product Highlights

In-wall paddle dimmer with selectable forward/reverse phase dimming; 120V rating; supports LED/CFL up to 300W and incandescent/halogen/ELV up to 500W; UL 1472 listed; DLC NLC qualified.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: XDIM
  • Country of Origin: Cambodia
Technical Specifications
Brand
Rab Lighting
MPN
XDIM
Model
XDIM
Product Type
Dimmer
Product Name
Xdim Dimmer Paddle
Input Voltage
120V
Operating Frequency
60 Hz
Power Rating
500W
Load Capacity - LED/CFL
300W
Load Capacity - Incandescent/Halogen/ELV
500W
Load Capacity - MLV
400VA
Dimming Control Type
Selectable phase: Forward/Reverse (triac/ELV); 0-10V option on some models
Phase Detection / Self Calibration
Selectable via dip switch (F - Forward Phase, A - Auto Detect, R - Reverse Phase); power cycle required after adjustment
Dimming Modes
Fade on/off and rapid full-on
Wiring
Supports single-pole or 3-way
Neutral Wire Required
Optional (required for power monitoring and some wireless functions)
Mounting
In-wall; requires US wallbox (recommended 2.00 inch depth; minimum 1.46 inches); single or multi-gang compatible
Shape
Rectangle
Enclosure Material
Plastic
Key Type
Paddle
Package Includes
(1) Dimmer; (1) Face plate bracket; (1) Back plate; (2) Mounting screws
Operating Temperature
32
