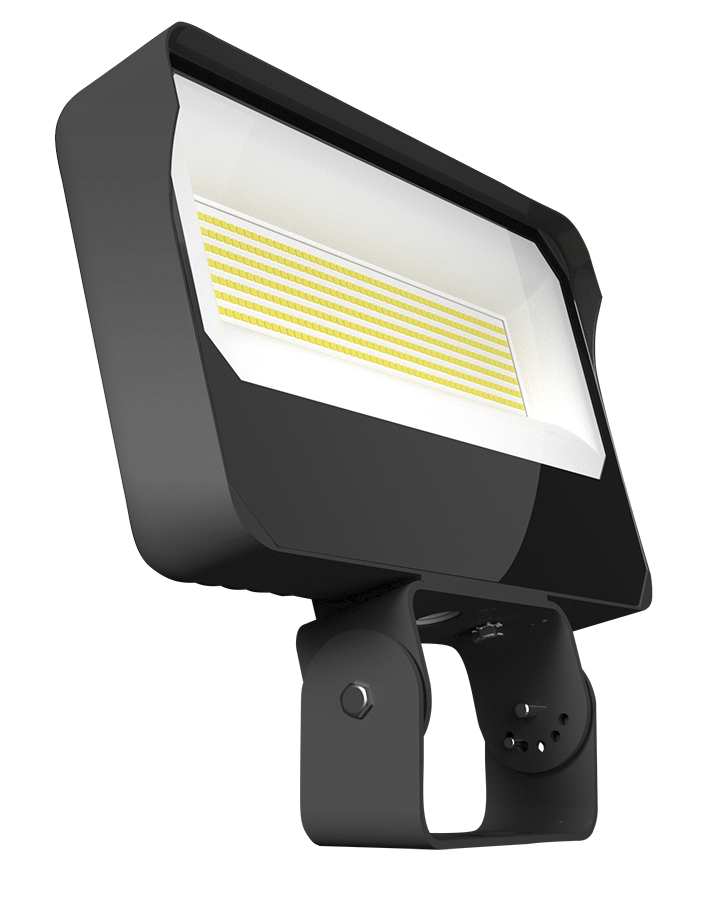

Rab Lighting X34XLT Field-Adjustable Floodlight 130/110/95W (7H x 7V)

Product Description

The Rab Lighting X34XLT is a field-adjustable LED floodlight with a trunnion mount that offers selectable wattages (130/110/95W) and selectable correlated color temperatures (3000K, 4000K, 5000K). It delivers 14,615 to 20,065 lumens, uses a constant-current driver (120-277V) with 0-10V dimming capability, includes an integrated photocell with on/off switch, and is IP65 rated with a tempered glass lens and die-cast aluminum housing for outdoor wet-location use.

• Field-adjustable wattage (130/110/95W) and selectable CCT (3000K/4000K/5000K); lumen output 14,615–20,065 lm
• Constant-current driver 120-277V, 0-10V dimming capable; integrated photocell with on/off switch; input current ranges provided per voltage
• Die-cast aluminum housing, tempered glass lens, IP65 wet-location rating, 100,000-hour L70 LED lifespan, trunnion mount with 30-degree tilt increments

Product Highlights

Selectable 95–130W output, 14,615–20,065 lumens, wide 7H x 7V distribution, IP65, 0-10V dimming

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: X34XLT
• Country of Origin: Cambodia

Technical Specifications

• Brand: RAB Lighting
• MPN: X34XLT
• Model: X34 Field-Adjustable Floodlight (XL Trunnion)
• Type: Field-adjustable LED floodlight, trunnion mount
• Wattage: 130/110/95 W (factory default 130W)
• Input Voltage: 120-277 V
• Driver: Constant current, Class 1, 120-277V, 50/60 Hz
• Dimming: 0-10V dimming capable (dims to 10%)
• Color Temperature: Selectable 3000K / 4000K / 5000K (factory default 4000K)
• Lumens: 14,615 - 20,065 lm (depending on wattage and CCT)
• Efficacy: 135.3 - 162.5 lm/W
• CRI: 83 - 85
• L70 Lifespan: 100,000 hours
• Input Current: 120V: 1.13A / 0.98A / 0.85A; 208V: 0.63A / 0.53A / 0.46A; 240V: 0.55A / 0.46A / 0.40A; 277V: 0.49A / 0.43A / 0.38A
• THD: 130W: 4.1% at 120V, 7.2% at 277V; 110W: 4.1% at 120V, 7.9% at 277V; 95W: 4.0% at 120V, 8.8% at 277V
• Power Factor: 130W: 99.8% @120V / 96% @277V; 110W: 99.8% @120V / 95.1% @277V; 95W: 99.7% @120V / 93.9% @277V
• IP Rating: IP65
• Photocell: Integrated photocell included with on/off switch
• Housing: Die-cast aluminum
• Lens: Tempered glass
• Reflector: Polyethylene terephthalate (PET) / high-reflectance white reflector
• Tilt/Adjustability: Trunnion with tilt -90 to +90; tilt increments 30 degrees
• Distribution/Beam Angle: Wide NEMA 7H x 7V (7H x 7V)
• Effective Projected Area (EPA): 1.1
• Cold Weather Starting: Minimum starting temperature -40 F (-40 C)
• Maximum Ambient Temperature: Suitable up to 104 F (40 C)
• Mounting Type: Trunnion (tilt adjustable); slipfitter available for some models

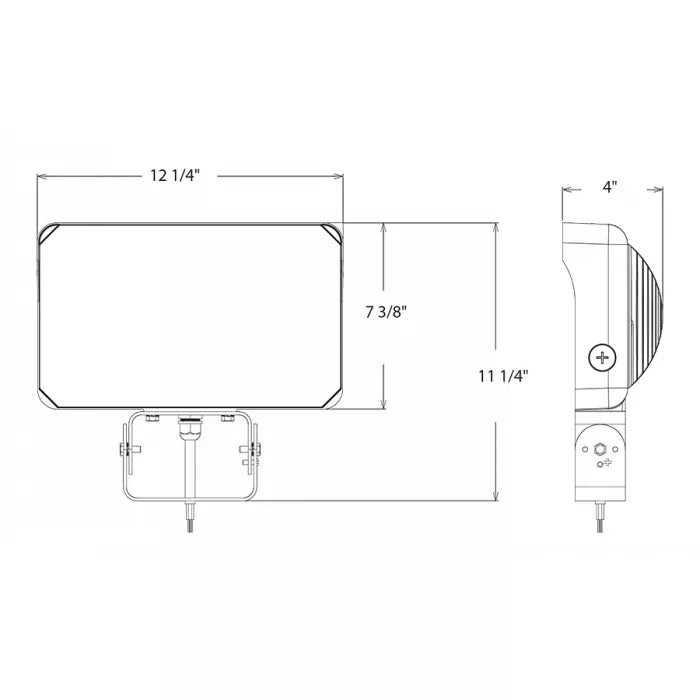

• Dimensions: 4.33 in (H) x 15.75 in (L) x 13 in (W)
• Weight: 7.4 lb
• Certifications: UL listed for wet locations; DLC listed (family), DLC Premium (some models); RoHS compliant
• Country of Origin: Cambodia
