Rab Lighting X34-250T/480 High-Output Field-Adjustable Floodlight 250W (Trunnion)

Brand: RAB LIGHTING
SKU: X34-250T/480
Availability: Out Of Stock
$1,137.97
$1,137.97
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

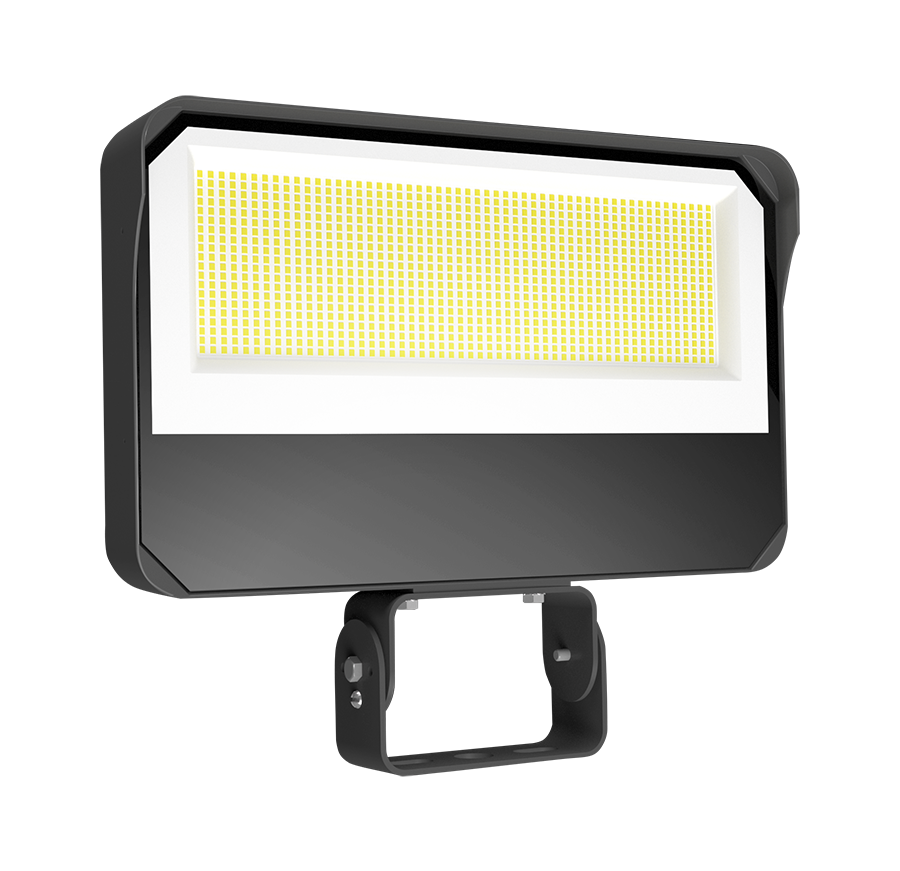

Rab Lighting X34-250T/480 is a high-output, field-adjustable LED floodlight configured for 480V input. The fixture offers field-selectable wattage (250/188/125 W) and color temperature (3000K/4000K/5000K), integrated photocell, and standard 0-10V dimming. Constructed with a die-cast aluminum housing, tempered glass lens, and IP66 rating, the luminaire delivers up to approximately 39,466 lumens and an L70 life of 50,000 hours for outdoor floodlighting applications.

  • Field-selectable wattage (250/188/125 W) and field-adjustable color temperature (3000K/4000K/5000K).
  • Configured for 480V input (50/60 Hz) with 0-10V dimming and integrated photocell; surge protection 4 kV.
  • Die-cast aluminum housing, tempered glass lens, IP66 rating, NEMA 7H x 7V beam spread, 50,000-hour L70 lifespan.

Product Highlights

Field-adjustable 250W LED floodlight for 480V service with 0-10V dimming, integrated photocell, IP66 rating, and 50,000-hour LED life.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: X34-250T/480
  • Country of Origin: Cambodia
Technical Specifications
Brand
RAB Lighting
Manufacturer Part Number
X34-250T/480
Model
X34-250T/480
Type
High-output field-adjustable floodlight
Wattage (Selectable)
250/188/125 W; factory default 250W at 100%
Input Voltage
480V
Input Frequency
50/60 Hz
Input Current
0.53 A
Input Watts Range
116.3-243.2 W
Lumens
19,330 - 39,466 lm
Efficacy
148.2 - 182.6 lm/W
Color Temperature
Field adjustable 3000K / 4000K / 5000K
Color Rendering Index (CRI)
82 - 85
L70 Lifespan
50,000 Hours
Driver
Constant Current, Class 1, 480V
Dimming
0-10V dimming (standard), dims down to 10%
Surge Protection
4 kV
Photocell
Integrated photocell included with on/off switch
Beam Spread
NEMA 7H x 7V
LED Type
Long-life, high-efficacy surface-mount LEDs; 7-step MacAdam Ellipse binning
IP Rating
IP66 (dust and water)
Certifications
UL Listed; IESNA LM-79 & LM-80 testing; DLC listing (product family)
EPA
1.2
Housing Material
Die-cast aluminum
Mounting Type
Trunnion mount
Tilt Range
-90 to +90 degrees (tilt increments 30 degrees)
Lens
Tempered glass
Reflector Material
Polyethylene Terephthalate (PET)
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
Minimum starting temperature -40 F (-40 C)
Max Ambient Temperature
Max power: 104 F (40 C); Middle power: 123 F (51 C); Low power: 142 F (61 C)
Country Of Origin
Cambodia
Dimensions (L x W x H)
19.37 in x 19.13 in x 6.69 in
Weight
15.7 lb
UPC
192552024556
