Product Description

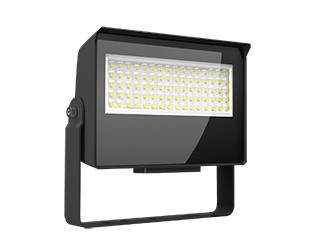

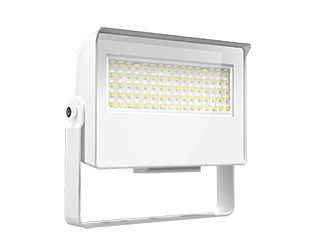

The RAB LIGHTING X22-35W is a versatile floodlight designed for both efficiency and performance. This model allows users to adjust the light output among four different wattages: 35W, 30W, 25W, and 20W. It also features a selectable color temperature option, offering settings of 3000K, 4000K, or 5000K, enabling precise lighting control for various environments.
- IP65 rating ensures protection against dust and water.

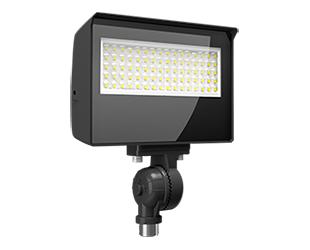

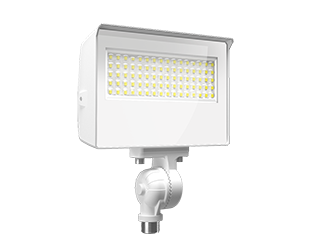

- Robust knuckle mount with a highly adjustable swivel arm.
- Integrated photocell for automatic on/off functionality.
Product Highlights
The floodlight’s unique optical adjustment feature enables 90°, 75°, and 55° settings to optimize light direction.
Product Information
Standard Information
-
Brand: RAB LIGHTING
-
MPN: X22-35W
Technical Specifications
-
Power Consumption: 19.7-35.7W
-
Wattage: 35/30/25/20W
-
Luminous Flux: 2,832-5,286 lm
-
Efficacy: 125.9-168.7 lm/W
-
Color Temperature: 3000/4000/5000K
-
Color Accuracy: 81-84 CRI
-
LED Lifespan: 100,000 hours
-
Input Voltage: 120-277V, 50/60 Hz
-
Input Current at 120V: 0.29A
-
Input Current at 208V: 0.17A
-
Input Current at 240V: 0.15A
-
Input Current at 277V: 0.13A
-
Total Harmonic Distortion: 11.6% at 120V, 11.54% at 277V
-
Power Factor: 98.8% at 120V, 92.3% at 277V
-
Surge Protection: L/N-PE: 2.5kV, L-N: 2.5kV
-
Optical Adjustment: 90°, 75°, 55°
-
Dimming: 0-10V, down to 10%
-
Minimum Starting Temperature: -30°C (-22°F)
-
Maximum Ambient Temperature: 50°C (122°F)
-
Enclosure: Die-cast aluminum
-
Lens Material: Tempered glass
-
Mounting: Robust knuckle mount with 180° adjustable swivel arm
-
IP Rating: IP65
-
Certifications: UL Listed, IESNA LM-79 & LM-80 Tested
-
DLC Listed: Yes, ultra-efficient product
-
Photocell: Integrated with on/off switch
-
Green Technology: Mercury and UV free
