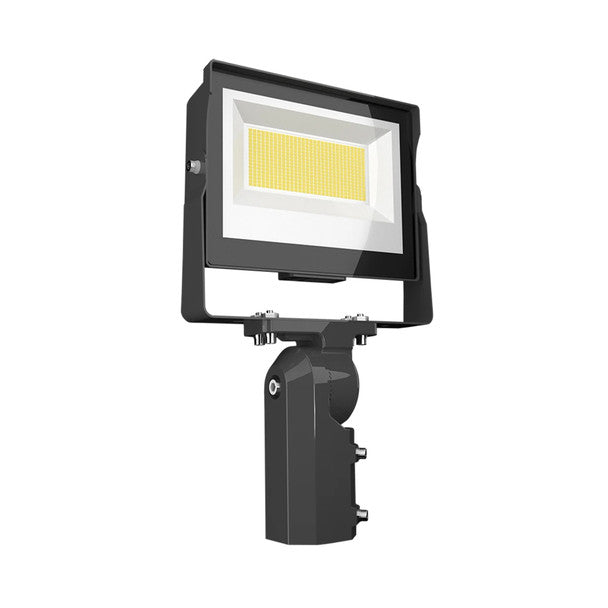

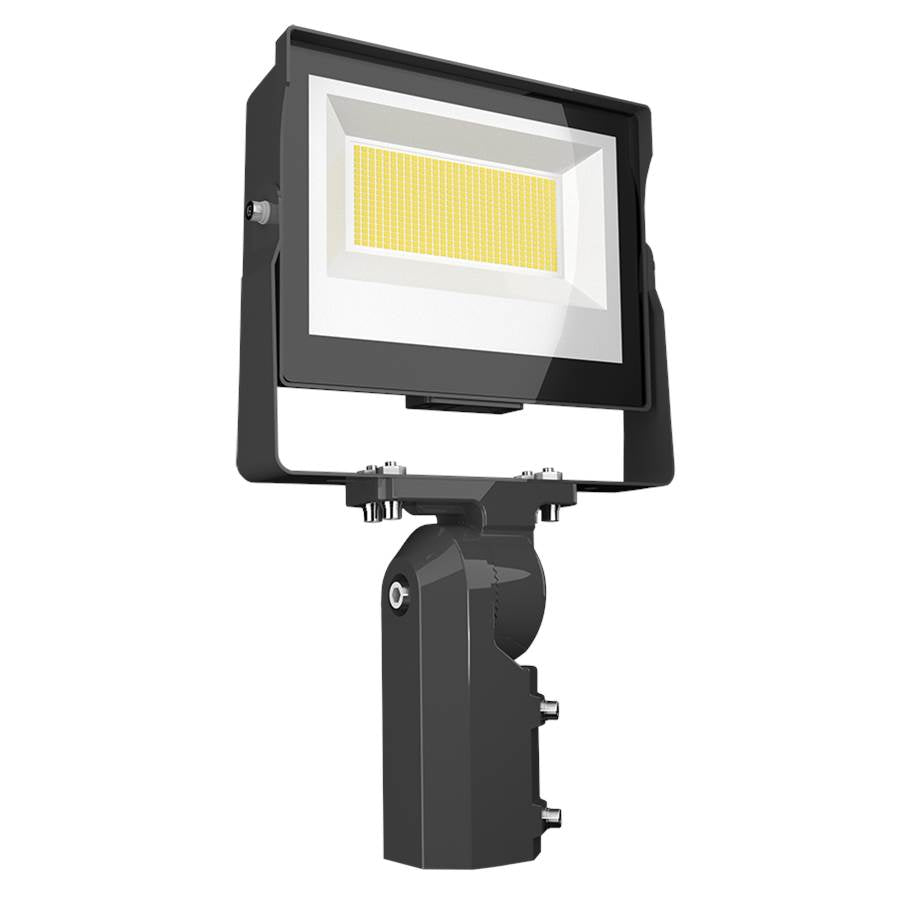

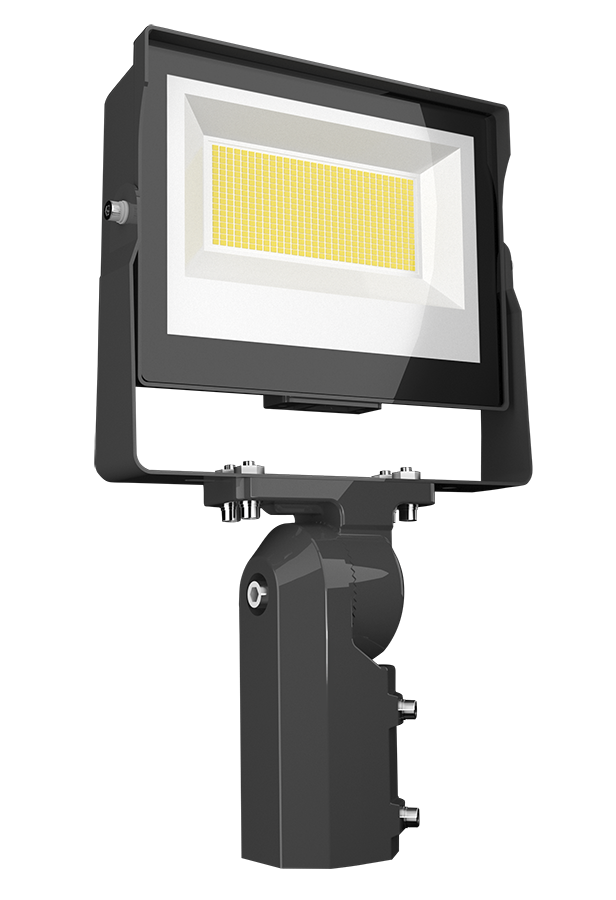

Rab Lighting X17XFU80SF Floodlights 5356-11509 Lumens X17 Adjustable 80/60/40W Field Adjustable CCT 5000/4000/3000K Slipfitter

Product Description

The RAB LIGHTING X17XFU80SF floodlight provides 5356-11509 lumens and adjustable 80/60/40W field adjustable CCT 5000/4000/3000K. This adjustable floodlight offers field-adjustable wattage settings to meet specific lighting needs. It operates on 120-277V and has a NEMA 7H x 7V/IP65 enclosure and a 100,000-hour LED lifespan.

• 3-Way field adjustability
• Slipfitter mount
• Tempered glass lens and polycarbonate reflector

Product Highlights

The X17XFU80SF floodlight is ideal for illuminating parking lots, building exteriors, pathways, warehouses, loading docks, construction sites, parks, recreational facilities, sports fields, yards, and driveways.

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: X17XFU80SF
• Country of Origin: CN

Technical Specifications

• Lamp Type: LED
• Lamp Watts: 40
• Housing Color: Bronze
• Amperage Rating: 0.80, 0.50, 0.40, 0.35 A
• Application: For Wet Locations
• Average Life: 100000 hrs
• Ballast Type: Constant Current
• Color Rendering Index CRI: 83 to 85 CRI
• Color Temperature: 3000, 4000, 5000 K
• Enclosure: NEMA 7H x 7V/IP65
• Fixture Wattage: 39 W
• Housing Finish: Bronze
• Housing Material: Aluminum
• Includes: Dimming Driver
• Light Output: 130 Lumens/W
• Lighting Technology: Mercury/UV-Free
• Lumens: 5356 Lumens
• Manufacturer Part Number: X17XFU80SF
• Mounting Type: Slipfitter
• Series: X17
• Standards/Approvals: UL Listed|BAA Compliant|RoHS-Compliant|DLC Listed|IESNA LM-79 and LM-80|ANSI C78.377-2017
• Type: Adjustable
• Voltage Rating: 120, 208, 240, 277 V
• Watts: 80W
• Efficacy: 141.2-163.9 lm/W
• Color Accuracy: 81-83 CRI
• L70 Lifespan: 100,000 Hours
• 120V: 0.67A/0.50A/0.33A
• 208V: 0.38A/0.29A/0.19A
• 240V: 0.33A/0.25A/0.16A
• 277V: 0.29A/0.22A/0.14A
• Input Watts: 39.07-81.36W
• Field Adjustability: 3-Way Field Adjustable
• Field Adjustable Light Output: 80/60/40W (factory default 80W) Color temperature (selectable by 3000K, 4000K and 5000K)
• Compliance: UL Listed Suitable for wet locations IESNA LM-79 & LM-80 Testing RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• IP Rating: IP65
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. DLC Product Code: S-3JPGGH
• Driver: 80W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.67A, 208V: 0.38A, 240V: 0.33A, 277V: 0.29A 60W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.50A, 208V: 0.29A, 240V: 0.25A, 277V: 0.22A 40W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 0.33A, 208V: 0.19A, 240V: 0.16A, 277V: 0.14A
• Dimming Driver: Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
• THD: <15%
• Power Factor: >0.90
• Photocell: 120-277V selectable photocell that can be turned on and off.
• Surge Protection: 6 kV
• Shorting Cap: Shorting Cap included for Twistlock Receptacle
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Ambient Temperature: Max Power Temp Rating: 104°F (40°C ) Middle Power Temp Rating: 44°C (112°F) Low Power Temp Rating: 51°C (124°F)
• Housing: Precision die-cast aluminum
• Tilt Increment: Rotates in 6 degree increments
• Effective Projected Area: EPA = 0.79
• Lens: Tempered glass
• Reflector: Polycarbonate
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Slipfitter with 180° pivot available for mounting on 2 3/8" tenon
• NEMA Type: NEMA Beam Spread 7H x 7V
• Wattage: 40/60/80 Watt
• Metal Halide Equivalent: 175-400 Watt
• Color Temperature (CCT): 3000/4000/5000 Kelvin
• Life Rating: 100,000 Hours
• CRI: 80+
• Beam: Flood
• Light Distribution: 7H x 7V NEMA
• Voltage: 120/208/240/277
• Frequency: 50/60 Hz
• Operating Temperature: -40°F to 104°F
• Dimmable: Yes
• NEMA Receptable: No
• Photocontrol: Integrated, On / Off.
• Motion Sensor: No
• Lens Material: Tempered Glass
• Location Rating: Wet
• UL: Yes
• ETL: No
• RoHS: Yes
• Energy Star: No
• FCC: Yes
• Title 20: No
• Title 24: No
• DLC: Yes
• DLC ID: PLTHPHCP1VH8
• Product Type: Flood Light
• Light Source: Led
• Ip Rating: IP65
• Lifespan: 100000 hr
• Material: Aluminum
• Listing: UL,IESNA-LM-79,IESNA-LM-80,IP Rated
• Color Rendering Index: 83-85
• Manufacturer: RAB Lighting
• Brand / Product Series: RAB
• Model: X17XFU80SF
• Enclosure Type: NEMA 7H x 7V/IP65
• Insulation Type: Class 2
• Lens Type: Tempered Glass
• Manufacturer Name: RAB Lighting, RAB Lighting Inc.
