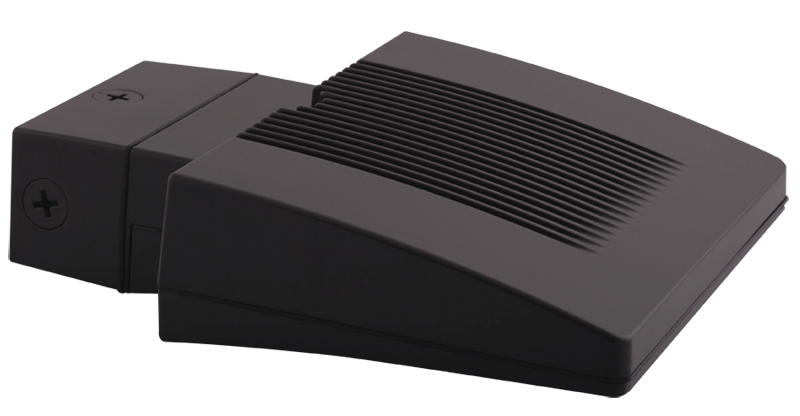

Rab Lighting WPLED18/PC Lpack Wallpack 18W Cool LED Backplate & Junction Box/120V Pc Bronze

Product Description

The Rab Lighting WPLED18/PC Lpack Wallpack is an 18W cool LED wallpack with a backplate and junction box, operating at 120V. It features a bronze polyester powder-coated finish and is suitable for wet locations. This LED wallpack replaces 100W Metal Halide Wall packs and has a 100,000-hour LED lifespan.

• Features a semi-specular, vacuum-metallized polycarbonate reflector
• Housing is constructed from die-cast aluminum
• Includes a 120V button photocell

Product Highlights

This RAB Lighting LED wallpack is RoHS compliant and suitable for wet locations, offering long-lasting performance and energy efficiency.

Product Information

Standard Information

• Brand: Rab Lighting
• Manufacturer Part Number: WPLED18/PC
• Country of Origin: Cambodia

Technical Specifications

• UPC: 01981319610
• Size: 9-1/2 Inch W x 10-5/8 Inch D x 2-1/4 Inch H
• Type: Photocell
• Finish: Bronze Polyester Powder Coated
• UNSPSC: 39112102
• Approval: UL
• Category: Led Wallpacks
• Lamp Type: LED
• Made in USA: Yes
• Lamp Wattage: 18 W
• Manufacturer: RAB Lighting
• Sub-Category: Outdoor Wall Light
• UPC 12 Digit: 019813196107
• Catalog Number: WPLED18/PC
• Housing Material: Die-Cast Aluminum
• Manufacturer Brand: RAB Lighting
• Unique Product Key: 5898887
• Comm Code Enhanced: 72552
• Catalog Description: WALL PACKS 2859 LUMENS WPLED 18W 120V PHOTOCELL BRONZE
• Product Description: RAB WPLED18/PC Lpack Wallpack 18W Cool Led Backplate & Junction Box/120V Pc Bronze
• Lamp/Ballast Voltage: 120/208/240/277 V
• Additional Information: RoHS Compliant; Reflector Material Semi-Specular Vacuum-Metallized Polycarbonate; Intensity 2044 Lumen; Color Temperature 5000 K; Rated Life in Hour 100000; Color Rendering Index 66; Current Rating 0.17 Ampere; Includes 120 V Button Photocell, Backplate,
• Full Technical Description: Photocell Type; 9-1/2 Inch W X 10-5/8 Inch D X 2-1/4 Inch H Size; Bronze Polyester Powder Coated Finish; UL Approval; LED Lamp Type; 18 W Lamp Wattage; Die-Cast Aluminum Housing Material; 120/208/240/277 V Lamp/Ballast Voltage; WPLED[R], LPACK[R] Brand; RoHS Compliant; Reflector Material Semi-Specular Vacuum-Metallized Polycarbonate; Intensity 2044 Lumen; Color Temperature 5000 K; Rated Life in Hour 100000; Color Rendering Index 66; Current Rating 0.17 Ampere; Includes 120 V Button Photocell, Backplate, Junction Box, Mounting Arm, O-ring Seal and Screw; Application Wet Location
• Watts: 18W
• Color Temperature: 5000K (Cool)
• Lumens: 2,859 lm
• Efficacy: 136.1 lm/W
• Color Accuracy: 70 CRI
• L70 Lifespan: 100,000 Hours
• 120V: 0.15A
• 208V: 0.09A
• 240V: 0.08A
• 277V: 0.07A
• Input Watts: 21W
• Driver: Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.15A, 208V: 0.09A, 240V: 0.08A, 277V 0.07A
• Dimming Driver: Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
• THD: 14.21% at 120V, 10.51% at 277V
• Power Factor: 97.4% at 120V, 95.1% at 277V
• Photocell: 120V Button photocell included. Photocell is only compatible with 120V.
• UL Listed: Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
• DLC Product Code: P0000175I
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Equivalent to 100W Metal Halide
• LED: Multi-chip, high-output, long-life LED
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Thermal Management: Superior heat sinking with external Air-Flow fins
• Housing: Die-cast aluminum housing, lens frame and mounting arm
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws
• Patents: The design of WPLED18 is protected by US patent D608,040, Canada patent 138280, and China patent CN301649064S
• Replacement: Replaces 150W Metal Halide
• BUG Rating: B1 U0 G0
• Rated Lamp Life: 100000
• Voltage: 120
• Color Tone: Cool White
• ECCN: EAR99
• Country of Origin: US - United States
• Mounting Type: Arm
• Housing Color: Bronze
• Model: WPLED18/PC
• Brand: RAB Lighting
• SKU: 5874244
• UOM: each
• Rated Power: 18W
