Rab Lighting WP3XFU120 Wall Pack 80/100/120W (Field Adjustable) WP3XFU120

Brand: RAB LIGHTING
SKU: WP3XFU120
Availability: Out Of Stock
$399.84
$399.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

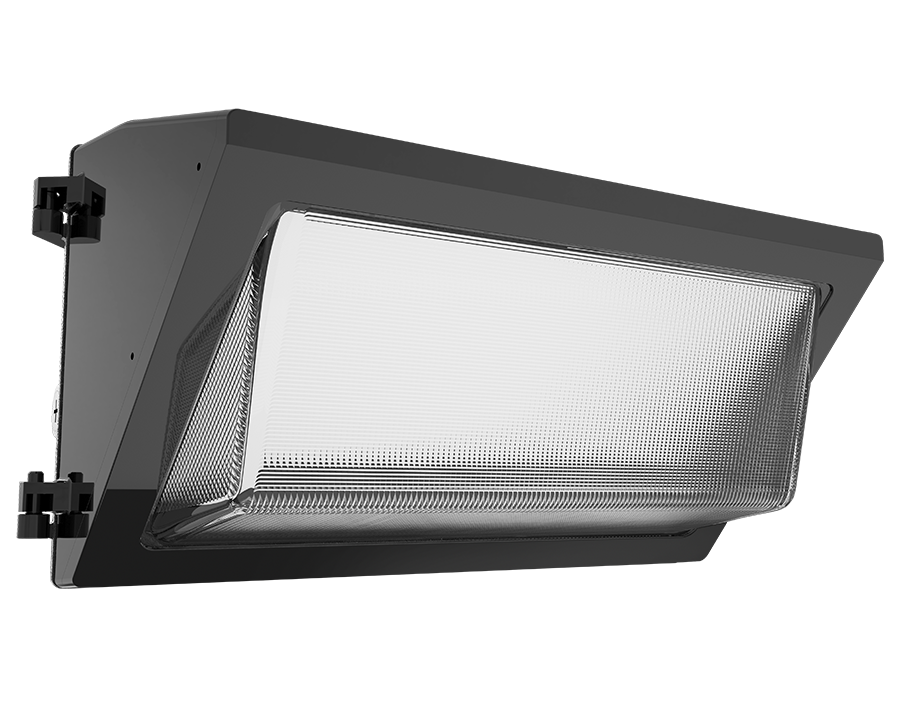

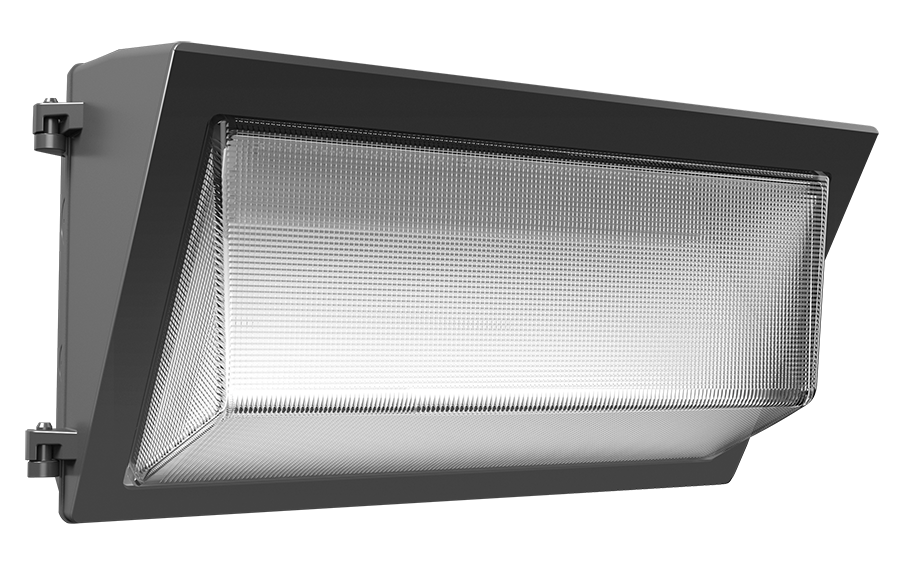

Rab Lighting WP3XFU120 is an outdoor LED wall pack with a field-adjustable wattage (80/100/120 W) and a 18,718 lumen output. The fixture operates on 120–277 V, offers selectable color temperatures of 3000K/4000K/5000K, and includes a constant-current driver with 0-10V dimming. The die-cast aluminum housing with tempered glass lens and IP65 rating is intended for wall-mounted exterior and flood lighting applications.

  • Field-adjustable wattage: 120 W factory default; selectable to 100 W or 80 W; rated output 18,718 lumens
  • Electrical: 120–277 V input; constant-current driver; 0-10V dimming; integrated selectable 120–277 V photocell
  • Construction and ratings: die-cast aluminum housing, tempered glass lens, IP65 for wet locations, L70 lifespan 100,000 hours

Product Highlights

CCT-selectable LED wall pack with field-adjustable wattage, 120–277 V operation, IP65 wet-location rating, and integrated photocell.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: WP3XFU120
  • Country of Origin: Unknown
Technical Specifications
Brand
Rab Lighting
Manufacturer Part Number
WP3XFU120
Model / Series
WP3 / WP3 XFU
Lamp Type
LED
Watts
120 W (field-adjustable to 100 W and 80 W); factory default 120 W
Lumens
18,718 lm
Input Voltage
120–277 V
Power Consumption
120 W (factory default); selectable 100 W; selectable 80 W
Color Temperature
3000K, 4000K, 5000K (selectable)
Color Rendering Index (CRI)
80 CRI
Dimming
0-10V dimming (dims to 10%)
Photocell
Integrated 120–277 V selectable button photocell (can be disabled)
Driver Type
Constant current driver, Class 1, 120–277 V, 50/60 Hz
IP Rating / Enclosure Rating
IP65
Mounting Type
Wall
Housing Material
Die-cast aluminum
Lens Material
Tempered glass
L70 Lifespan / Average Life
100,000 hours (L70)
Cold Weather Starting
Minimum starting temperature -40°F (-40°C)
Operating Temperature Range
Up to 122°F (50°C) at max power (varies by wattage setting)
Efficacy
Up to 151.2 lm/W (dependent on wattage and CCT)
Input Amps
120V: 0.96A / 0.80A / 0.64A (120/100/80W); 208V: 0.55A / 0.46A / 0.37A; 240V: 0.51A / 0.42A / 0.34A; 277V: 0.44A / 0.36A / 0.29A
THD
13.42% at 120V; 9.88% at 277V
Power Factor
99% at 120V; 97% at 277V
Includes
Dimming driver (wiring included); integrated photocell

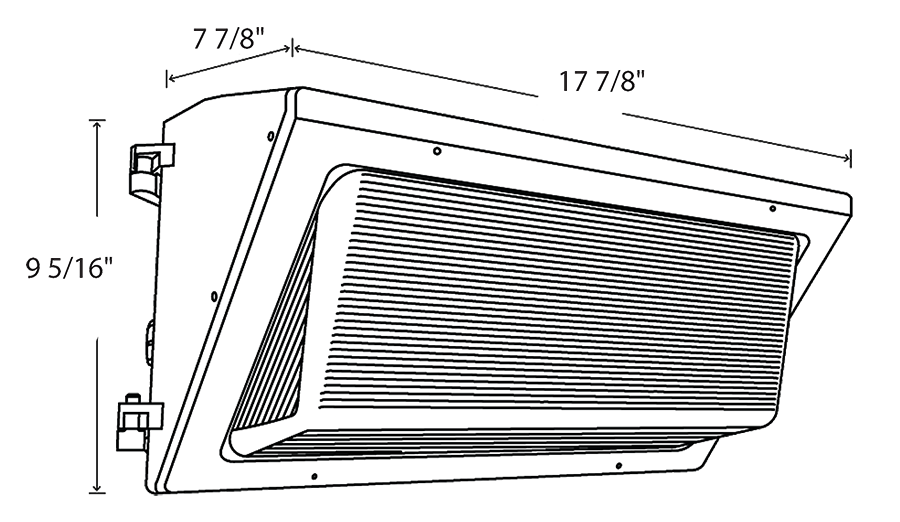

Dimensions
17.8 x 9.4 x 9.0 in (Depth x Width x Height)
Certifications / Standards
UL Listed; DLC Listed; RoHS Compliant; IESNA LM-79 and LM-80 testing; BAA Compliant
