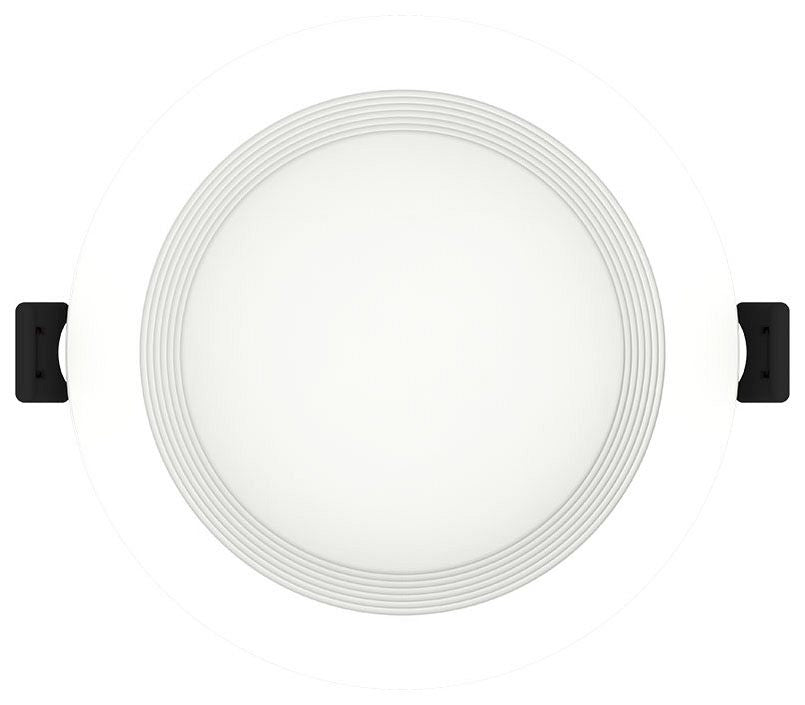

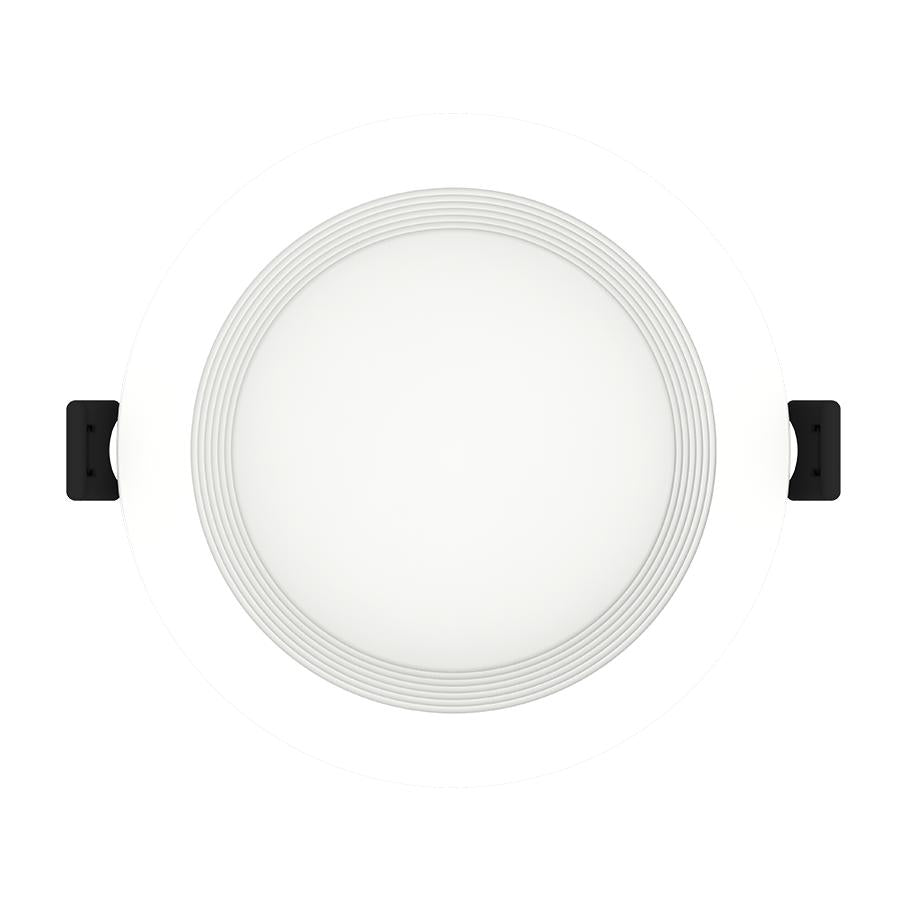

Rab Lighting Wfrl4r99fa120wb recessed downlights 9W 4 inches round

Product Description

The RAB LIGHTING WFRL4R99FA120WB recessed downlight provides 643.8 Lumens of light at 9W. This 4 inch round downlight features adjustable 2700/3500/4000/5000K color temperature and a white baffle. It utilizes edge-lit lighting technology and is suitable for both new construction and retrofit applications.

• Dimmable down to 5% on compatible dimmers
• IC and airtight rated
• Robust, die cast aluminum construction

Product Highlights

This LED wafer is super slim, edge-lit, and provides smooth, diffused, uniform light distribution. It is IC-rated and airtight.

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: WFRL4R99FA120WB
• Country of Origin: Cambodia

Technical Specifications

• Lamp Type: LED
• Fixture Wattage: 9
• Amperage Rating: 0.10 A
• Average Life: 50000 hrs
• Color Rendering Index CRI: 90 CRI
• Color Temperature: 2700, 3000, 3500, 4000, 5000 K
• Housing Material: Plastic
• Includes: Gaskets
• Lamp Wattage: 9 W
• Light Output: 66 Lumens/W
• Lighting Technology: Edge-Lit
• Lumens: 644 Lumens
• Manufacturer Part Number: WFRL4R99FA120WB
• Mounting Type: Ceiling
• Recessed Trim Type: Baffle
• Series: WFRL
• Voltage Rating: 120 V
• Product Type: Round, Edge-Lit Wafer
• Wattage Equivalency: 60W Incandescent
• Input Wattage: 9W
• Lumens (Nominal): 750lm
• Lumens (Measured): 700lm @ 2700K; 729lm @ 3000K; 740lm @ 3500K; 786lm @ 4000K; 765lm @ 5000K
• Efficacy: 66 LPW
• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• Driver: Constant Current, Class 2 60 Hz; 120V: 100mA
• THD: ≤20%
• Power Factor: ≥0.9
• Dimmable: Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
• Input Voltage: 120V
• Operating Frequency: 60 Hz
• Operating Temperature: -22°F to 104°F (-30°C to 40°C)
• Beam Angle: 110°±10°
• Color Accuracy (CRI): >90 CRI
• R9 Value: High color performance with R9 greater than 50
• Color Consistency: <4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Remote Driver/Junction Box: Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
• Mounting: Recessed, no housing required
• Size: 4"
• Shape: Round
• Finish: White
• Enclosure Material: Metal+Plastic
• Trim Style: Baffle
• Lens Finish: Frosted
• Lens: Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
• Listings: UL Listed
• Environment: Suitable for use indoors and outdoors in dry, damp, or wet environments.
• IC Rated: Suitable for direct contact with insulation.
• Type IC: Inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
• Air Tight: Housing certified Air Tight as per ASTM-E283
• Downlight Diameter: 4.75"
• Downlight Type: Thin / Wafer
• Reflector Color / Type: White / Smooth
• Rated Hours: 50,000 Hours
• Min Operating Temp: -22 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
• Diameter: 4.75"
• Height: 0.688"
• Material: Metal
• Style: WFRL4R99FA120WB
• Light fixture form: Ceiling
• Room Type: Bedroom
• Indoor/Outdoor Usage: Indoor
• Power Source: Corded Electric
• Installation Type: New Construction, Retrofit
• Light Source Type: LED
• Finish Type: Brushed
• Shade Material: Acrylic
• Number of Light Sources: 1
• Voltage: 120 Volts
• Light Color: [2700K-5000K]
• Included Components: Mounting Hardware
• Lighting Method: Downlight
• Number of Items: 1
• Wattage: 9 watts
• Controller Type: Remote Control
• Switch Type: Dip Switch
• Unit Count: 1.0 Count
• Brightness: 644 lumen
• Efficiency: 72 lm/W
• Recessed Mount: Recessed Mount
• Shade Color: White
• Fixture Type: Non Removable
• Assembly Required: Yes
• Manufacturer: RAB Lighting
• Model Name: WFRL
• Part Number: WFRL4R99FA120WB
• Item model number: WFRL
• Finish types: Brushed
• Bulb Features: Dimmable
• Correlated Color Temp: 2700 K
• Lens Material: Acrylic
