RAB LIGHTING WFRL3R69CCT120WS WFRL CCT-Adjustable Edge-Lit Wafer

Product Description

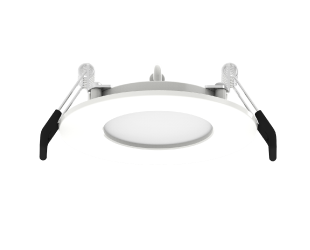

The RAB LIGHTING WFRL3R69CCT120WS is a round, edge-lit wafer light that fits in new construction and retrofit projects. This three-inch wafer has a slim profile and provides even light distribution. Users can adjust the color temperature using a dip switch to five options: 2700K, 3000K, 3500K, 4000K, and 5000K. It is designed to be IC and airtight rated, making it suitable for wet locations. The wafer is dimmable down to ten percent with compatible TRIAC and ELV dimming systems. Built from die-cast aluminum, it comes with spring-loaded clips for secure mounting and has an impressive lifespan of fifty thousand hours.

• Adjustable color temperature options from 2700K to 5000K.
• Slim design suitable for tight spaces.
• Rated for wet locations for safe use in damp conditions.

Product Highlights

The wafer light offers a user-friendly setup with adjustable color options and reliable performance in various environments.

Product Information

Standard Information

• Product Type: Round, Edge-Lit Wafer
• Wattage Equivalency: 40W Incandescent

Technical Specifications

• Input Wattage: 6W
• Nominal Lumens: 500lm
• Measured Lumens: 451lm @ 2700K; 524lm @ 3000K; 539lm @ 3500K; 548lm @ 4000K; 548lm @ 5000K
• Efficacy: 75lm/W @ 2700K; 87lm/W @ 3000K; 90lm/W @ 3500K; 91lm/W @ 4000K; 91lm/W @ 5000K
• L70 Lifespan: 50,000 Hours
• Driver: Constant Current, Class 2
• Dimmable: Yes, down to 10%
• Input Voltage: 120V
