Rab Lighting WFRL3R69CCT120WB Wfr Fa 3 inches Rd Baffle 6W 400lm 120V Triac

Product Description

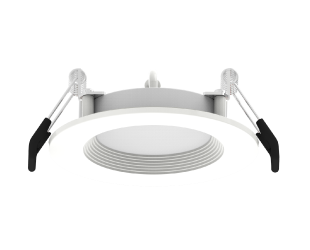

The RAB LIGHTING WFRL3R69CCT120WB is a 3" round baffle, 6W, 400lm, 120V triac recessed downlight. This field-adjustable fixture features edge-lit lighting technology and a dimmable ballast. Suitable for new construction and retrofit applications, it boasts a 50000 hr average life and a selectable color temperature between 2700K to 5000K.

• Super slim Edge-lit fixture for thin fixture depth
• No recessed housing or J-box required
• UL wet location rated
• Smooth diffused uniform light distribution
• Dimmable down to 5% on compatible dimmers
• Spring loaded retention clips
• IC and airtight rated

Product Highlights

The WFRL3R69CCT120WB recessed downlight is easy to install, has adjustable color temperature, and is suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: WFRL3R69CCT120WB
• Country of Origin: Cambodia

Technical Specifications

• Amperage Rating: 0.05 A
• Application: Suitable for new construction and retrofit applications
• Average Life: 50000 hr
• Ballast Type: Dimmable
• Color Rendering Index CRI: 90 CRI
• Color Temperature: 2700, 3000, 3500, 4000, 5000 K
• Lamp Type: LED
• Lamp Wattage: 6 W
• Light Output: 73 Lumens/W
• Lighting Technology: Edge-Lit
• Lumens: 445 Lumens
• Manufacturer Part Number: WFRL3R69CCT120WB
• Mounting Type: Recessed
• Recessed Trim Type: Baffle
• Series: WRFL
• Standards/Approvals: BAA Compliant|UL Listed|PROP65
• Type: Field-Adjustable
• Voltage Rating: 120 V
• Product Type: Round, Edge-Lit Wafer
• Wattage Equivalency: 40W Incandescent
• Input Wattage: 6W
• Lumens (Nominal): 500lm
• Lumens (Measured): 498lm @ 2700K; 520lm @ 3000K; 537lm @ 3500K; 544lm @ 4000K; 546lm @ 5000K
• Efficacy: 83lm/W @ 2700K; 87lm/W @ 3000K; 89lm/W @ 3500K; 91lm/W @ 4000K; 91lm/W @ 5000K
• L70 Lifespan: 50,000-Hour LED lifespan based on IES LM-70 results
• Driver: Constant Current, Class 2 60 Hz; 120V: 54mA
• THD: ≤20%
• Power Factor: ≥0.9
• Dimmable: Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
• Input Voltage: 120V
• Operating Frequency: 60 Hz
• Operating Temperature: -4°F to 104°F (-20°C to 40°C)
• Beam Angle: 110°±10°
• Color Accuracy (CRI): >90 CRI
• R9 Value: High color performance with R9 greater than 50
• Color Consistency: <4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Remote Driver/Junction Box: Die-formed metal driver / junction box with captive hinged junction box cover. Listed for maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
• Mounting: Recessed, no housing required
• Size: 3"
• Shape: Round
• Finish: White
• Lens Finish: Frosted
• Lens: Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
• Listings: UL Listed
• Environment: Suitable for use indoors and outdoors in dry, damp, or wet environments.
• IC Rated: Suitable for direct contact with insulation.
• Type IC: inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
• Air Tight: Housing certified Air Tight as per ASTM-E283
• Energy Star Approved: This product is ENERGY STAR® Certified.
• Energy Star ID: 3555565
• DLC Listed: No
• Certification Model Number: DLW0084(WFRL3R69CCT120WB)
• California Title 20 Compliant: Can be used to conform with the requirements of California Title 20
• California Title 24 JA8 Compliant: Can be used to conform with the requirements of California Title 24 Part 6
• California Energy Commission (CEC) Status: Lawful for Sales in California
• NEC Compliant: Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.
• RoHS: Mercury and UV free. RoHS-compliant components.
• FCC: Complies with Part 15 of the FCC Rules
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• Wattage: 6 Watts
• Downlight Diameter: 3"
• Downlight Type: Thin / Wafer
• Rated Hours: 50,000 Hours
• Min Operating Temp: -4 Degrees F
• CRI: 90+
• Special Features: CCT Selectable, Energy Star Rated, IC Rated, Title 20 / 24 Compliant, Wet Location Rated
