Rab Lighting VAN17-90 Field Adjustable LED Canopy Luminaire 90/80/70W (10x10)

Brand: RAB LIGHTING
SKU: VAN17-90
Availability: Out Of Stock
$299.27
$299.27
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

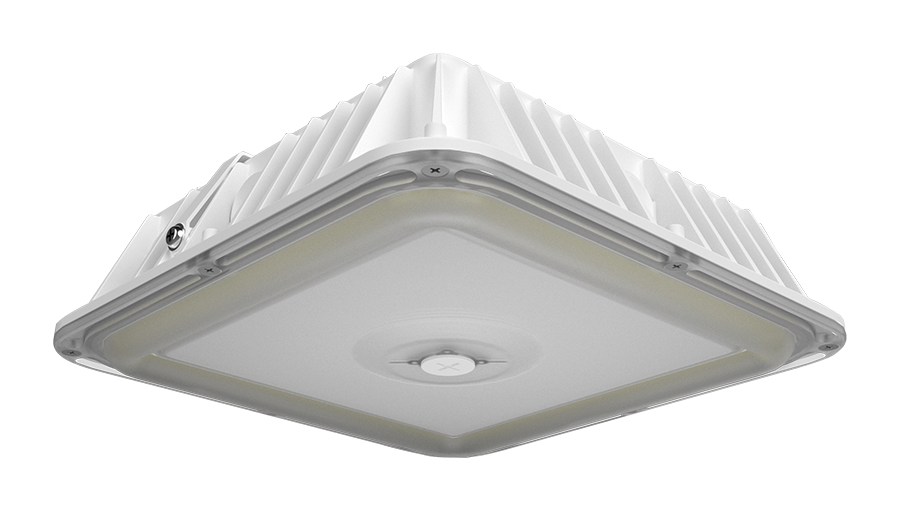

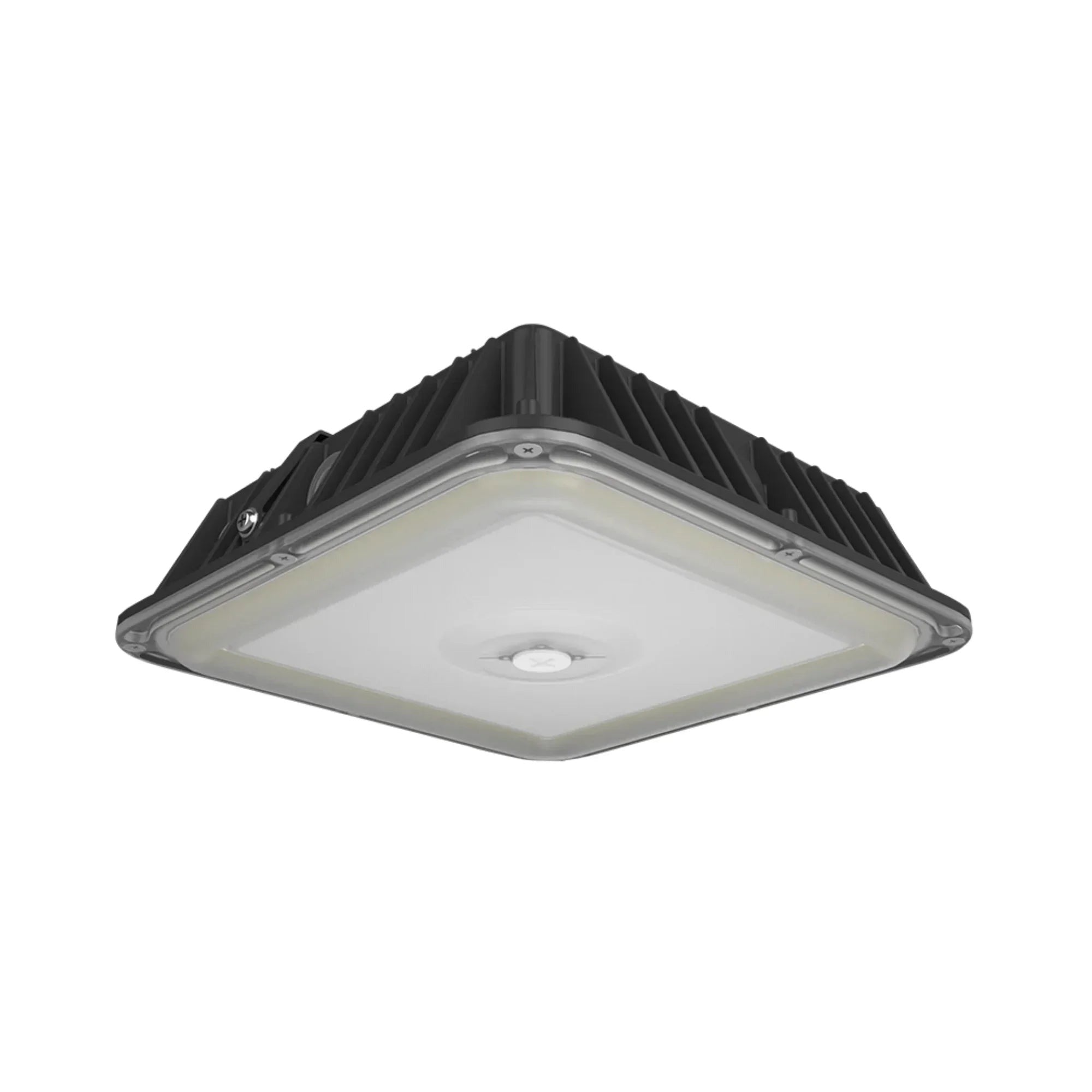

RAB Lighting VAN17-90 is a field-adjustable LED canopy luminaire designed for 10 x 10 inch openings, offering selectable light output (90W/80W/70W) and selectable color temperature (3000K, 4000K, 5000K). The fixture includes a built-in on/off photocell (factory default off), 0-10V dimming capability, IP65 ingress protection, and a constant current Class 2 driver for 120-277V operation.

  • Field-adjustable wattage: 90W/80W/70W with 0-10V dimming and constant current driver (120-277V)
  • Selectable CCT: 3000K, 4000K, 5000K; lumen output range 9,726–12,929 lm with 135.7–154.5 lm/W efficacy
  • Durable die-cast aluminum housing, vandal-resistant polycarbonate textured opaque lens, IP65 rating, UL listed for wet locations

Product Highlights

Field-adjustable 90/80/70W canopy luminaire with built-in photocell, 0-10V dimming, and IP65 protection

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: VAN17-90
Technical Specifications
Brand
RAB Lighting
MPN
VAN17-90
Model
VAN17-90
Type
Constant current LED canopy luminaire
Wattage
90W / 80W / 70W (field-adjustable, factory default: 90W)
Input Voltage
120-277V, 50/60 Hz
Input Watts
67.3 - 88.5 W
Input Current (90W)
120V: 0.75A; 208V: 0.43A; 240V: 0.38A; 277V: 0.32A
Input Current (80W)
120V: 0.67A; 208V: 0.38A; 240V: 0.33A; 277V: 0.29A
Input Current (70W)
120V: 0.58A; 208V: 0.34A; 240V: 0.29A; 277V: 0.25A
Delivered Lumens
9,726 - 12,929 lm
Efficacy
135.7 - 154.5 lm/W
Color Temperature
Selectable 3000K, 4000K, 5000K (factory default: 4000K)
Color Rendering Index (CRI)
83 - 85 CRI
L70 Lifespan
100,000 hours (LM-80/TM-21 based)
Dimming
0-10V dimming (dims to 10%)
Photocell
Built-in on/off photocell (factory default: off)
IP Rating
IP65
Driver
Constant current, Class 2, 120-277V, 50/60 Hz
THD
6.47% at 120V; 8.84% at 277V
Power Factor
99.3% at 120V; 87.9% at 277V
Surge Protection
L-N: 4 kV; L/N-PE: 6 kV

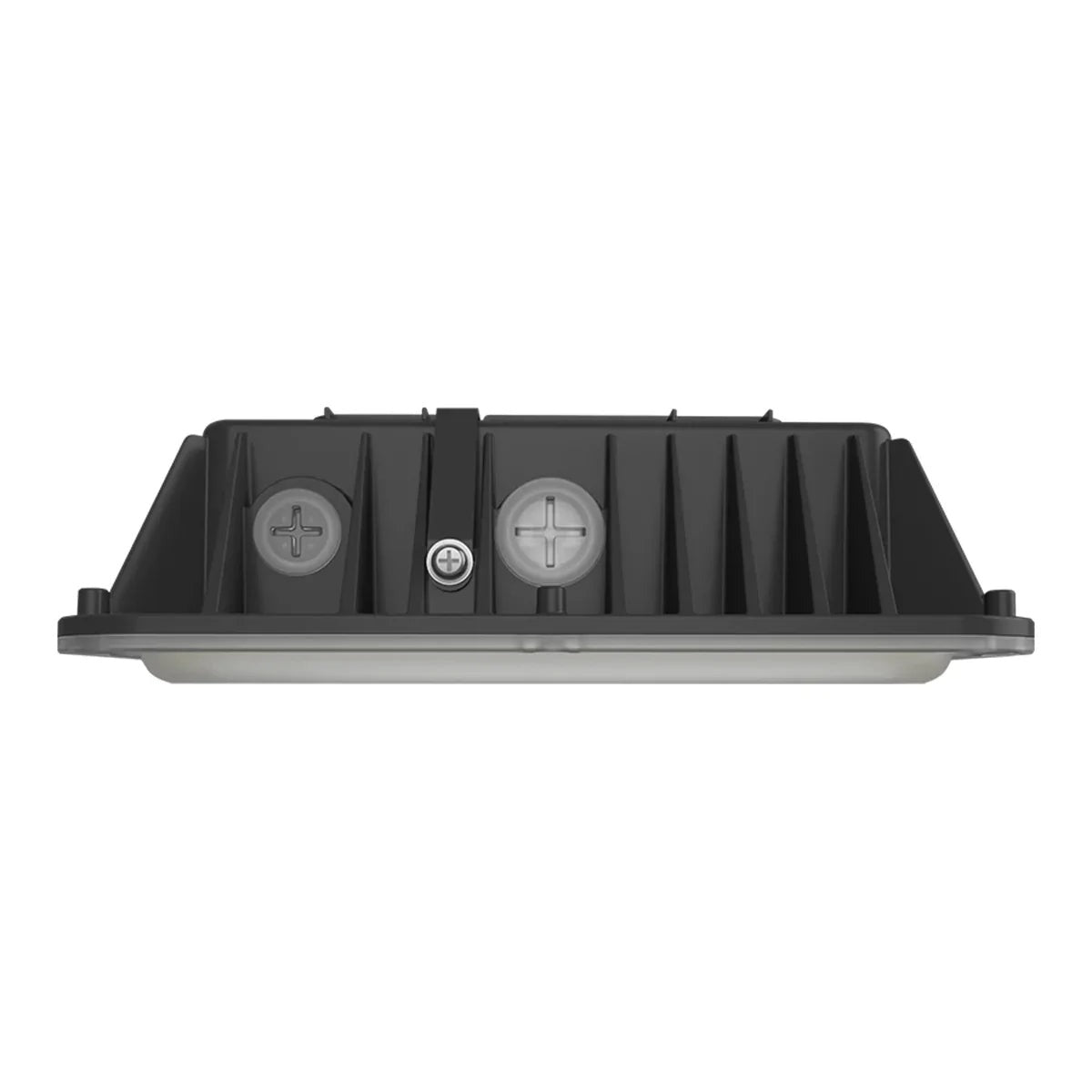

Housing
Precision die-cast aluminum housing and door frame
Lens
Vandal-resistant polycarbonate textured opaque lens
Reflector
Plastic
Cold Weather Starting
-40 F (-40 C)
Maximum Ambient Temperature
122 F (50 C)
Certifications
UL listed; suitable for wet locations; DLC listed (qualification varies by SKU); IESNA LM-79 and LM-80 tested
Mounting Type
Ceiling mount (sized for 10 x 10 inch openings)

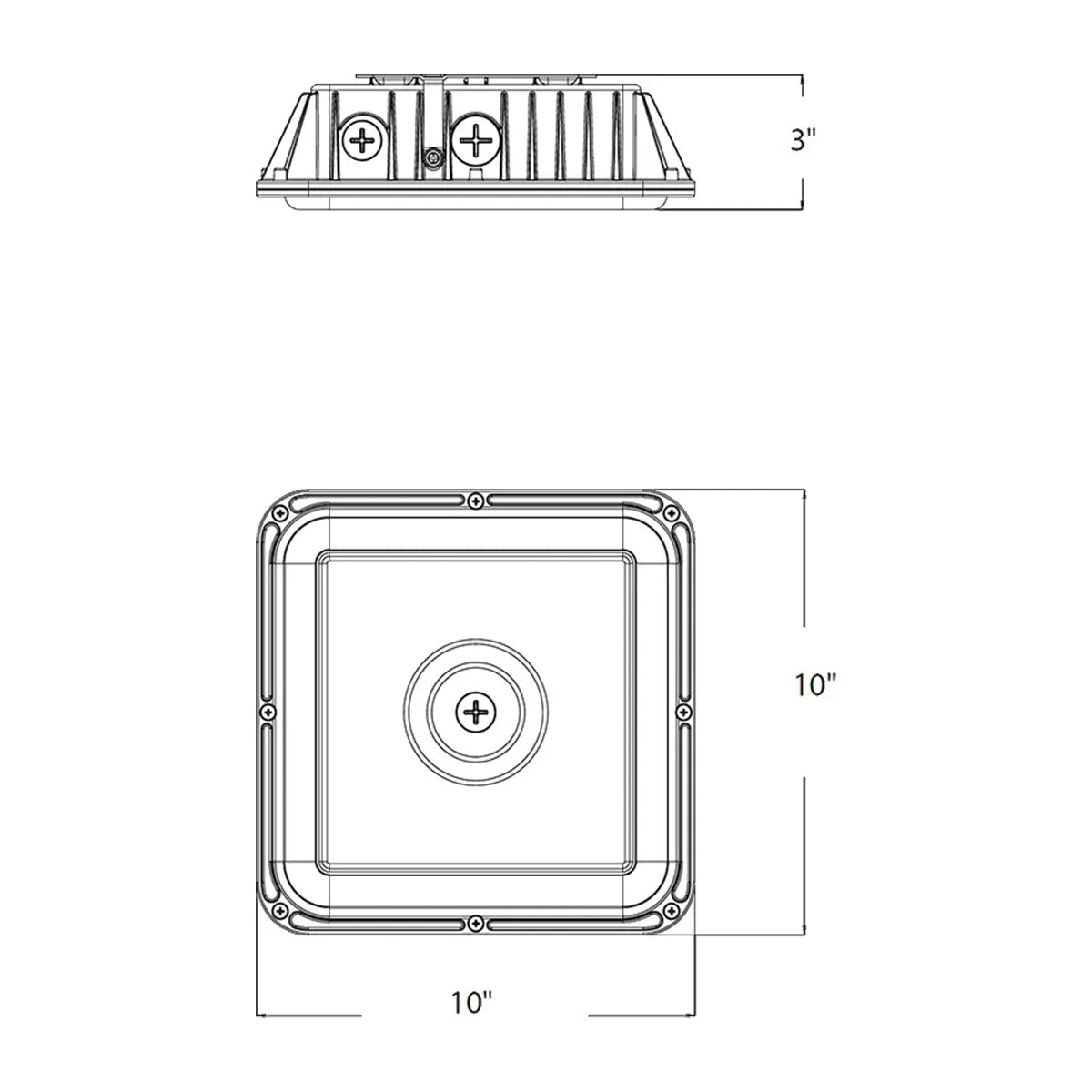

Dimensions
10 in x 10 in x 3 in
Weight (manufacturer spec)
5.23 lb
BUG Rating
B3 U0 G3 (90W); B3 U0 G2 (80W/70W)
Battery Backup
Optional/integrated battery backup available on select SKUs (90-minute operation listed for variant VAN17-90W/E)
