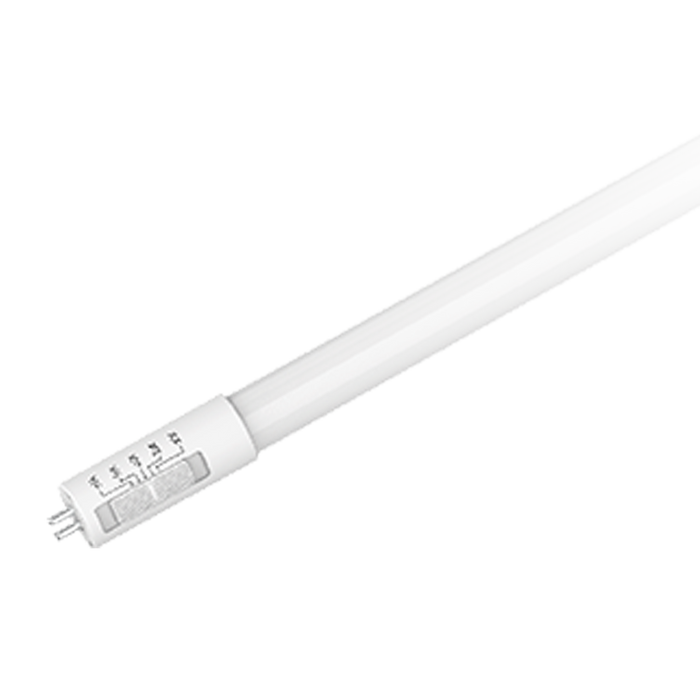

RAB Lighting T5HO-25-48G-8CCT-SD-BYP 4ft LED Tube

Product Description

The RAB Lighting T5HO-25-48G-8CCT-SD-BYP is a four-foot LED tube designed to replace traditional T5HO fluorescent lamps. This LED tube operates efficiently on a voltage range of one hundred twenty to two hundred seventy-seven volts and has a power rating of twenty-five watts. Users can select from multiple color temperatures, ranging from three thousand Kelvin to six thousand five hundred Kelvin, by using a simple dip switch. This flexibility allows for optimal lighting conditions in various spaces.

• Field-adjustable color temperature: 3000K, 3500K, 4000K, 5000K, and 6500K
• Compatible with both single-ended and double-ended ballast bypass installations
• Suitable for damp locations with a frosted lens

Product Highlights

This LED tube provides a flexible lighting solution, making it ideal for different environments.

Product Information

Standard Information

• Brand: RAB Lighting
• Manufacturer Part Number: T5HO-25-48G-8CCT-SD-BYP

Technical Specifications

• UPC Code: 192552017831
• Input Voltage: 120-277V
• Power Consumption: 25 Watts
• Lumens: 3,500 Lumens
• Color Temperature: 3000K, 3500K, 4000K, 5000K, 6500K
• Lamp Base Type: G5 Miniature Bi-Pin
• Rated Hours: 50,000 Hours
• Diameter: 0.75 inches
• Beam Angle: 170 Degrees
• Equivalent Wattage: 54W Fluorescent
• Minimum Operating Temperature: -40 Degrees F
• Maximum Operating Temperature: 120 Degrees F (45 C)
• CRI: 80
• Special Features: CCT Selectable, Enclosed Fixture Rated, NSF Rated
• Length: 45.75 inches
• Certifications: RoHS | FCC
• DLC Listed: Yes
• Outdoor Rating: Damp Location Rated
• Warranty: 5 Year Warranty
