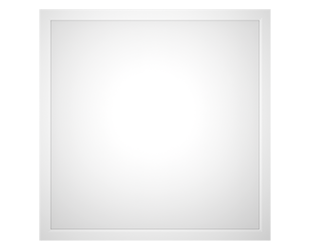

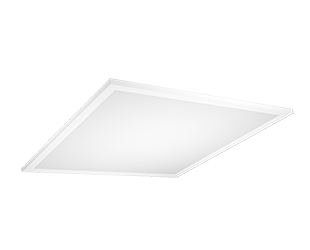

RAB LIGHTING T34FA-2X2/LCBS 2x2 Back-Lit Panel

Product Description

The RAB LIGHTING T34FA-2X2/LCBS is a two by two back-lit LED flat panel. It is made for recessed installation in T-grid ceilings. The panel has features for field-adjustable color temperature and wattage, making it adaptable to various needs. The color temperature adjustment allows flexibility in lighting design. It is compatible with 0-10V dimming systems and can also be controlled through the Lightcloud Blue mobile app. This fixture is suitable for indoor use and can function in both dry and damp environments. Some models may include occupancy and vacancy detection sensors.

• Field-adjustable color temperature
• Recessed installation for T-grid ceilings
• Compatible with 0-10V dimmers and mobile automation

Product Highlights

The RAB LIGHTING T34FA-2X2/LCBS helps enhance indoor lighting with customizable options for brightness and warmth, suitable for any commercial setting.

Product Information

Standard Information

• Product Type: Back-lit Panel - Tunable White
• Manufacturer: RAB Lighting

Technical Specifications

• MPN: T34FA-2X2/LCBS
• Shape: Square
• Size: 2 feet x 2 feet
• Weight: 6.4 lbs
• Input Voltage: 120-277V AC
• Wattage Options: 20W, 30W, 40W
• Life Rating: 50000 Hours
• Lumens Range: 2279-4600 lm
• Color Temperature: Tunable White 3000K - 6500K
• Mounting Type: Recessed into T-grid ceiling
• Beam Angle: 120 degrees
• Operating Temperature: -22°F to 104°F
