Rab Lighting SWISHFA-2X2/D10 Swish FA 19/29/39W (2x2) SWISHFA2X2/D10

Product Description

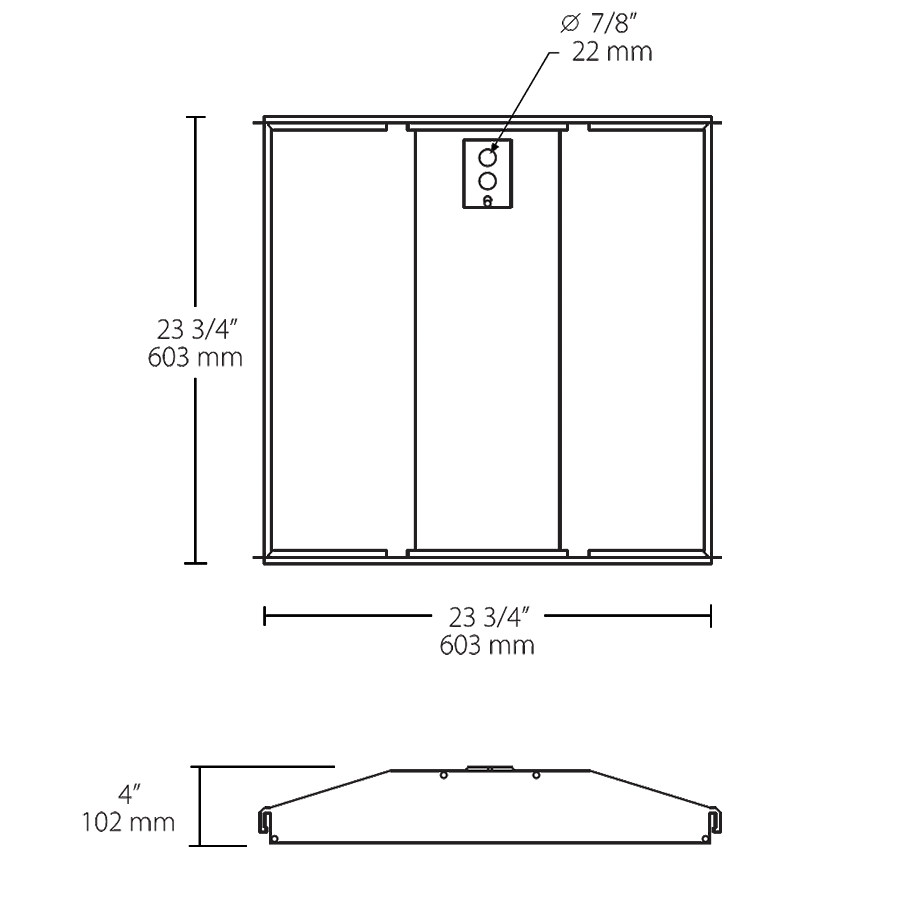

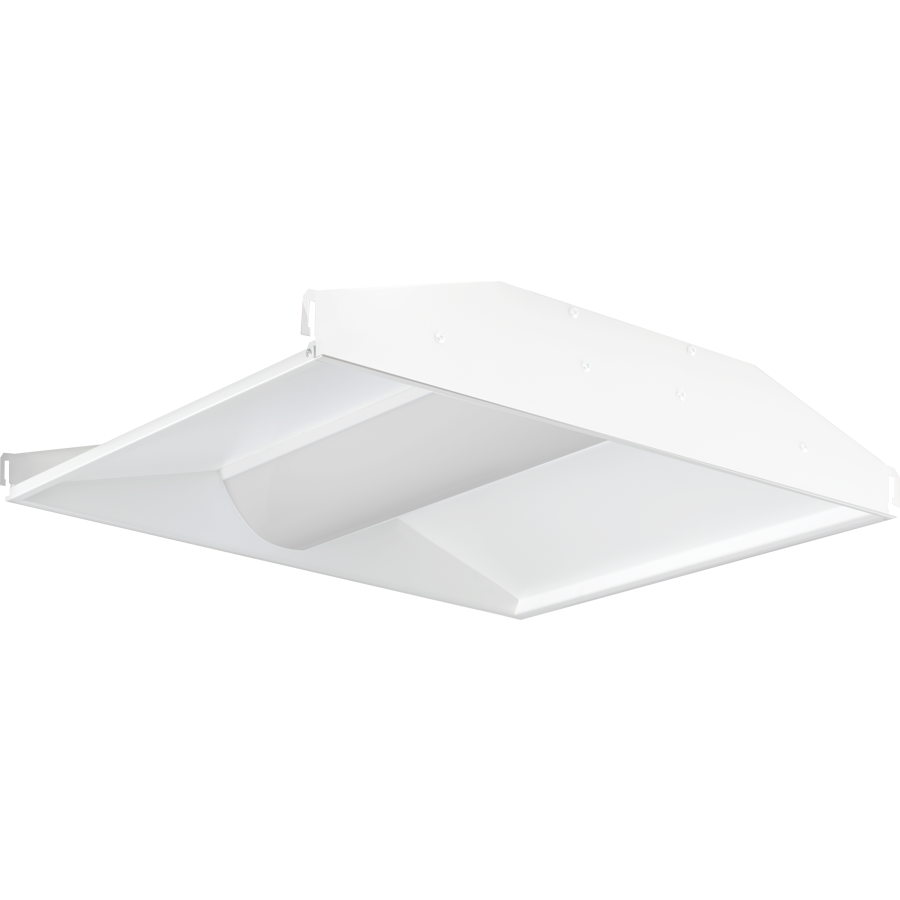

Rab Lighting SWISHFA-2X2/D10 is a field-adjustable 2' x 2' recessed center-basket LED troffer with selectable wattage (39W/29W/19W) and selectable correlated color temperature (3500K, 4000K, 5000K). It uses a Class 2 constant-current driver for 120-277V operation with 0-10V dimming to 10% and delivers 2,432 to 4,913 lumens with efficacy up to 139 lm/W. The fixture is IC-rated for direct contact with insulation, suitable for damp locations, and rated L70 for 100,000 hours.

• Field-adjustable wattage 39W / 29W / 19W (factory default 29W) and selectable CCT 3500K / 4000K / 5000K; delivered lumens 2,432–4,913 and efficacy 116.2–139.1 lm/W
• Class 2 constant-current driver for 120–277V, includes 0-10V dimming to 10%; input current: 120V 0.25A, 208V 0.15A, 240V 0.13A, 277V 0.12A
• Die-formed 20-gauge cold-rolled steel housing with frosted polycarbonate lens, IC-rated, suitable for damp locations, 2 kV surge protection, L70 100,000 hours

Product Highlights

2' x 2' field-adjustable recessed LED troffer; 19/29/39W; 2,432–4,913 lm; 120–277V with 0-10V dimming; IC and damp location rated; 100,000-hour L70

Product Information

Standard Information

• Brand: RAB LIGHTING
• Manufacturer Part Number: SWISHFA-2X2/D10
• Country of Origin: Cambodia
