Product Description
Rab Lighting SUMO-R-9 is a 9-inch slim round surface-mount LED downlight that delivers 18W with five field-selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K). The fixture produces approximately 1,600 nominal lumens, operates at 120V, features 90 CRI and R9 greater than 50, and is dimmable on compatible TRIAC/ELV systems to 10%. It has a frosted acrylic lightguide, a sub-1-inch profile, and a 50,000-hour L70 rating for general interior and covered exterior applications.
18W input, ~1,600 nominal lumens, 90 CRI with R9 > 50; efficacy ~84-90 lm/W
Field-selectable CCT (2700/3000/3500/4000/5000K); dimmable to 10% on compatible TRIAC/ELV dimmers; 120V

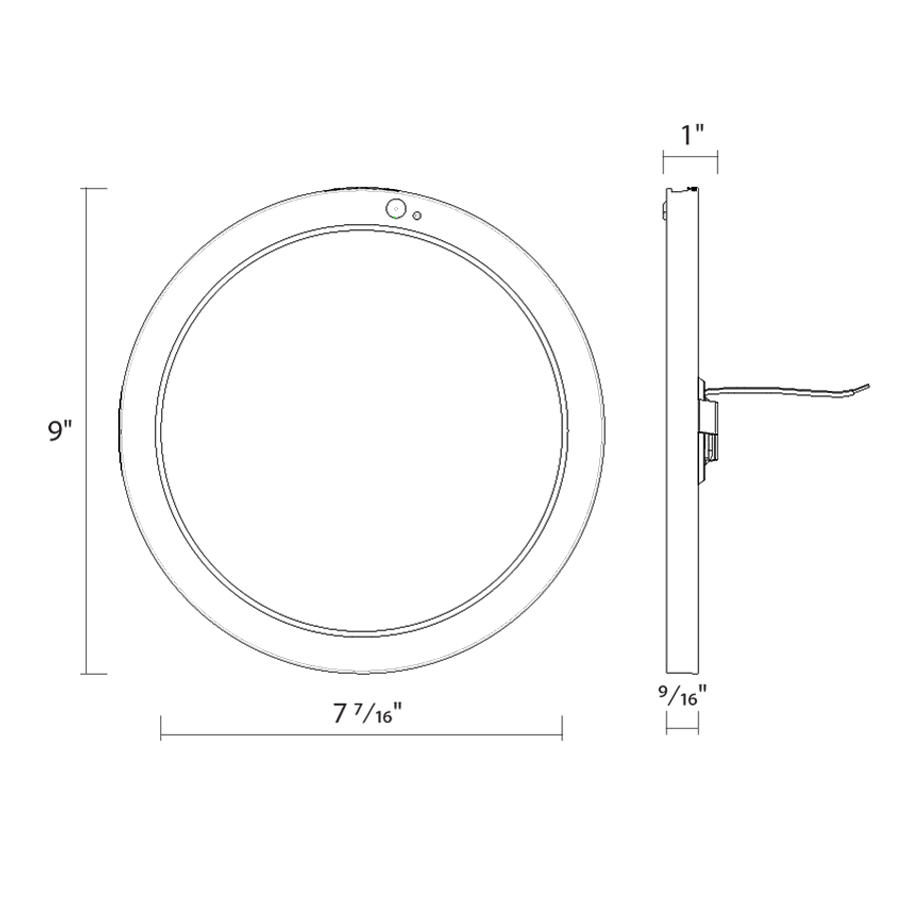

Super slim design (<1" fixture profile); installs on common junction boxes (3" or 4" compatible); wet/damp location rated; 50,000-hour L70
Product Highlights
9-inch slim surface-mount LED downlight, 18W, 5CCT selectable, 1,600 lm nominal, 90 CRI, dimmable to 10%, wet rated, 50,000-hour L70, ENERGY STAR certified
Product Information
Standard Information
Brand : RAB LIGHTING
Manufacturer Part Number : SUMO-R-9
Country of Origin : Cambodia
Technical Specifications
Manufacturer Part Number
SUMO-R-9
Input Current
167 mA @ 120 V
Driver
Constant current driver (on-board)
Operating Frequency
60 Hz
Lumens (Nominal)
1,600 lm
Measured Lumens
1506 lm @2700K; 1514 lm @3000K; 1596 lm @3500K; 1622 lm @4000K; 1617 lm @5000K
Color Temperature
Field adjustable 2700K / 3000K / 3500K / 4000K / 5000K (5CCT)
Color Accuracy (CRI)
90 CRI
Color Consistency
<4-step MacAdam Ellipse
L70 Lifespan
50,000 Hours
Dimmable
Yes, down to 10% on compatible TRIAC/ELV dimming systems
Operating Temperature Range
-4 F to 104 F (-20 C to 40 C)
Fixture Profile
Less than 1"
Enclosure Material
Steel heatsink; polyester UV resistant trim ring
Lens
Frosted acrylic lightguide
Mounting
Surface mount; installs on common junction boxes (compatible with 3" or 4" junction boxes)
Install Type
Driver on board design; accessory available for recessed housings (sold separately)
Environment / Location Rating
Suitable for dry, damp, or wet locations (indoor/outdoor, covered)
Listings / Certifications
UL Listed; ENERGY STAR Version 2.2 Certified; RoHS; FCC Part 15 compliant; California Title 24 JA8 compatible; NEC compliant; TAA compliant
Certification Model Number
DLS0176 (SUMO-R-9)
