Rab Lighting SR8H Led Strip 85W (8 ft)

Brand: RAB LIGHTING
SKU: SR8H
Availability: In Stock

Ships same day if ordered by 12 pm
$194.93
$194.93
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

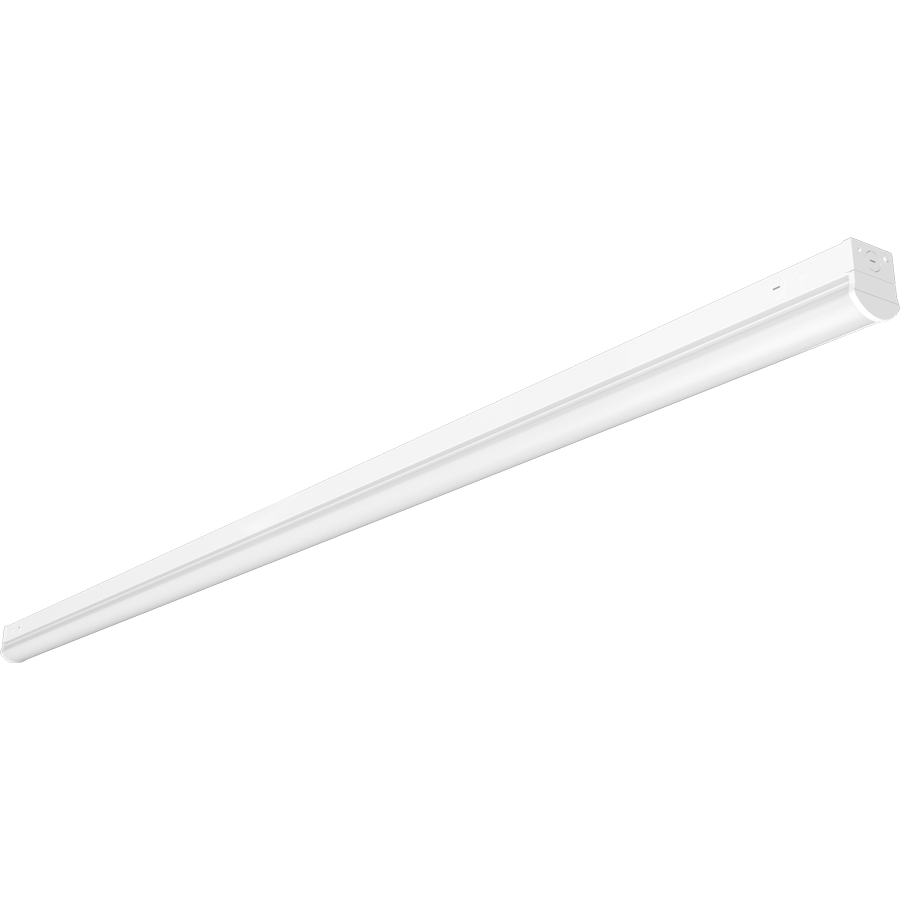

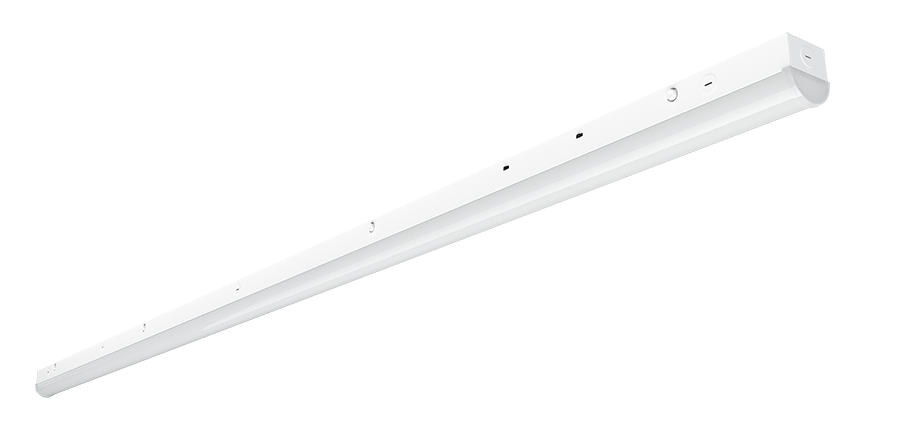

Rab Lighting SR8H is an 8-foot field-adjustable LED strip luminaire with a J-box adapter that provides selectable wattages (45/55/65/75/85 W) and selectable color temperatures (3500K–6500K). The fixture delivers 6,551–12,624 lumens with efficacies around 139.6–147.7 lm/W, operates on 120–277V with a constant-current Class II driver, and supports 0-10V dimming to 10%. Construction includes a polycarbonate lens and galvanized steel housing with a rated L70 life of 100,000 hours.

  • Field-selectable wattage (45/55/65/75/85 W) and selectable CCT (3500K–6500K) for on-site configuration
  • 6,551–12,624 lumens, ~139.6–147.7 lm/W efficacy, L70 rated 100,000 hours
  • 120–277V constant-current Class II driver with standard 0-10V dimming, aux power, dim-to-off and surge protection

Product Highlights

8 ft field-adjustable LED strip; 45–85W; 6,551–12,624 lm; 120–277V; 0-10V dimming; polycarbonate lens; galvanized steel housing; 100,000-hour L70

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: SR8H
Technical Specifications
Brand
Rab Lighting
Manufacturer Part Number
SR8H
Model
SR8H
Type
Field-adjustable LED strip
Length
8 ft
Wattage (field-selectable)
45 / 55 / 65 / 75 / 85 W
Input Voltage
120-277V, 50/60 Hz
Input Watts
44.4 - 86.4 W
Lumens
6,551 - 12,624 lm
Efficacy
139.6 - 147.7 lm/W
Color Temperature
3500K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index (CRI)
84 - 86
L70 Lifespan
100,000 hours
Driver
Constant Current, Class II, 120-277V
Dimming
0-10V dimming standard; dims to 10%; requires separate 0-10V DC circuit
Auxiliary Power Supply
Yes
Dim to Off
Yes
Surge Protection
L-N 1 kV, L/N-G 2 kV
Lens
Polycarbonate
Housing
Galvanized steel (painted/white finish)
Ambient Temperature Ratings
Max power 50°C (122°F); middle power 53°C (127°F); low power 57°C (135°F); cold start -20°C (-4°F)
Cold Start / Minimum Operating Temperature
-4°F (-20°C) to 122°F (50°C) depending on configuration
Certifications / Listings
UL listed; Suitable for damp locations; IESNA LM-79 & LM-80 tested; DLC listed (varies by SKU)
Mounting
J-box adapter surface mount standard; optional V-hooks and chain suspended mounting kits available; joiner kit for daisy chaining
Accessories
Suspended Mounting Kit: SR VHOOK KIT; Surface Mount/Joiner Kit: SR JOIN KIT
Field Adjustability
Field adjustable wattage and CCT selection
Dimensions (L x W x H)
94.5 in x 2.36 in x 2.79 in
Weight (manufacturer listed)
4.00 lb
Input Current (120V)
0.70A / 0.61A / 0.44A
Input Current (208V)
0.41A / 0.36A / 0.26A
Input Current (240V)
0.36A / 0.32A / 0.23A
Input Current (277V)
0.31A / 0.27A / 0.20A
