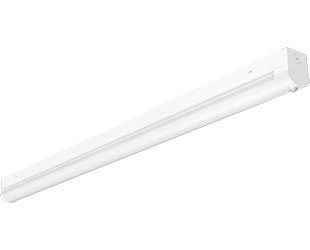

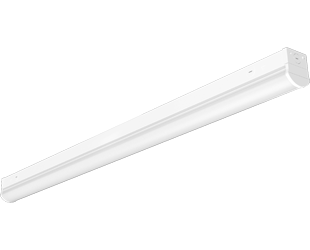

RAB LIGHTING SR4-LCBS Field-Adjustable LED Strip

Product Description

The RAB LIGHTING SR4-LCBS is a four-foot LED strip ideal for surface mounting. It allows users to adjust wattage and color temperature on-site, making it flexible for various lighting needs. This LED strip is suitable for damp locations and includes dimming control wiring for 0-10V dimming systems, reducing brightness down to ten percent. It features long-lasting, high-efficacy surface-mount LEDs protected by a polycarbonate lens and housed in galvanized steel. A motion sensor is integrated into the design to enhance energy efficiency and user convenience.

• Field adjustable wattage and color temperature.
• Suitable for damp locations.
• Equipped with a motion sensor for energy savings.

Product Highlights

Product Information

Standard Information

• Brand: RAB LIGHTING
• MPN: SR4-LCBS

Technical Specifications

• Input Voltage: 120-277V
• Input Frequency: 50/60 Hz
• Wattage: 20/25/30/35/40W
• Input Wattage: 19.5-42.6W
• Color Temperature: 3500/4000/5000/5700/6500K
• Lumens: 2878-6174 lm
• LED Lifespan (L70): 100,000 Hours
• Dimming: 0-10V dimming
• Housing Material: Galvanized steel
• Lens Material: Polycarbonate
• Mounting Type: Surface mounting
• Listings: UL Listed, DLC Listed
