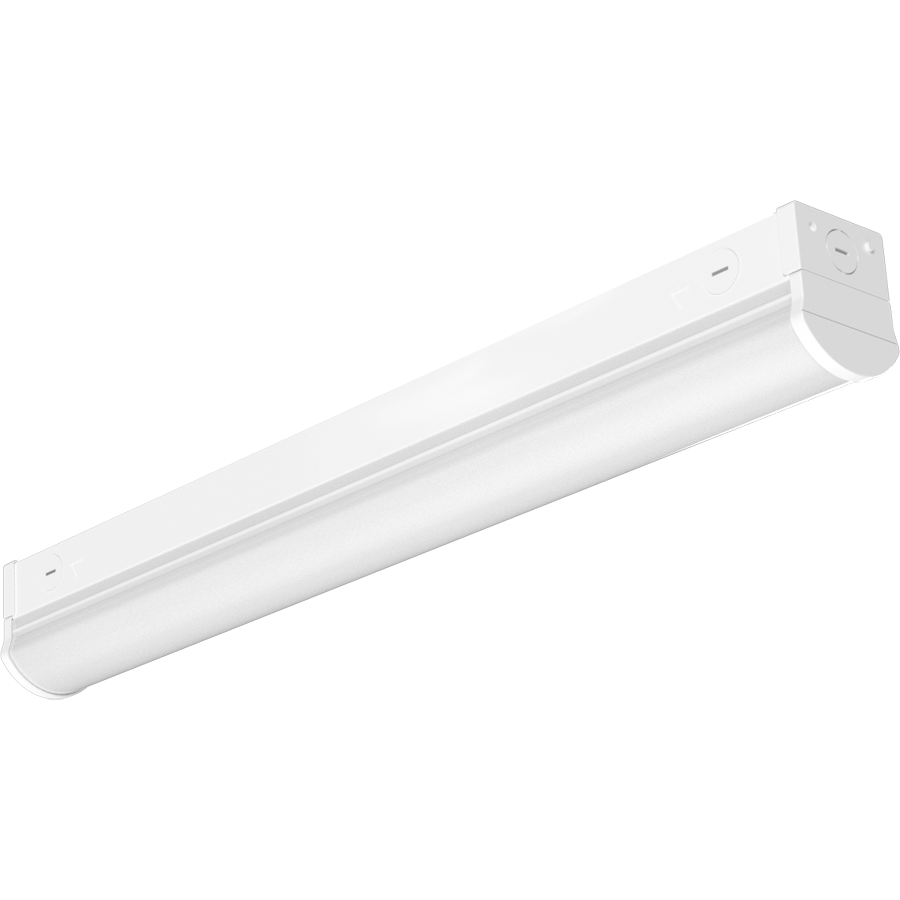

Rab Lighting SR2/E Led Strip 19/15/11/7/4W (2ft)

Brand: RAB LIGHTING
SKU: SR2/E
Availability: In Stock

Ships same day if ordered by 12 pm
$208.43
$208.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Rab Lighting SR2/E is a 2-foot field-adjustable LED strip (MPN SR2/E) designed for constant-current 120-277V operation. It provides selectable light output (19/15/11/7/4W), selectable color temperatures (3500/4000/5000/5700/6500K), 0-10V dimming and an optional battery backup that supplies 90 minutes of emergency runtime. The fixture features a polycarbonate lens, galvanized steel housing, surge protection and is UL and DLC listed with a 100,000-hour L70 life.

  • Field-adjustable output 19/15/11/7/4W and selectable color temperature 3500–6500K
  • Constant-current driver for 120–277V with 0-10V dimming (dims to 10%) and surge protection
  • Optional battery backup provides 90 minutes emergency runtime; polycarbonate lens and galvanized steel housing

Product Highlights

2-foot adjustable LED strip, 19–4W selectable output, 3500–6500K selectable CCT, 0–10V dimming, 90-minute battery backup, UL and DLC listed

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: SR2/E
Technical Specifications
Brand
RAB Lighting
Model
SR2/E
Manufacturer Part Number
SR2/E
Type
Constant current LED strip
Output Wattage (selectable)
19/15/11/7/4W
Input Power (watts)
4.6-20.1W
Initial Lumens
548-2883 lm
Efficacy
118.4-143.8 lm/W
Color Temperature (selectable)
3500/4000/5000/5700/6500K
Color Rendering Index (CRI)
83-86
L70 Lifespan
100,000 Hours
Input Voltage
120-277V, 50/60 Hz
Driver Type
Constant current
Driver Current (120V)
0.04A/0.06A/0.09A/0.13A/0.17A (for 4/7/11/15/19W respectively)
Driver Current (208V)
0.02A/0.04A/0.05A/0.07A/0.10A
Driver Current (240V)
0.02A/0.03A/0.05A/0.06A/0.08A
Driver Current (277V)
0.03A/0.04A/0.05A/0.06A/0.07A
Dimming
0-10V dimming standard (dims to 10%)
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
L-N 1 kV, L/N-G 2 kV
Emergency Battery Backup
Integrated option (operates fixture during power failure)
Battery Backup Runtime
90 minutes
Battery Backup Light Loss Factor
19W: 22.20%; 15W: 30.60%; 11W: 43.10%; 7W: 67.50%; 4W: 116.70% (manufacturer-stated — values >100% are unusual and flagged below)
Cold Start Minimum Temperature
0 C
Max Ambient Temperature (with battery)
50 C
Lens
Polycarbonate
Housing
Galvanized steel (painted)
Finish
White (durable finish)
Certifications
UL Listed; Suitable for damp locations; IESNA LM-79 and LM-80 tested; DLC listed

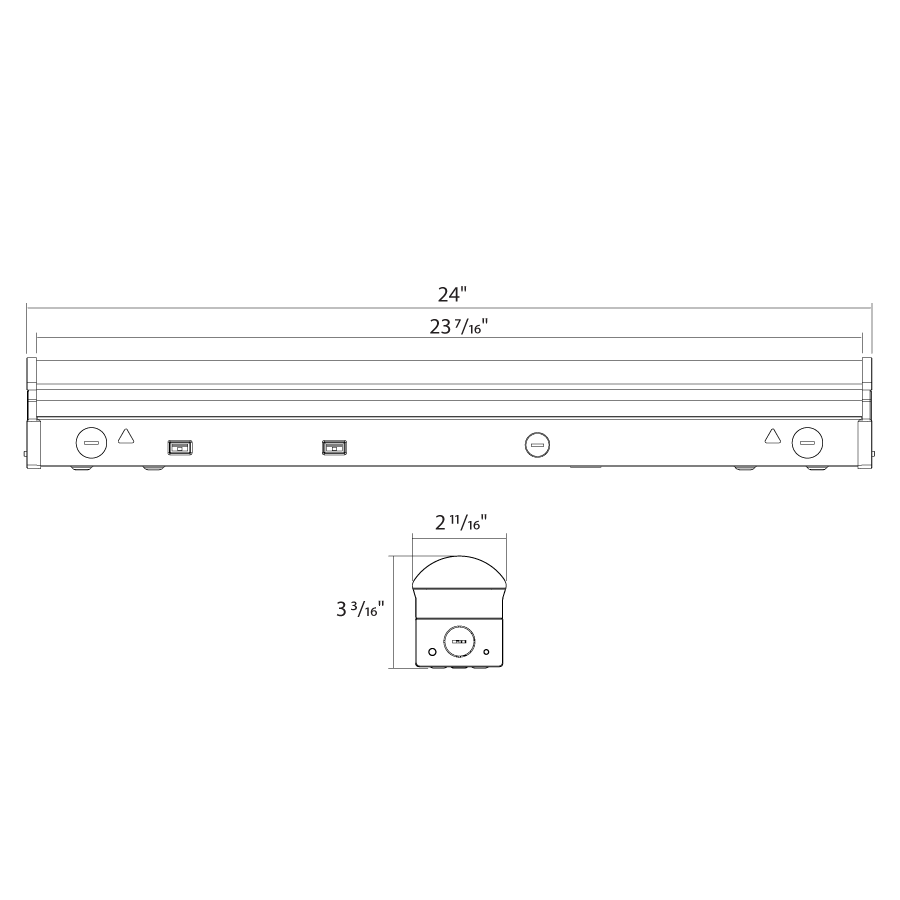

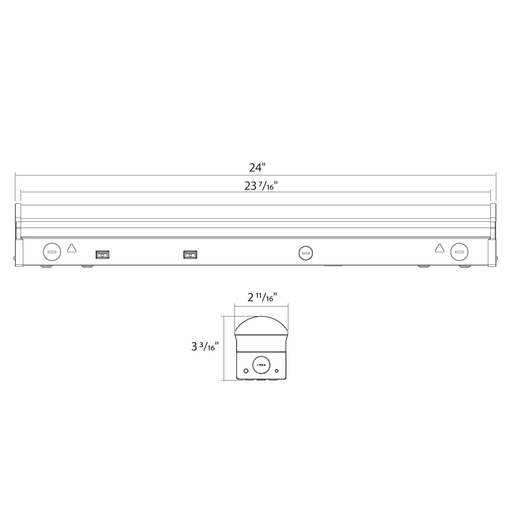

Size
2 ft
