Rab Lighting RBAY17L Linear High Bay 400/320/260W (Field Adjustable)

Brand: RAB LIGHTING
SKU: RBAY17L
Availability: In Stock

Ships same day if ordered by 12 pm
$392.43
$392.43
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Rab Lighting RBAY17L is a field-adjustable LED linear high bay that offers selectable wattages (400/320/260W) and selectable color temperatures (3500K/4000K/5000K). It delivers 39,067 to 58,737 lumens with efficacy up to 160 lm/W and long-life LEDs rated for 100,000 hours (L70). The fixture uses a constant-current driver for 120-277V with standard 0-10V dimming, and features a die-cast aluminum housing with polycarbonate lens and reflector.

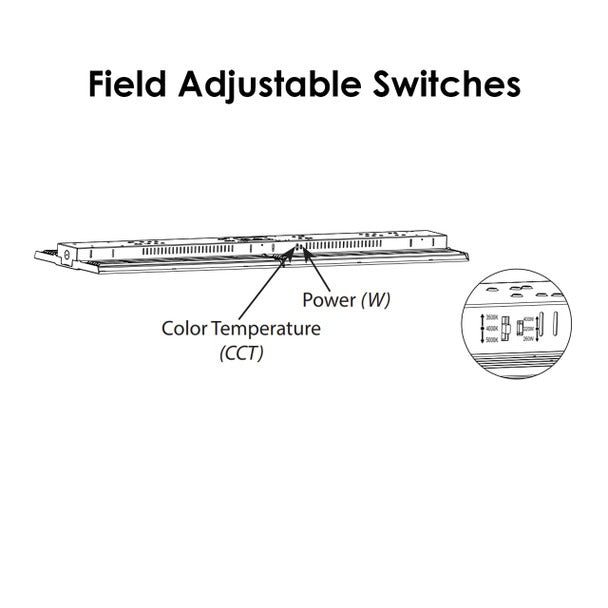

  • Field-adjustable wattage (400/320/260W) and selectable CCT (3500K/4000K/5000K); lumen output 39,067–58,737 lm
  • Constant-current driver for 120–277V with 0-10V dimming (dims to 10%); THD and power factor optimized for each voltage
  • Die-cast aluminum housing, polycarbonate lens/reflector, IP20 rating, V-hook chain mounting; UL and DLC listed

Product Highlights

Field-adjustable 400/320/260W LED linear high bay with 39,000–58,700 lumens, 0-10V dimming, die-cast aluminum construction, IP20, UL/DLC listed, 100,000-hour L70 LEDs.

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: RBAY17L
Technical Specifications
Brand
Rab Lighting
Manufacturer Part Number
RBAY17L
Model
RBAY17L
Type
Linear High Bay
Watts
400/320/260W (field adjustable; factory default 400W)
Field Adjustable Light Output (factory default)
400W
Color Temperature
Field adjustable 3500K / 4000K / 5000K (factory default 4000K)
Lumens
39,067 - 58,737 lm
Efficacy
140.3 - 160 lm/W
Color Accuracy (CRI)
82 - 84
L70 Lifespan
100,000 hours (L70)
Input Voltage
120-277V, 50/60 Hz
Input Watts
254.8 - 390.4W
Current (120V/208V/240V/277V)
400W: 3.42A / 1.92A / 1.67A / 1.45A; 320W: 2.66A / 1.54A / 1.33A / 1.16A; 260W: 2.20A / 1.25A / 1.08A / 0.94A
Driver
Constant current, Class 1
Dimming
0-10V dimming standard (dims to 10%)
THD
4.86% at 120V; 11.2% at 277V
Power Factor
99.75% at 120V; 93.84% at 277V
Surge Protection
L-N: 6 kV; L/N-PE: 6 kV
IP Rating
IP20
Listings
UL Listed; DLC Listed (family may include DLC Premium SKUs); suitable for damp locations
Lens Material
Polycarbonate
Reflector Material
Polycarbonate
Housing Material
Die-cast aluminum
Finish
Formulated for high durability and long-lasting color
Ambient/Operating Temperature
Max power temp rating: 122 F (50 C); Middle power temp rating: 133 F (56 C); Low power temp rating: 140 F (60 C)
Cold Weather Starting
-40 F (-40 C)
Mounting
Includes V-hooks for chain mounting; pendant and surface mounting accessories sold separately
Dimensions
30.69 x 11 x 2.07 inches
Weight
17.9 lbs
Certifications/Testing
IESNA LM-79 & LM-80 tested (family); RoHS compliant
