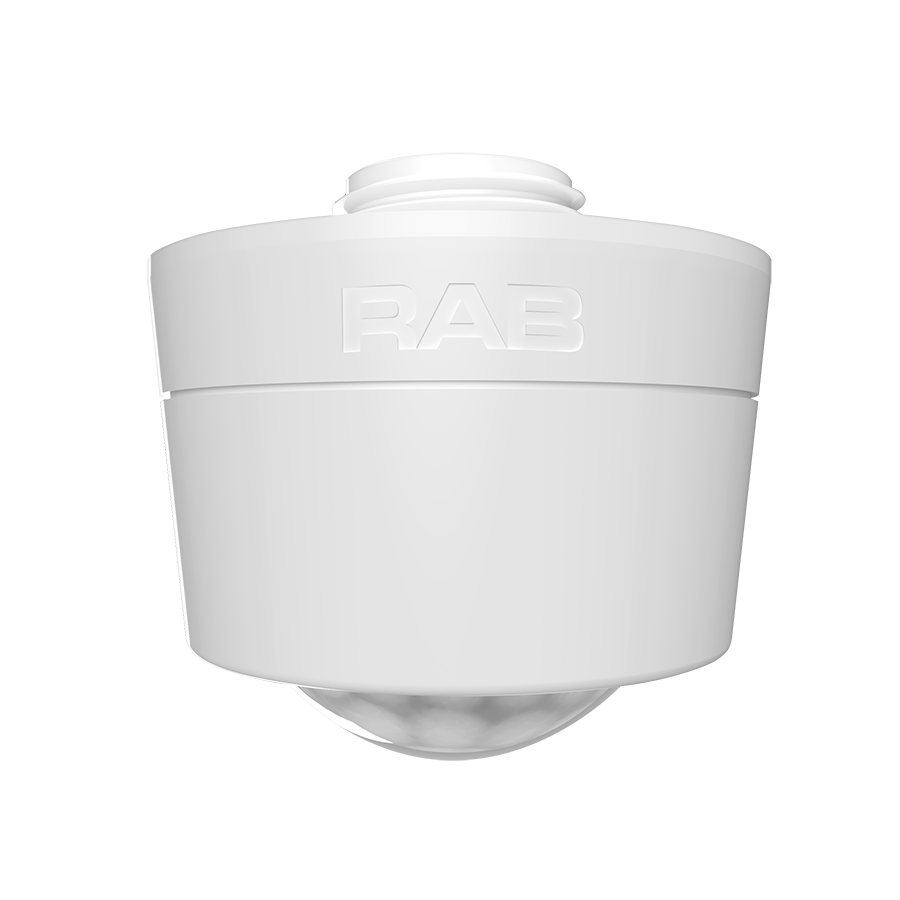

Rab Lighting PIR40/LCB LC Blue high ceiling low-voltage luminaire controller 12V (40 ft)

Brand: RAB LIGHTING
SKU: PIR40/LCB
Availability: Out Of Stock
$110.47
$110.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

RAB Lighting PIR40/LCB is a low-voltage LC Blue luminaire controller with integrated passive infrared motion and daylight sensing for high-ceiling applications. It connects directly to the Lightcloud Blue mobile app via Bluetooth Mesh to enable switching and 0-10V dimming of compatible LED fixtures. The device is rated IP66 for indoor or outdoor use, supports up to 40 ft mounting height, and offers adjustable sensor settings through the app.

  • Integrated PIR motion sensor and daylight (photocell) sensing with adjustable settings via the Lightcloud Blue app
  • Direct Bluetooth Mesh connection to Lightcloud Blue for switching and 0-10V dimming of compatible LED fixtures (no gateway required)
  • 12 V input, IP66 enclosure, detection up to 40 ft diameter when mounted at 40 ft; operating temperature -4°F to 140°F

Product Highlights

Low-voltage 12V LC Blue luminaire controller with PIR and daylight sensing, Bluetooth Mesh control, IP66, 40 ft mounting/detection, adjustable app settings

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: PIR40/LCB
Technical Specifications
Brand
RAB Lighting
Manufacturer Part Number
PIR40/LCB
Model
PIR40/LCB
Product Type
Low voltage controller + sensor
Compatibility / System
Lightcloud Blue (Bluetooth Mesh)
Communication Protocol
Bluetooth Mesh
Gateway Required
No
Input Voltage
12 V
Input Current
30 mA @ 12 V
Dimmable
Yes, via Lightcloud Blue mobile app and devices (0-10V dimming)
Sensor Technology
Passive Infrared (PIR) with integrated daylight sensing (photocell)
Sensor Connection Type
Pogo pin
Max Mounting Height
40 ft
Detection Range
40 ft diameter when mounted at 40 ft
Occupied Actions
On or On at a dim level
Vacant Actions
Off or On at a dim level
Occupancy Timeout
1 minute to 240 minutes
Daylight Threshold
150 lux to 1500 lux
Sensing Type
Occupancy or Vacancy (option to disable or set as independent sensor)
Adjustable Sensor Settings
Yes, using the Lightcloud Blue mobile app
Default Sensor Settings (Uncommissioned)
Motion sensitivity: High; Brightness when triggered: 100%; Hold time: 20 minutes; Standby to dim: 20%; Standby time: 1 minute; When vacant: Off; Daylight: Disabled
Commissioned State Default
Sensor disabled until paired; once enabled: Motion sensitivity High; Brightness when triggered: Last on status; Hold time 20 minutes; Standby to dim 20%; Standby time 1 minute; When vacant Off; Daylight Disabled
Range (Indoor)
Up to 60 feet between standard building materials (up to 200 feet line of sight)
Range (Outdoor)
Up to 60 feet clear line of sight; up to 18 feet around corners
Environment / IP Rating
IP66; suitable for indoor and outdoor use in dry, damp, or wet environments
Enclosure Material
Plastic
Shape
Round
Certifications
FCC Part 15 compliant; RoHS-compliant components
California CEC Status
Lawful for Sales in California
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
Compatible Accessories
RAAS (Right angle arm support), RAASB (Right angle arm support)
Catalog Number
PIR40/LCB
UPC
192552014151
GTIN
00192552014151
