Product Description

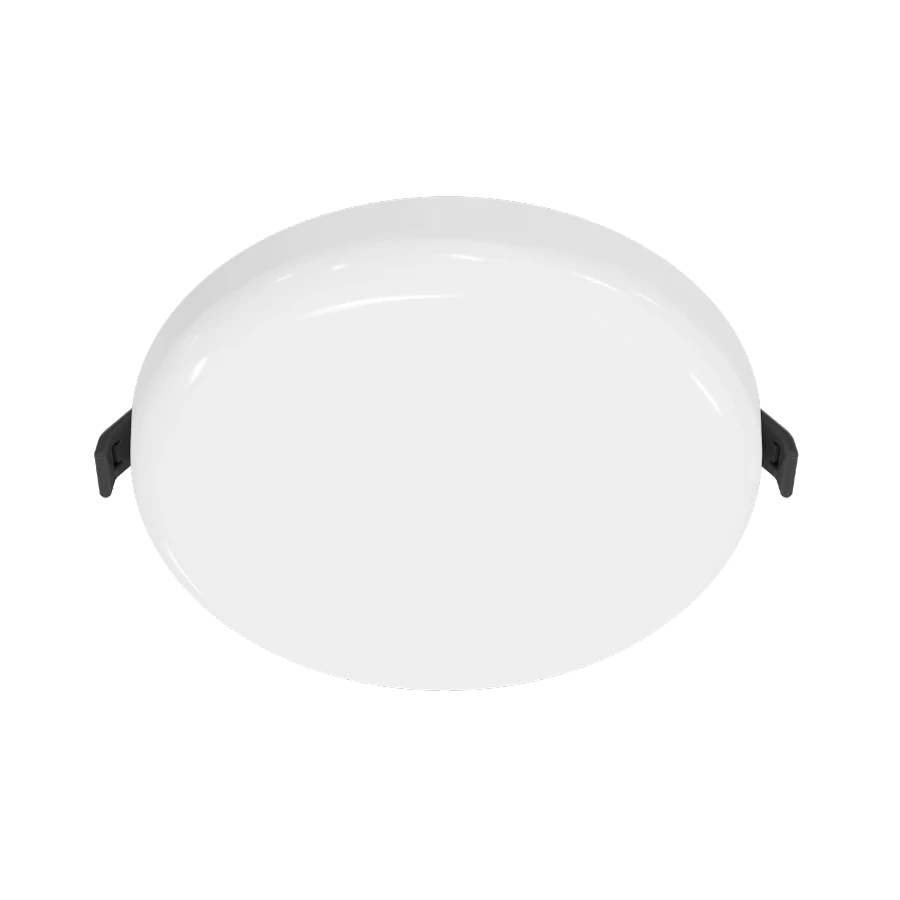

The RAB LIGHTING ORB6 is a round, canless LED downlight that measures six inches in diameter. This unit operates at thirteen watts and provides 180 degrees of diffused light. It features a field-adjustable color temperature, set using a dip switch, making it suitable for various environments.
- Compatible with dimming systems, allowing brightness adjustment down to ten percent.
- IC rated for direct contact with insulation, enhancing installation versatility.
- Designed for wet locations, expanding application possibilities.
Product Highlights
The ORB6 provides a flexible lighting solution with easy installation options.
Product Information
Standard Information
-
Brand: RAB LIGHTING
-
Manufacturer Part Number: ORB6
Technical Specifications
-
Product Type: Downlight
-
Shape: Round
-
Size: Six inches
-
Wattage: Thirteen Watts
-
Incandescent Equivalent: Seventy-five Watts Halogen
-
Input Voltage: One hundred twenty volts
-
Operating Frequency: Sixty hertz
-
Input Current @ 120V: One hundred eighteen milliamps
-
Color Temperature: Field adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K
-
Lumen Output: One thousand one hundred lumens
-
Efficacy: Eighty-five lumens per watt
-
Color Accuracy (CRI): Ninety plus
-
L70 Lifespan: Fifty thousand hours
-
Beam Angle: One hundred ten degrees
-
Dimmable: Yes, down to ten percent
-
Power Factor: Greater than 0.9
-
Total Harmonic Distortion: Less than twenty percent
-
Flicker: Less than thirty percent
-
Operating Temperature: Negative four degrees Fahrenheit to one hundred four degrees Fahrenheit
-
Enclosure Material: Plastic
-
Lens Material: Polycarbonate
-
Lens Finish: Frosted
-
Mounting: Recessed
-
Finish: White
-
Location Rating: Damp
-
IC Rated: Yes
-
UL Listed: Yes
-
RoHS: Yes
-
FCC: Yes
-
Title 24 Compliant: Yes
-
Air Tight: Yes
