Rab Lighting ORB4 Orb4 9W (4-inch)

Brand: RAB LIGHTING
SKU: ORB4
Availability: In Stock

Ships same day if ordered by 12 pm
$31.99
$31.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

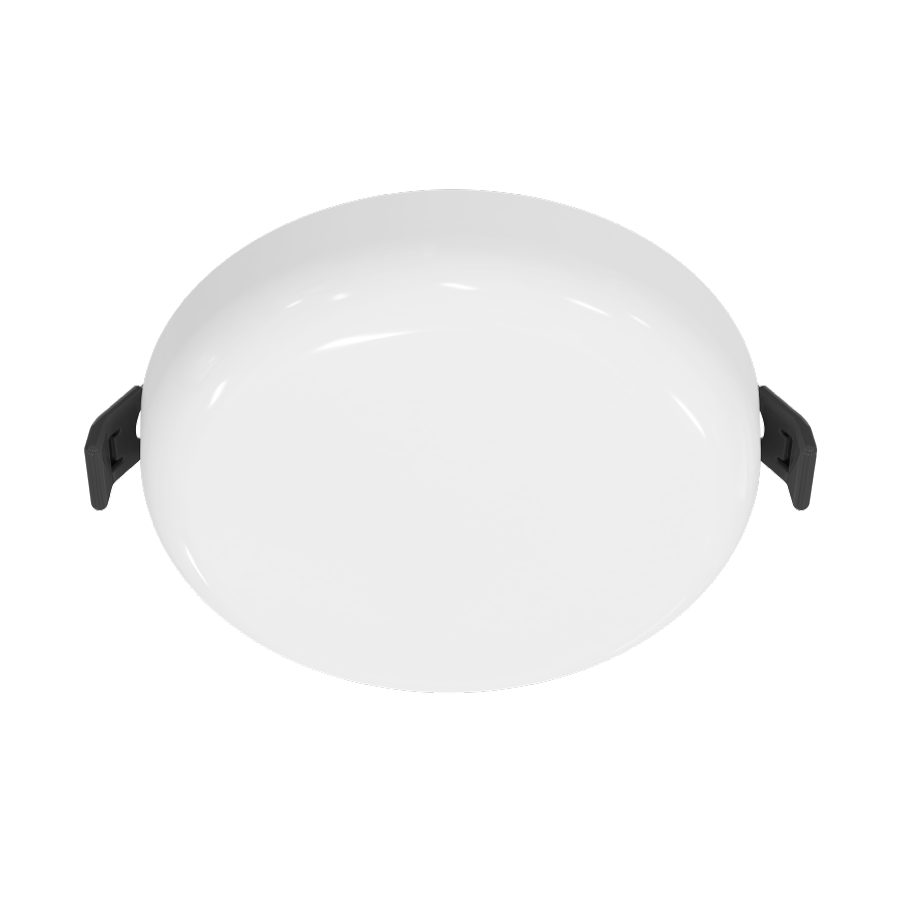

Rab Lighting ORB4 is a 4-inch canless frameless recessed downlight (MPN ORB4) that delivers 9W of LED power through a fully luminous 180° polycarbonate diffuser. It offers field-adjustable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K), a remote 120V constant-current driver, dimming to 10% on compatible TRIAC/ELV controls, 90 CRI, 745–828 lumens depending on CCT, IC rated and air tight, and a 50,000-hour L70 life.

  • 9W fully luminous 180° canless downlight with polycarbonate frosted diffuser; lumen output 745–828 lm by CCT
  • Field-adjustable CCT: 2700K/3000K/3500K/4000K/5000K; 90 CRI; R9 > 50; color consistency <4-step (2700K/5000K) and <7-step (3000K/3500K/4000K)
  • Remote constant-current Class 2 driver for 120V 60Hz (input current ~82 mA), dimmable to 10% on compatible TRIAC/ELV dimmers; IC rated and certified air tight; UL listed for wet locations

Product Highlights

4-inch 9W fully luminous canless downlight, field-adjustable 2700–5000K, 90 CRI, 745–828 lm, dimmable to 10%, IC rated, UL wet-listed

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: ORB4
  • Country of Origin: Cambodia
Technical Specifications
Brand
Rab Lighting
Model/MPN
ORB4
Product Type
Fully luminous canless frameless recessed downlight
Size
4 inch
Wattage
9W
Wattage Equivalent
40W incandescent
Lumens
745 lm @ 2700K; 780 lm @ 3000K; 817 lm @ 3500K; 828 lm @ 4000K; 817 lm @ 5000K
Efficacy
83 lm/W @ 2700K; 88 lm/W @ 3000K; 93 lm/W @ 3500K; 94 lm/W @ 4000K; 91 lm/W @ 5000K
Color Temperature
Field-adjustable: 2700K / 3000K / 3500K / 4000K / 5000K
Color Accuracy (CRI)
90 CRI
R9 Value
>50
Color Consistency
<4-step (2700K & 5000K); <7-step (3000K/3500K/4000K) MacAdam Ellipse
Color Stability
Warrantied to shift no more than 200K over 5 years
Beam Angle
110° (fully luminous 180° distribution)
Lens
Polycarbonate frosted light diffuser
Shape
Round
Trim Style
Smooth
Enclosure Material
Plastic
Mounting Type
Recessed / surface mount (canless)
Driver
Remote constant-current, Class 2, 120V 60Hz (4-1/2" knockouts)
Input Voltage
120V
Input Current
82 mA @ 120V
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimmers
Power Factor
>=0.9
Total Harmonic Distortion (THD)
<=20%
Flicker
<=30%
L70 Lifespan
50,000 hours (IES LM-70 results)
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Air Tight
Certified air tight per ASTM-E283
IC Rated
Yes (suitable for direct contact with insulation; not for spray foam contact)
Listings
UL Listed; suitable for wet locations; cULus/damp-location listings referenced
Certification Model Number
DLS0182(ORB4)
California Title 24 JA8
Can be used to conform with Title 24 Part 6
RoHS / FCC
RoHS compliant; complies with Part 15 of the FCC Rules
Energy Star
No
DLC Listed
No
