Rab Lighting Inc LU300 Luminator Outdoor Sensor 2 Floods 300W 120V 110 Degree

Product Description

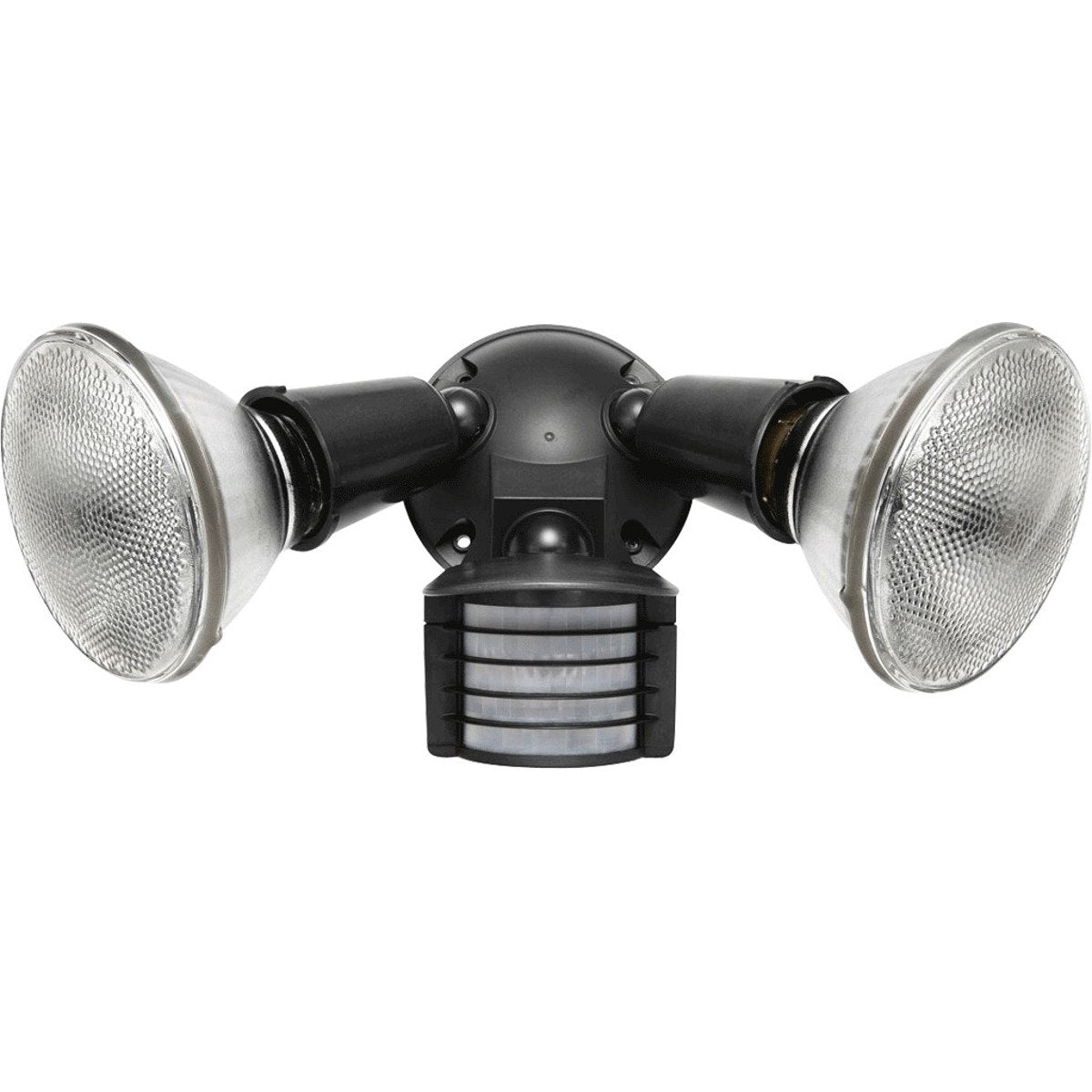

The RAB LIGHTING INC LU300 is an outdoor sensor luminator with a 110-degree sensor, designed with 2 floods, and a 300W capacity at 120V. It features a round cover. The unit has a switching capacity of 300W and includes manual override. The lens and grill are designed to be vandal resistant.

• 300 Watt switching capacity
• Manual override
• Fully adjustable positioning
• 110 degree double look down lens

Product Highlights

This luminator is designed for outdoor use, offering both security and convenience with its motion-sensing capabilities and durable construction.

Product Information

Standard Information

• Brand: RAB LIGHTING INC
• Manufacturer Part Number: LU300
• Country of Origin: Malaysia

Technical Specifications

• Catalog Number: LU300
• Manufacturer: RAB Lighting
• Brand: RAB Lighting Inc
• Country of Origin: Malaysia
• Made in USA: No
• Application: OUTDOOR
• Color: BRONZE
• Mounting: Ceiling
• UPC: 019813730004
• GTIN: 00019813730004
• Item Type: SENSOR
• Compliance: UL Listed Suitable for wet locations
• Voltage: 120V AC 60Hz
• Power Consumption: 1W
• Surge Protection: Withstands up to 3000 volts
• Switching Capacity: 300W incandescent @ 120 volts, 2.5 amps.
• Time Adjustment: 8 seconds to 10 minutes
• Photo Control: Deactivates lights during daylight.
• Detector Sensitivity: Adjustable from 100% to 50%
• Auto Test Logic: 5 minutes of test time when powered. Resets to auto mode without adjustment.
• Sensor Housing: Made of tough, corrosion resistant polycarbonate
• Detection: 110° view
• Floodlights: Made of tough, corrosion-resistant polycarbonate. Accepts PAR-38 lamps, medium base, 150W max. Lamps not included.
• MPN: LU300
• Power Source: Hardwired
• Sensor Type: Motion
• Finish: Bronze
• Lighting Technology: LED
• Material: Bronze
• Number of Lights: 2
• Installation Area: Outdoor
• Item Height: 6.00
• Item Diameter: 4.50
• Length: 6.13
• UNSPSC: 39111600
