Rab Lighting Inc LOS2500/120 Indoor Motion Sensors 2000 W 120V

Product Description

The RAB LIGHTING INC LOS2500/120 indoor motion sensor operates at 120V. This ceiling sensor features three detectors for triple overlapping coverage to catch small movements. It has a maximum coverage of 360 degrees or hallway models. The relay and sensor all-in-one unit reduces installation costs and can be wired in parallel. It is compatible with program start ballasts.

• LED testing and operation Indicator
• Maximum coverage - 360 or hallway models
• Relay and sensor all in one unit reduces installation costs

Product Highlights

The LOS2500/120 is an indoor motion sensor with 360 degree coverage, easy installation, and program start ballast compatibility.

Product Information

Standard Information

• Brand: RAB LIGHTING INC
• Manufacturer Part Number: LOS2500/120
• Country of Origin: China

Technical Specifications

• Catalog Number: LOS2500/120
• Manufacturer: RAB Lighting
• Brand: RAB Lighting Inc
• Country of Origin: China
• Application: OUTDOOR
• Mounting: Ceiling Mount
• UPC: 019813742601
• GTIN: 00019813742601
• Item Type: SENSOR
• Voltage Rating: 120
• Wattage: 2000 W

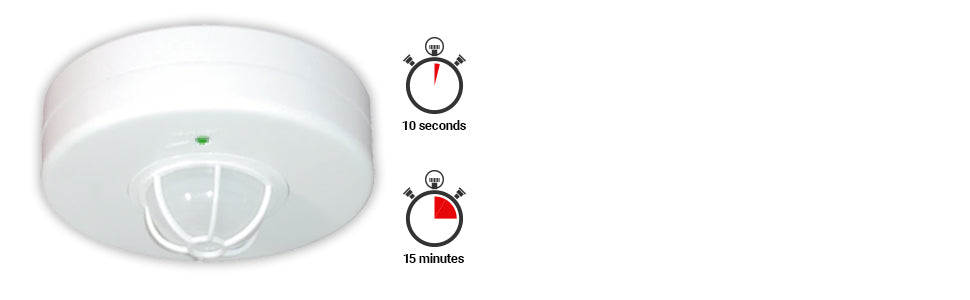

• Time Delay: 10 seconds to 15 minutes
• Adjustments: Photo Time Sensitivity

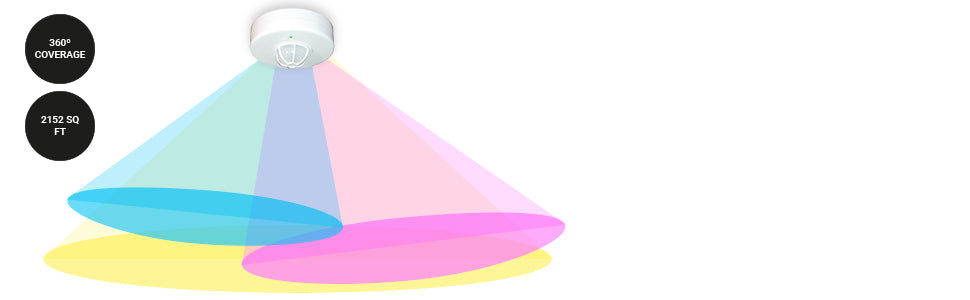

• Detection: 360° view Super Ceiling Sensor
• Coverage Area: 2152sf @ 9'
• Incandescent Watts Switched: 2000W
• Fluorescent Watts Switched: 2000W
• Ratings Amps Horsepower: 16 amps 6.7 horsepower.
• Power Consumption: Negligible
• Manual Switch: None
• Power Source: Corded Electric
• Maximum Range: 6 Meters
• Compatible Devices: Lighting Controls, Security Systems
• Recommended Uses For Product: Walkway
• Part Number: LOS2500/120
• Item model number: LOS2500/120
• Style: Rustic
• Finish: White
• Material: Aluminum
• Item Package Quantity: 1
• Type of Bulb: LED
• Coverage: 2,152 sq. ft.
• Included Components: LOS2500/120
• Batteries Included?: No
• Batteries Required?: No
• UL Listed: Yes
• Amperage: 16 Amps
• Beam Angle: 360 Degree
• HP Rating: 6.7 HP
• Load Type: FL/Incandescent
• Switch Rating: 2000W Incan. @120V
