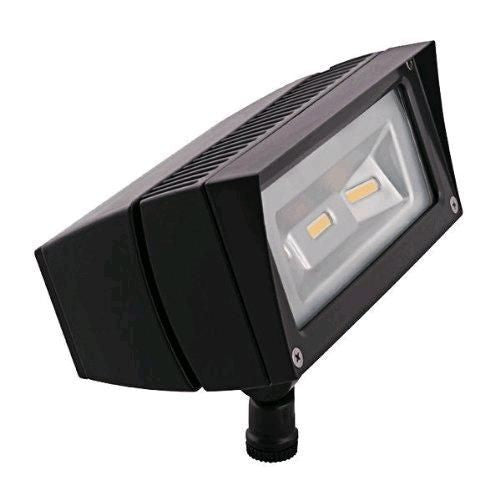

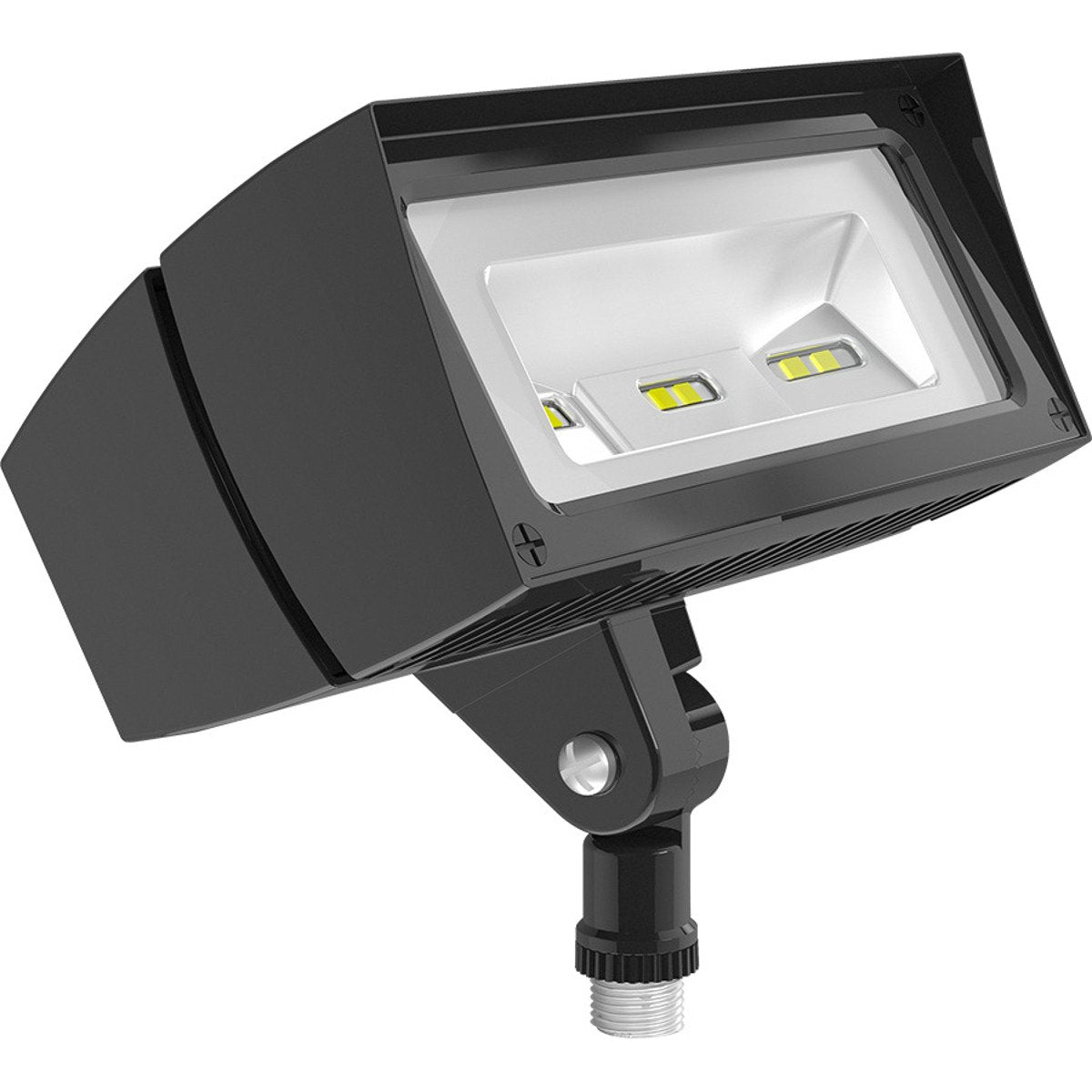

Rab Lighting Inc FFLED18 Floodlights 2429 Lumens 18W 5000K

Product Description

The RAB LIGHTING INC FFLED18 floodlight provides 2429 lumens at 18W and 5000K. This floodlight features an ultra-efficient LED and optical design, replacing 70W MH floodlights. It has an "Air-Flow" technology heatsink and a 100,000-hour life based on LM-80 results and TM-21 calculations. NEMA type is 7H x 6V.

• Ultra-efficient LED and optical design
• Replaces 70W MH floodlights
• 100,000-hour life based on LM-80 results and TM-21 calculations

Product Highlights

This LED floodlight offers long-lasting, efficient lighting for outdoor applications, with a robust design and superior cooling technology.

Product Information

Standard Information

• Brand: RAB LIGHTING INC
• Manufacturer Part Number: FFLED18
• Country of Origin: China

Technical Specifications

• Catalog Number: FFLED18
• Manufacturer: RAB Lighting
• Brand: RAB Lighting Inc
• Country of Origin: China
• Made in USA: No
• Light Technology: LED
• UPC: 019813176048
• GTIN: 00019813176048
• Watts: 18W
• Color Temperature: 5000K
• Lumens: 2,429 lm
• Efficacy: 123.3 lm/W
• Color Accuracy: 71 CRI
• L70 Lifespan: 100,000 Hours
• Type: Constant Current
• 120V: 0.2A
• 208V: 0.15A
• 240V: 0.13A
• 277V: 0.11A
• Input Watts: 19.7W
• UL Listed: Suitable for wet locations. Suitable for ground mounting.
• IP Rating: Ingress protection rating of IP66 for dust and water
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• DLC Listed: This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
• DLC Product Code: S-ZL2GY0
• Driver: Constant Current, Class 2, 120-277V, 50 - 60 Hz, 120V: 0.2A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A
• THD: 11.89% at 120V, 17.78% at 277V
• Power Factor: 98.7% at 120V, 91% at 277V
• Surge Protection: 6 kV
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Equivalent to 70W Metal Halide
• NEMA Type: NEMA Beam Spread 7H x 6V
• Airflow: Airflow technology heat sink for superior cooling
• Ambient Temperature: 104 degrees F
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Thermal Management Housing: Die-cast aluminum housing, lens frame and mounting arm
• Reflector: Semi-specular anodized aluminum
• Gaskets: High-temperature silicone gaskets
• Finish: Bronze
• Green Technology: Mercury and UV free. RoHS-compliant components.
• LEDs: Multi-chip, high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
• Mounting: Heavy Duty Swivel Arm with O-Ring Seal and Stainless Steel Screw
• Applications: Outdoor
• Average Rated Life: 100,000 hr
• Color Rendering Index: 71
• Correlated Color Temp: 5,000 K
• Input Wattage: 19.7
• Lamp Type: LED
• Minimum Starting Temp: -40 degrees C
• Voltage: 100-240 Volt
• Wattage: 18 Watt
• Housing Material: Die-Cast Aluminum
• Enclosure: IP65
• Lamp Wattage: 18 W
• Lamp/Ballast Voltage: 120 to 277 Volt AC 50/60 Hertz
• Distribution/Beam Spread: NEMA 7 x 6, Horizontal/Vertical Lamp
• Housing Finish: Bronze
• Amperage Rating: 0.2/0.15/0.13/0.11 A
• Average Life: 100000 hr
• Enclosure Type: NEMA 7H x 6V/IP65
• Fixture Wattage: 22 W
• Voltage Rating: 100 to 240/277 VAC
• Application: Wet Locations, Building Facade Lighting, Sign Lighting, Led Landscape Lighting and Instant-on Security Lighting
• UNSPSC: 39111611
