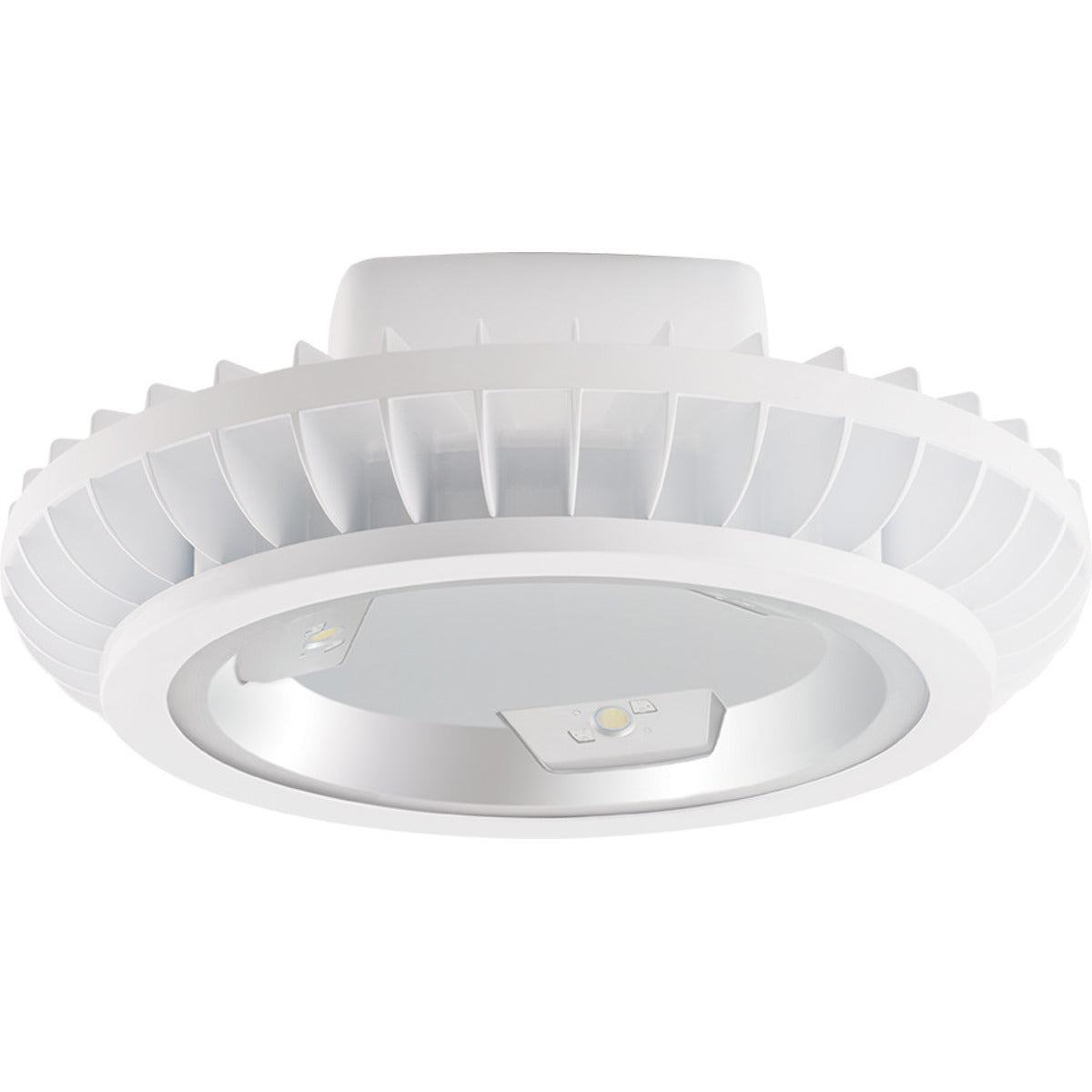

Rab Lighting Inc BAYLED104W High Bays 14942 Lumens Bayled 104W

Product Description

The RAB LIGHTING INC BAYLED104W is a high bay lighting fixture with 14942 lumens and 104W wattage, designed for indoor applications. It features a 100,000-hour lifespan and is suitable for damp locations with cord and hook, and wet locations with 3/4" pendant stem. The LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period.

• High output, high efficiency LED high bay
• Bi-level and dimming models available when installed with pendant by others
• Polyshield and wire guard accessories available for additional protection

Product Highlights

This high bay lighting fixture is designed for indoor applications, offering high efficiency and a long lifespan. It is suitable for damp and wet locations.

Product Information

Standard Information

• Brand: RAB LIGHTING INC
• Manufacturer Part Number: BAYLED104W
• Country of Origin: United States

Technical Specifications

• Catalog Number: BAYLED104W
• Manufacturer: RAB Lighting
• Brand: RAB Lighting Inc
• Country of Origin: United States
• Made in USA: Yes
• Application: INDOOR
• Lumens: 14942
• UPC: 019813239927
• GTIN: 00019813239927
• Item Type: BAY Lighting
• Voltage Rating: 120/277
• Wattage: 104 W
• Watts: 104W
• Color Temp: 5100K (Cool)
• Efficacy: 123.3 lm/W
• Color Accuracy: 72 CRI
• L70 Lifespan: 100,000 Hours
• Type: Constant Current
• 120V: 1.03A
• 208V: 0.65A
• 240V: 0.56A
• 277V: 0.49A
• Input Watts: 121.2W
• UL Listed: Suitable for damp locations with cord and hook. Suitable for wet locations with 3/4" pendant stem.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
• DLC Product Code: POLL8UY9
• LEDs: Multi-chip, high-output, long-life LEDs
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: Replaces 320W Metal Halide
• Ambient Temperature: Suitable for use in up to 131°F (55°C)
• Thermal Management: Superior heat sinking with external Air-Flow fins
• Housing: Precision die-cast aluminum housing and door frame with 3-foot 600V power cord
• Lens: Tempered glass
• Reflector: Specular vacuum metallized polycarbonate
• Gaskets: High-temperature silicone
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Heavy-duty 3/4" NPS hook and 3-foot safety chain; is also 3/4" pendant mount-capable (pendant by others)
• Recommended Mounting Height: 30 ft
• Drivers: Constant Current, 800mA, Class 2 with 6 kV surge protection, 100-277VAC, 50/60 Hz
• THD: 7.87% at 120V, 10.18% at 277V
• Power Factor: 99.5% at 120V, 93.4% at 277V
• Product Category: Hi-Bay - UFO
• Input Voltage: 120-277V
• CRI: 80+
• Operating Temp: 131 F Max
• Special Features: Wet Location Rated
• Diameter: 12.5"
• Height: 9.38"
• Lumens Per Watt: 143.67
• Rated Hours: 100,000 Hours
• Equivalent: 320W HID
