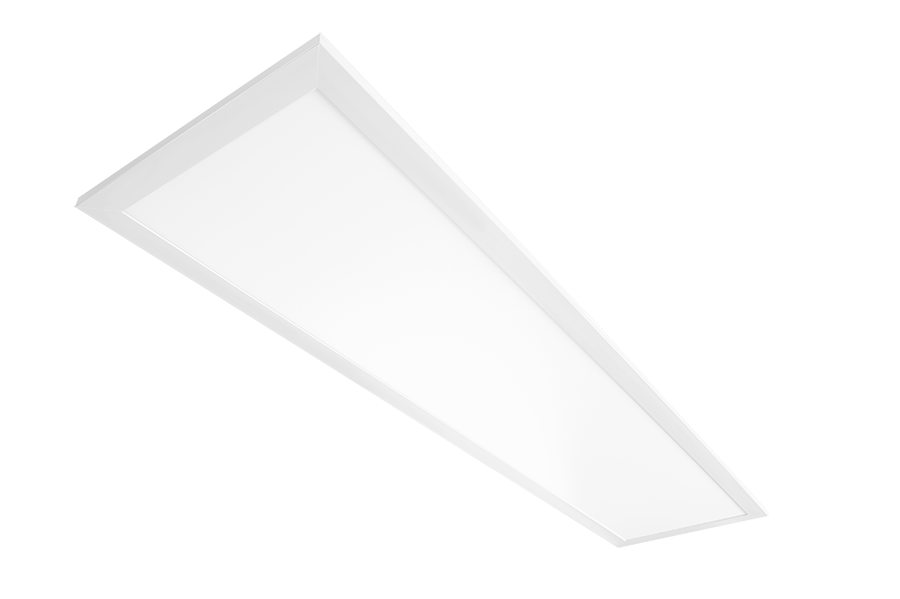

Rab Lighting EZPAN1X4-40N/D10 Edgelit Panel 40W (1x4) Recessed Dimmable

Brand: RAB LIGHTING
SKU: EZPAN1X4-40N/D10
Availability: Out Of Stock
$126.91
$126.91
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

RAB Lighting EZPAN1X4-40N/D10 is an edgelit 1x4 LED panel that delivers 40 W of input power with a Class 2 constant current 0-10V dimmable driver and operates on 120 to 277 V AC. The fixture provides uniform illumination through a frosted polystyrene lens, has an L70 life of 60,000 hours, and is rated for damp locations and a wide ambient temperature range.

  • 40 W driver input power (40.3 W) delivering 4,402 lumens with 109.2 lm/W efficacy and 4000 K color temperature
  • Class 2 constant current driver with 0-10V dimming; operates 120–277 V AC; constant current ratings vary by voltage
  • Lightweight aluminum housing with steel pan/junction box, frosted polystyrene lens, recessed or surface mounting, ambient rating -22 to 122 F

Product Highlights

1x4 edgelit recessed LED panel, 40 W, 4000 K, 4,402 lumens, 0-10V dimmable, suitable for damp locations

Product Information

Standard Information

  • Brand: RAB LIGHTING
  • Manufacturer Part Number: EZPAN1X4-40N/D10
Technical Specifications
Brand
RAB Lighting
Manufacturer
RAB Lighting
MPN
EZPAN1X4-40N/D10
Model
EZPAN1X4-40N/D10
Lamp Type
LED
Lamp Wattage
40 Watt (driver input power 40.3 Watt)
Driver Input Power
40.3 W
Input Voltage
120 to 277 Volt AC, 50/60 Hz
Power Consumption
40 Watt
Lumens
4402 lumen
Efficacy
109.2 lm/W
Color Temperature
4000 K (neutral)
Color Rendering Index (CRI)
82
L70 Life
60000 hours
Driver Type
Class 2 constant current
Dimming
0-10V dimming (0 to 10 VDC)
Constant Current Ratings
0.33–0.35 A (varies by voltage: e.g., 0.35 A @120V; 0.21 A @208V; 0.18 A @240V; 0.16–0.19 A @277V)
Power Factor
Approximately 99.1% at 120V, 95.4% at 277V
Total Harmonic Distortion (THD)
8.22% (120V) / 15.33% (277V)
Lens Type
Frosted polystyrene
Housing Material
Lightweight aluminum housing; steel pan/junction box
Mounting Type
Recessed ceiling (also surface mountable)

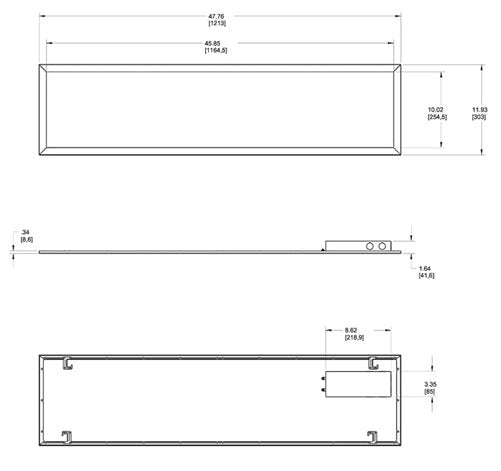

Nominal Size
1 x 4 foot
Length
47.76 Inch
Width
11.93 Inch
Height
0.34 Inch
Ambient Temperature Rating
-22 to 122 F
Application
Damp location
Standards/Certifications
CCEA compliant, IESNA LM-79/80, UL listed, DLC
UPC
019813667379
GTIN
019813667379
Catalog Description
PANELS & TROFFERS 4402 LUMENS EZPAN 1X4 40W 4000K 0-10V DIMMING
