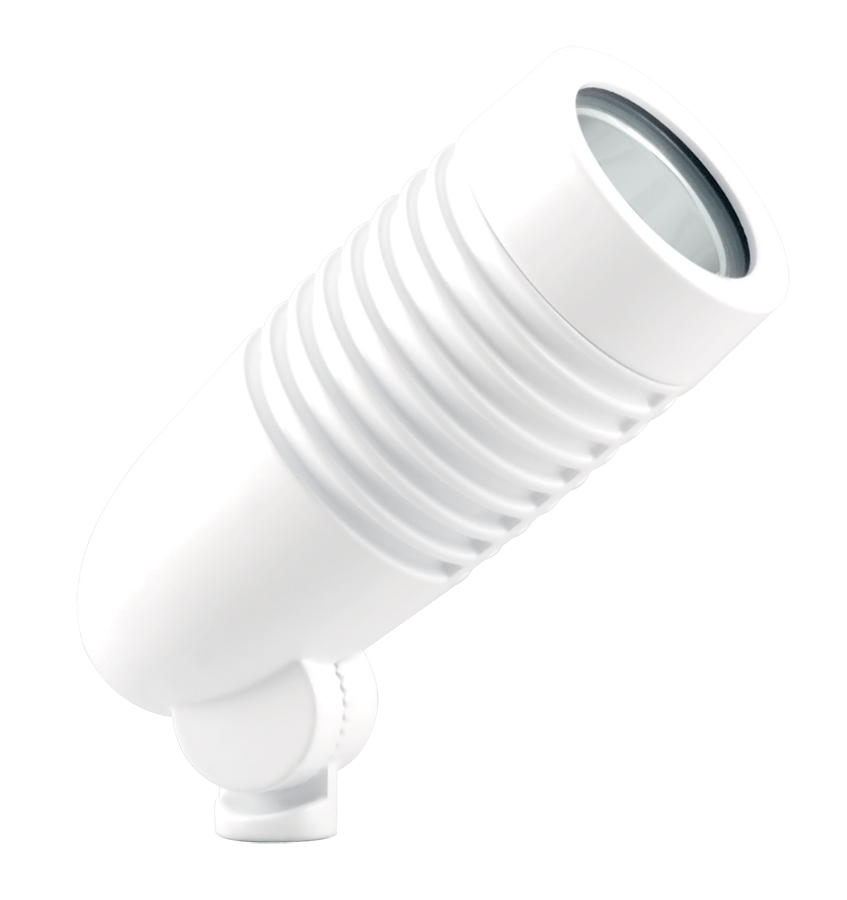

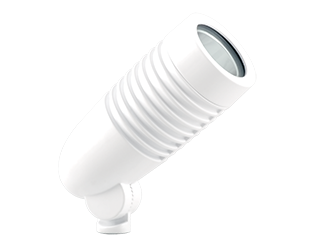

Rab LFLED5YW Lflood 5W LED Landscape Flood

Product Description

The RAB LFLED5YW is a compact 5W LED floodlight suited for landscape lighting. Its microprismatic lens delivers even illumination, enhancing pathways and gardens. Designed for durability, this UL Listed light withstands wet conditions and offers a 100,000-hour lifespan, tested to LM-80 and TM-21 standards.

• Micro prismatic diffusion lens for even light distribution
• 4H x 4V NEMA type with 44 Degree Beam Angle
• 100,000 hour life based on LM-80 tests

Product Highlights

This LED floodlight provides brilliant, reliable outdoor lighting, reducing energy use and replacement costs with its long-lasting design.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: LFLED5YW
• Country of Origin: CN

Technical Specifications

• Manufacturer: RAB Lighting
• Part Number: RAB LIGHTING LFLED5YW
• Item model number: LFLED5YW
• Power Source: Corded Electric
• Voltage: 120 Volts
• Wattage: 5 W
• Item Package Quantity: 1
• Type of Bulb: LED
• Mounting Type: Arm
• Batteries Included?: No
• Batteries Required?: No
• Lighting Technology: LED
• UL: Listed
• Wet Locations: Yes
• CRI: 86
• Color Temperature: 3000 Kelvin
• Life Hours: 100,000
• Fixture Type: Landscape
• Lumens: 208
• Beam Angle: 44 Degree
• Halogen Equivalent: 35 Watt
• Housing: Die Cast Aluminum
• Start Temp. (Min): -40 Deg. F
• Length: 6 in.
• Diameter: 2.38 in.
• Warranty: 5-Year Limited
• Efficacy: 40.8 lm/W
• L70 Lifespan: 100,000 Hours
• 120V: 0.1A
• 208V: 0.06A
• 240V: 0.05A
• Input Watts: 5.1W
• NEMA Type: NEMA Beam Spread 4H x 4V
• LED: 5 Watt high output, long-life LED
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
• Lens: Microprismatic diffusion lens for smooth and even light distribution
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Housing Material: Precision die-cast aluminum housing, hood and mounting arm
• Gaskets: High-temperature Silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Driver: Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
• Amperage Rating: 0.1/0.06/0.05 A
• Application: OUTDOOR
• Average Life: 100000 hr
• Ballast Type: Class 2 Constant Current
• Catalog Number: LFLED5YW
• Color Rendering Index [CRI]: 86
• Dimensions: 2-3/8 in Dia x 6 in L
• Enclosure Type: NEMA 4H x 4V
• Fixture Material: Die Cast Aluminum
• Height: 1.60 in
• Height [Metric]: 4.0640 cm
• Lamp Wattage: 5 W
• Length [Metric]: 18.2880 cm
• Lens Type: Microprismatic Diffusion
• Light Color: Warm White
• Series: LFLED
• Standards: UL Listed
• Type: FLOODLIGHT
• Width: 2.70 in
• Width [Metric]: 6.8580 cm
• Fixture Wattage: 5 W
• Lamp Type: LED
• Voltage Rating: 100/120/208/240 VAC
• Color Temperature (Kelvin): 3000
• Housing Color: White
• Rated Lamp Life: 100000
